Durable latching switch designed for marine applications with illuminated button.

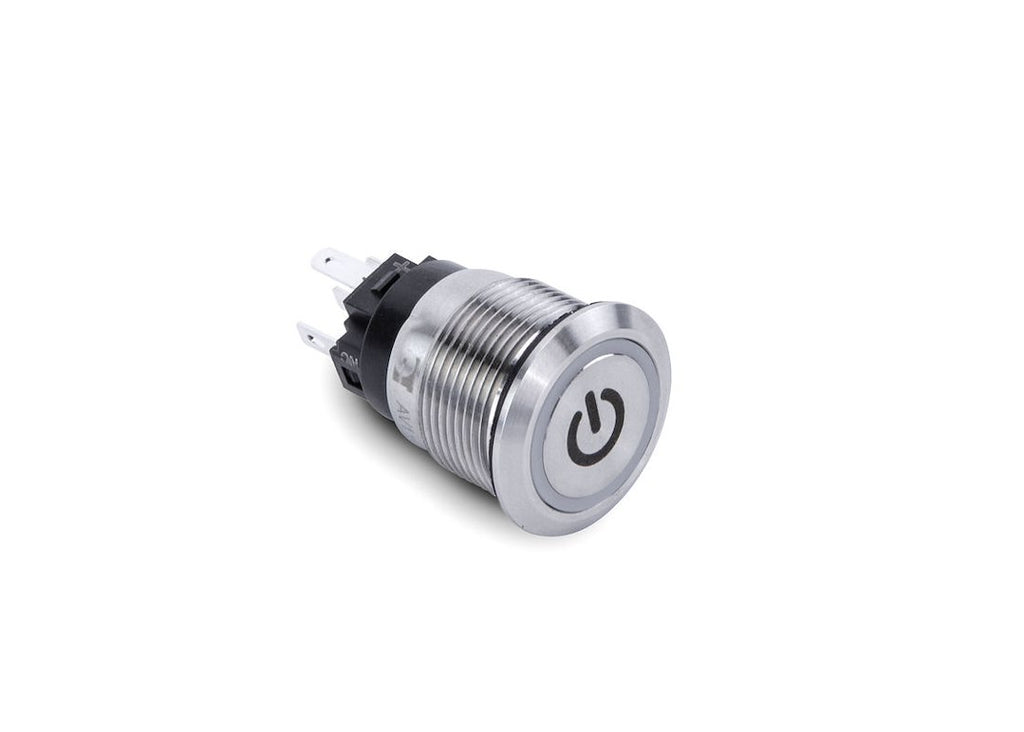

The Sierra Marine Push Button Switch is engineered to meet the demands of high horsepower marine engines while withstanding harsh environmental conditions. This latching on/off switch features a sleek stainless steel design that not only enhances durability but also provides a modern aesthetic for any marine panel. With a 10 Amp capacity and 12 Volt DC operation, this switch is suitable for various marine applications, ensuring reliable performance.
Designed for ease of installation, the switch includes quick connect tab terminals that facilitate straightforward wiring and daisy chaining. It is sealed to IP67 standards, making it weatherproof and suitable for above-panel components. Additionally, the switch is UL1500 ignition protected, ensuring safety and compliance in marine environments. The green illuminated button provides visibility in low-light conditions, enhancing usability on the water.
Features
- Sleek, Stainless Steel Design
- Quick Connect Tab Terminals For Easy To Install And Daisy Chaining
- Sealed To IP67 For Above-Panel Components
- UL1500 Ignition Protection
Specifications
- Manufacturer: Sierra Marine
- Manufacturer Part Number: AV10060G
- Circuit Activation: Latching
- Material: Stainless Steel
- Amperage: 10 Amp
- Terminal Type: Blade
- Mount Location: Panel
- Mount Type: Flush Mount
- Includes Relay: No
- Includes Wiring: No
- Weatherproof Sealed: Yes
- Lighted: Yes
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
