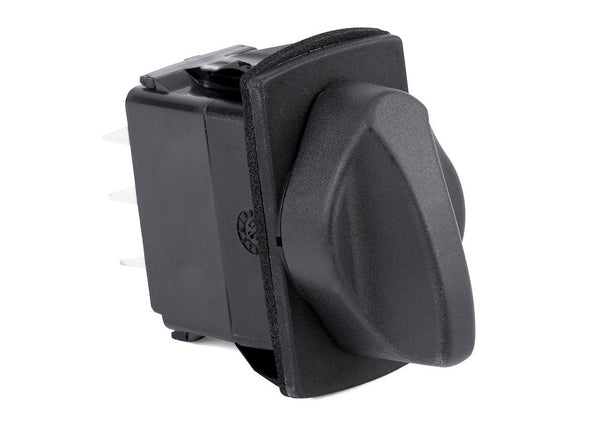

Sierra Marine Multi Purpose Switch (MPN: RS20060)

Durable rotary switch designed for marine applications with reliable performance.

The Sierra Marine Multi Purpose Switch is engineered to meet the demands of high horsepower engines while withstanding the harsh conditions of marine environments. This switch features a progressive rotary design with Off-On-On positions, ensuring precise control and functionality. The secondary cam provides definitive detent positions, enhancing user experience and operational reliability.

Designed to fit in standard panel openings, this switch incorporates a patented mechanism that translates rotary motion to linear action, facilitating seamless operation. With an IP67 sealing protection rating, it ensures that above-panel components are safeguarded against water and dust ingress, making it suitable for marine use.

The switch operates as a double pole double throw with a current rating of 20 amps, making it capable of handling significant electrical loads. Its non-illuminated design and black color provide a sleek appearance, while the blade terminal type allows for easy installation. Sierra Marine continues to be a trusted name in marine engine and drive parts, offering reliable solutions for boaters.

Features

• Secondary Cam Provides Definitive Detent Positions
• Fits In Industry Standard Panel Opening
• Patented Mechanism That Translates Rotary To Linear Motion
• Integrated Illumination Module Up To 3 LED’s For Effortless Installation
• IP67 Sealing Protection For Above-Panel Components

Specifications

• Manufacturer: Sierra Marine
• Manufacturer Part Number: RS20060
• Design: Rotary
• Activation: Constant
• Switch Positions: Off-On-On
• Operation: Double Pole Double Throw
• Current Rating: 20 Amp
• Number Of Switches: 1
• Color: Black
• Illumination: Non-Illuminated
• Marine: Yes
• Voltage: 12 Volt
• Mount Location: Panel Mount
• Terminal Type: Blade
• Material: Plastic
