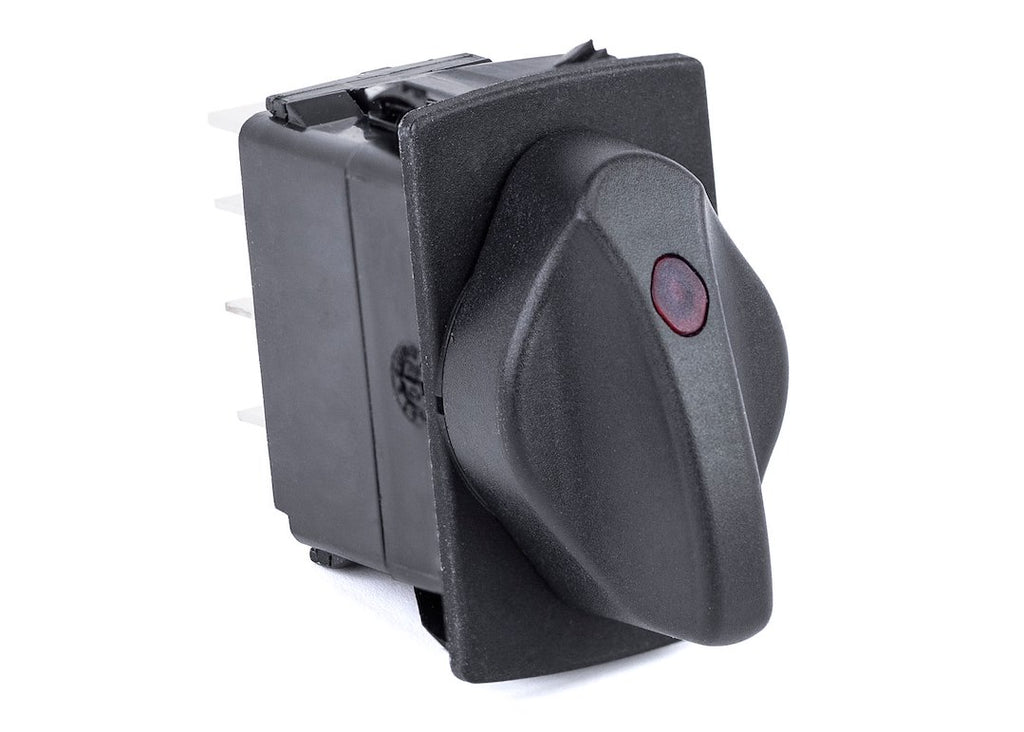

Sierra Marine Multi Purpose Rotary Switch (MPN: RS20020)

Durable On-Off-On Switch with Red Illumination for Marine Use

The Sierra Marine Multi Purpose Rotary Switch is designed to meet the rigorous demands of high horsepower marine engines while ensuring reliability in harsh environments. This switch features a patented mechanism that effectively translates rotary motion to linear motion, providing a smooth and responsive operation. With a secondary cam that offers definitive detent positions, users can expect precise control over their electrical systems.

Engineered to fit in standard panel openings, this switch is easy to install and integrates an illumination module that supports up to three LEDs, enhancing visibility in low-light conditions. The IP67 sealing protection ensures that above-panel components are safeguarded against water and dust ingress, making it suitable for marine applications.

With a current rating of 20 amps and a voltage of 12 volts, this double pole double throw switch is capable of handling various electrical loads. The sleek black design, combined with red illumination, not only provides functionality but also adds a modern touch to any marine panel.

Features

• Secondary Cam Provides Definitive Detent Positions
• Fits In Industry Standard Panel Opening
• Patented Mechanism That Translates Rotary To Linear Motion
• Integrated Illumination Module Up To 3 LED’s For Effortless Installation
• IP67 Sealing Protection For Above-Panel Components

Specifications

• Manufacturer: Sierra Marine
• Manufacturer Part Number: RS20020
• Design: Rotary
• Activation: Constant
• Switch Positions: On-Off-On
• Operation: Double Pole Double Throw
• Current Rating: 20 Amp
• Number Of Switches: 1
• Color: Black
• Illumination: Red
• Marine: Yes
• Voltage: 12 Volt
• Mount Location: Panel Mount
