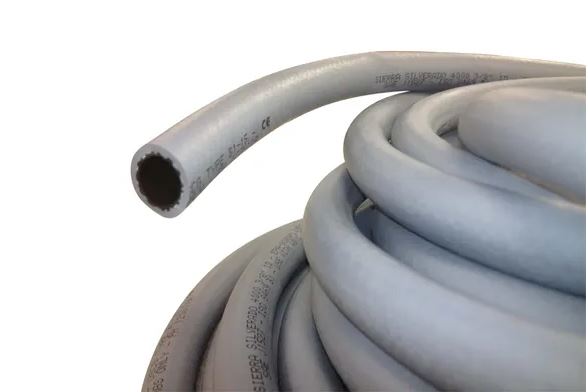

Sierra Marine Fuel Line 337 Series (MPN: 16-337-0560S)

Durable and flexible fuel line for marine applications with advanced resistance features.

The Sierra Marine Fuel Line 337 Series is engineered for use with the Silverado 4000, providing a robust solution for marine fuel delivery. This 250-foot length hose features a 5/16 inch inside diameter and a 1/2 inch outside diameter, making it suitable for various applications. Constructed with a THV500 barrier layer, polyester reinforcement, and a CPE cover, this fuel line is designed to withstand extreme environmental conditions while maintaining flexibility.

The THV barrier layer ensures excellent permeation resistance, making it compatible with ethanol-blended fuels. The polyester reinforcement enhances the strength of the hose, while the CPE cover offers superior UV and weather resistance. The gray color of the hose not only contributes to its aesthetic appeal but also helps keep the hose cooler, reducing the risk of vapor lock.

This fuel line is compliant with SAE J1527 Type B1-15 standards and meets EPA and CARB regulations, ensuring reliability and safety in marine environments. Its small outer diameter and flexibility facilitate easy clamping and installation, making it a practical choice for both new installations and replacements.

Features

• THV500 Barrier Layer, A Nitrile Jacket, Polyester Reinforcement And A CPE Cover
• Outboard Fuel Line Is Resistant To Ethanol Blended Fuels
• THV Barrier Layer To Prevent Permeation
• Polyester Reinforcement For Strength And A Weather And UV Resistant CPE Cover
• Gray Color Keeps Hose Cooler And Helps Prevent Vapor Lock
• Hose Has A Small O.D., Is Extremely Flexible And Easy To Clamp
• Can Be Used For Small Diesel Feed Line: Extremely Low Permeation: For Use In Above Deck Primer Bulb Assemblies
• Resistant To Ethanol Blend Fuels
• Meets SAE J1527 Type B1-15: EPA And CARB Certified Outboard Fuel Line

Specifications

• Manufacturer: Sierra Marine
• Manufacturer Part Number: 16-337-0560S
• Type: OE Replacement
• Length: 250 Feet
• Diameter: 5/16 Inch Inside Diameter X 1/2 Inch Outside Diameter
• Color: Gray
• Material: THV500 Barrier Layer With Polyester Reinforcement And Nitrile Jacket/ CPE Cover

Technical Documents

• Sierra_Warranty.pdf
