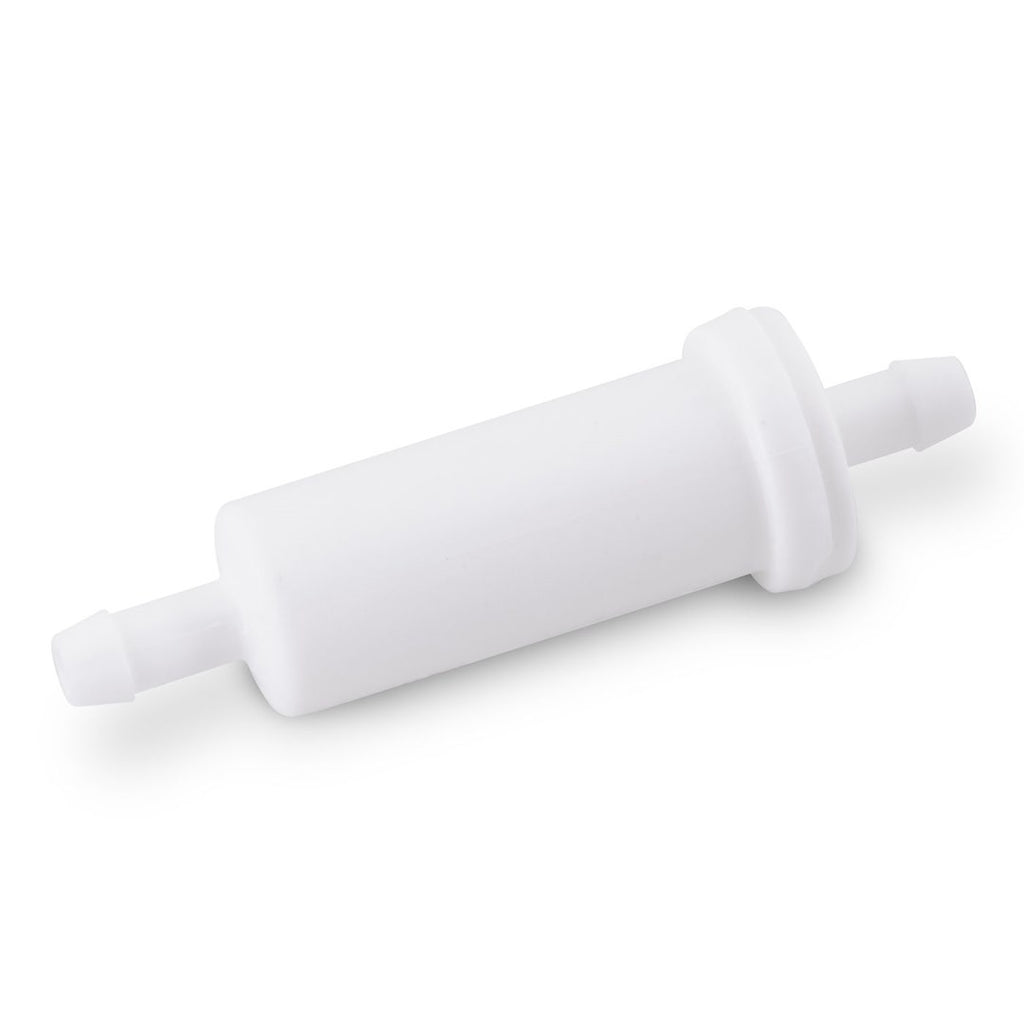

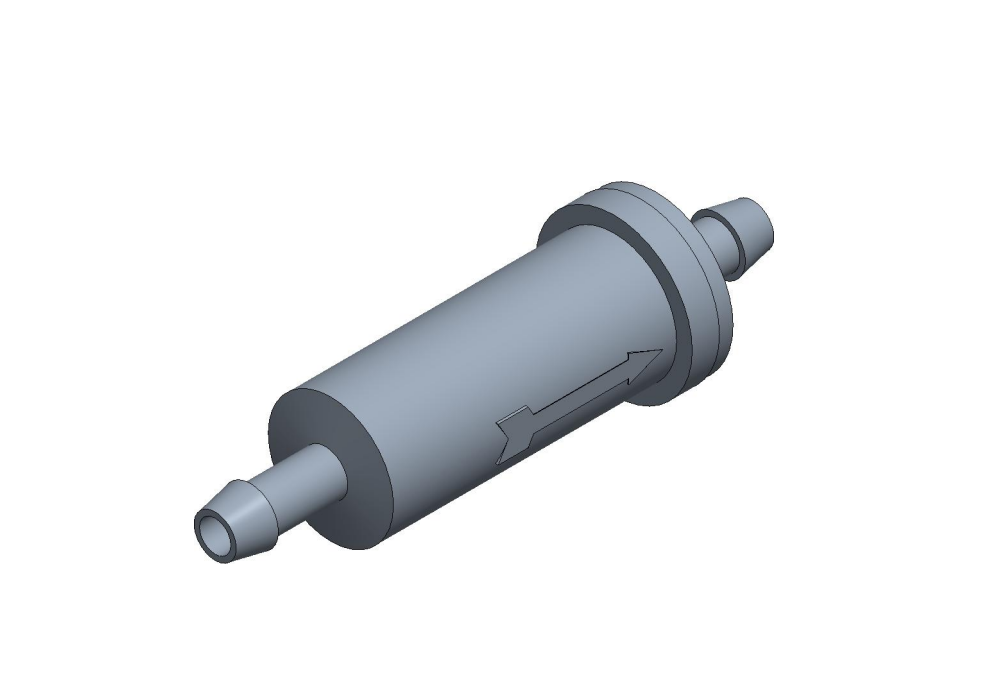

Sierra Marine Fuel Filter (MPN: 18-7830)

High-efficiency in-line fuel filter for marine engines

The Sierra Marine Fuel Filter is designed for use in various outboard and stern drive engines, including Mercury Marine, Yamaha, Volvo Penta, OMC, Johnson, and Evinrude. This in-line filter features a 10 micron element that effectively removes over 99.8 percent of emulsified water from gasoline, ensuring optimal engine performance and longevity. With a flow rate of 90 gallons per hour, it is capable of meeting the demands of high-performance motors while maintaining efficiency in fuel delivery.

Constructed with a paper element, this filter is engineered to provide over 90 percent efficiency in removing particles as small as 10 microns. It is recommended for use in both carbureted and fuel-injected systems to prevent damage to sensitive components. The filter's matte white finish and compact design make it a practical choice for marine applications, ensuring reliable operation in challenging environments.

Features

• Remove Over 99.8 Percent Of Emulsified Water From The Gasoline
• Over 90 Percent Efficient At Removing Particles As Small As 10 Micron
• All Filters Flow At 90 Gallons Per Hour To Feed Even The Hungriest Motor
• Recommended To Prevent Damage To Sensitive Inboard And Outboard Fuel Injection Systems

Specifications

• Manufacturer: Sierra Marine
• Manufacturer Part Number: 18-7830
• Type: OE Replacement
• Location: In-Line
• Fuel Type: Gasoline
• Inlet Connection Size: 0.313 Inch
• Inlet Connection Type: Hose Barb
• Outlet Connection Size: 0.313 Inch
• Outlet Connection Type: Hose Barb
• Diameter (IN): OEM
• Length (IN): OEM
• Width (IN): OEM
• Height (IN): OEM
• Micron Rating: 20 Micron
• Element Material: Paper
• Finish: Matte
• Color: White
• Material: OEM
• With Gasket: No
• With Hose: No
• With Mounting Hardware: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• 118-7830_RevA.pdf
