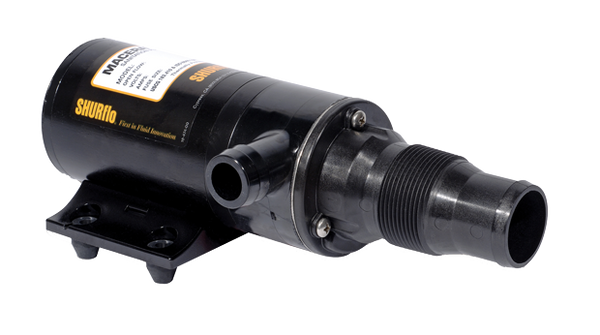

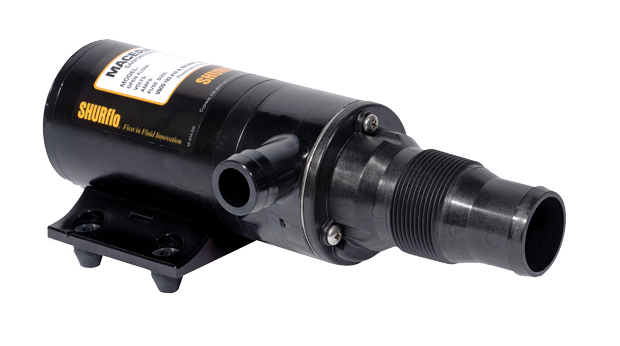

SHURflo Macerator Pump (MPN: 3200-001)

High performance waste evacuation solution for RV and marine applications.

The SHURflo Macerator Pump is engineered for efficient waste management in sanitation systems, particularly for RV and marine environments. With a robust 14 amp rating and a flow rate of 13 gallons per minute, this pump ensures reliable evacuation of waste. Its innovative design features a premium impeller with run dry capability, allowing for uninterrupted operation even in challenging conditions.

Constructed with a dual blade and housing design, the Macerator Pump minimizes operational issues, providing a seamless experience for users. The thermally protected motor and ignition protection enhance safety and durability, making it suitable for various applications. The compact dimensions of 10.79 inches in length, 3.82 inches in width, and 4.48 inches in height allow for easy installation in tight spaces.

This pump is CE listed and includes a sealed manual turn key for user convenience. It is compatible with standard 1-1/2 inch hose barb inlets and offers a 1 inch hose barb outlet, ensuring versatility in installation. The SHURflo Macerator Pump is a dependable choice for those seeking a high-quality waste evacuation solution.

Features

• Sealed Manual Turn Key
• Run Dry Capability
• Dual Blade Design
• Ignition Protected
• Thermally Protected
• CE Listed and For RV and Marine use

Specifications

• Manufacturer: SHURflo
• Manufacturer Part Number: 3200-001
• Compatibility: Marine And RV Waste Dump System
• Ampere Rating: 17 Amp
• Voltage Rating: 12 Volt
• Flow Rate (GPM): 13 Gallon Per Minute
• Inlet Size & Attachment: 1-1/2 Inch Hose Barb
• Outlet Size & Attachment: 1 Inch Hose Barb
• Impeller Material: Polyurethane
• Housing Material: Nylon
• With Mounting Hardware: Yes

Technical Documents

• 911-566-3200-macerator-pump-iom.pdf
• pds-3200-000.pdf
