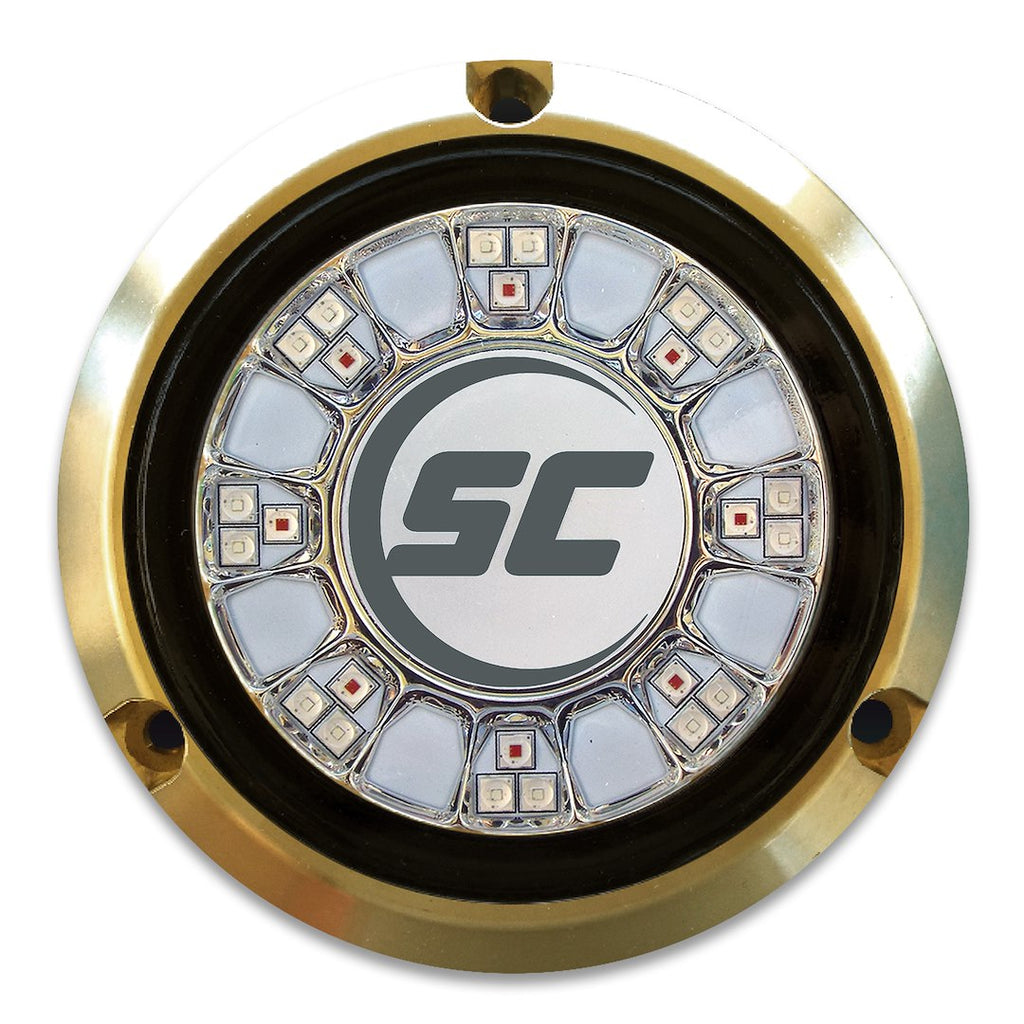

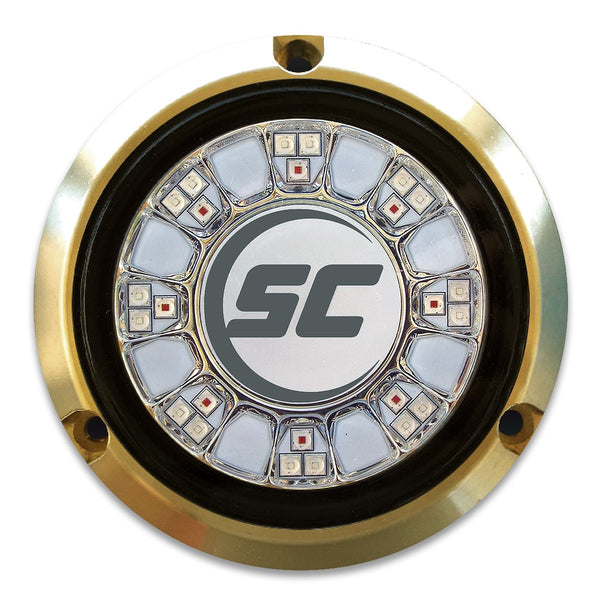

Shadow-Caster Underwater Light (MPN: SCR-24-GW-BZ-10)

High-performance underwater lighting for enhanced visibility and safety.

The Shadow-Caster SCR-24 Series is a robust underwater light designed for marine applications, featuring 24 Great White LEDs that deliver an impressive 7500 lumens of illumination. With a compact 4-inch diameter and a durable bronze housing, this light is engineered for surface mounting below the waterline, ensuring reliable performance in demanding marine environments. The clear borosilicate glass lens is scratch-resistant and impervious to harsh chemicals, providing longevity and clarity in underwater visibility.

This underwater light operates efficiently at 90 watts with a 7.8 amp draw at 12 volts, making it suitable for a voltage range of 10 to 30 volts. The SCR-24 incorporates advanced thermal throttling technology, allowing safe operation even when out of water, and features transient surge and reverse polarity protection to extend the unit's lifespan. Its 120-degree beam angle enhances visibility, making it easier to identify potential hazards and attract fish during nighttime excursions.

Designed with user-friendly control options, the SCR-24 allows for simple on-off functionality as well as advanced lighting effects, including fade in/out and strobe capabilities. This versatility, combined with its low maintenance requirements, makes it an essential addition to any watercraft. The Shadow-Caster SCR-24 is built to withstand the rigors of marine life, ensuring that your boating experience is both safe and visually stunning.

Features

• Proprietary Clear-Gel-Flled Design, Injected Through Entire Unit: Eliminates Condensation And Water Intrusion Under Stress
• Tough, Scratch Resistant, Tempered Glass Lens With Bronze Housing: Impervious To Acetone, Solvents And Demanding Marine Environments
• Transient Surge And Reverse Polarity Protection: Dramatically Prolongs Unit Life
• Thermal Throttling Technology: Enables Safe Operation Even Out Of Water
• From Simple On-Off To Full-Feature Lighting Effects, Unit Is Enabled For A Host Of Control Interfaces
• Used With A Single Color Lights Allows For Light On/Off, Fade In/Out And Strobe
• Quickly Toggle Power Source To Advance To Next Color Or Brightness Level
• Provides Long Lifespan And Low Maintenance Requirements
• Lights Are Specifically Designed For Marine Environments And Can Withstand The Harsh Conditions Of Boating

Specifications

• Manufacturer: Shadow-Caster LED Lighting
• Manufacturer Part Number: SCR-24-GW-BZ-10
• LED Color: Great White
• Mounting Type: Surface Mount
• Light Output: 7500 Lumens
• Voltage Rating: 12/ 24 Volt
• Lens Color: Clear
• Bulb Type: LED
• Ampere Rating: 7.8 Amp At 12 Volt
• Wattage: 90 Watt
• Shape: Round
• Surface Size: 4 Inch Diameter X 5/8 Inch Height
• Housing Color: Gold
• Housing Material: Bronze
• Quantity: Single

Technical Documents

• SCR-Series_24_16-Installation-instructions_HR.pdf
• Warranty-Rev-V.3.pdf
• SCR-24-Series-Underwater-LED-Lights-Datasheet_HR.pdf
