Shadow-Caster Underwater Light (MPN: SCR-24-CC-BZ-10)

High-performance RGBW LED lighting for marine applications.

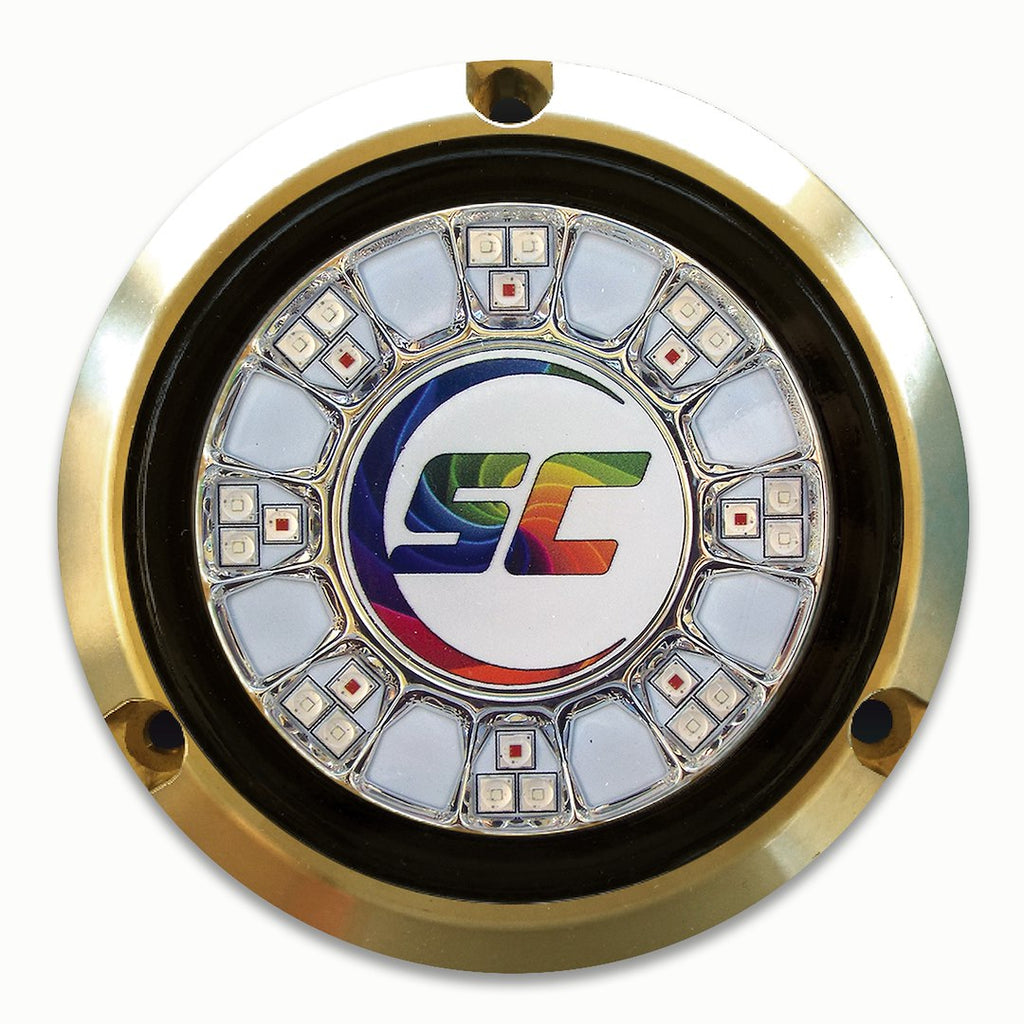

The Shadow-Caster SCR-24 Series is a robust underwater light designed for marine environments, featuring 24 RGBW LEDs that deliver 7500 lumens of illumination. With a compact 4-inch diameter and a durable bronze housing, this light is engineered for surface mounting below the waterline, ensuring reliable performance in demanding conditions. The clear borosilicate glass lens is scratch-resistant and impervious to harsh marine elements, providing longevity and clarity in underwater visibility.

This underwater light operates efficiently at 90 watts with a 7.8 amp draw at 12 volts, making it suitable for a wide voltage range of 10 to 30 volts. The SCR-24 incorporates advanced features such as transient surge protection and thermal throttling technology, which enhance its durability and operational safety. Additionally, the light offers a variety of color options and brightness levels, allowing users to customize their lighting experience.

Designed to improve visibility and attract marine life, the SCR-24 is an essential addition for boaters seeking enhanced safety and aesthetics during nighttime excursions. Its low maintenance requirements and long lifespan make it a practical choice for any watercraft, ensuring that it withstands the rigors of marine use while providing stunning visual effects.

Features

• Proprietary Clear-Gel-Flled Design, Injected Through Entire Unit: Eliminates Condensation And Water Intrusion Under Stress
• Tough, Scratch Resistant, Tempered Glass Lens With Bronze Housing: Impervious To Acetone, Solvents And Demanding Marine Environments
• Transient Surge And Reverse Polarity Protection: Dramatically Prolongs Unit Life
• Thermal Throttling Technology: Enables Safe Operation Even Out Of Water
• From Simple On-Off To Full-Feature Lighting Effects, Unit Is Enabled For A Host Of Control Interfaces
• Full Color Light “CC” Has 12 Built-In Colors, And Can Be Enabled With Unlimited Colors And Many Other Advanced Features Using Shadow-Net
• Quickly Toggle Power Source To Advance To Next Color Or Brightness Level
• Provides Long Lifespan And Low Maintenance Requirements
• Lights Are Specifically Designed For Marine Environments And Can Withstand The Harsh Conditions Of Boating

Specifications

• Manufacturer: Shadow-Caster LED Lighting
• Manufacturer Part Number: SCR-24-CC-BZ-10
• LED Color: Blue/ Green/ Red/ White
• Mounting Type: Surface Mount
• Light Output: 7500 Lumens
• Voltage Rating: 12/ 24 Volt
• Lens Color: Clear
• Bulb Type: LED
• Ampere Rating: 7.8 Amp At 12 Volt
• Wattage: 90 Watt
• Shape: Round
• Surface Size: 4 Inch Diameter X 5/8 Inch Height
• Housing Color: Gold
• Housing Material: Bronze
• Quantity: Single

Technical Documents

• SCR-24-CC-Operating-Instructions_HR.pdf
• SCR-Series_24_16-Installation-instructions_HR.pdf
• Warranty-Rev-V.3.pdf
• SCR-24-Series-Underwater-LED-Lights-Datasheet_HR.pdf
