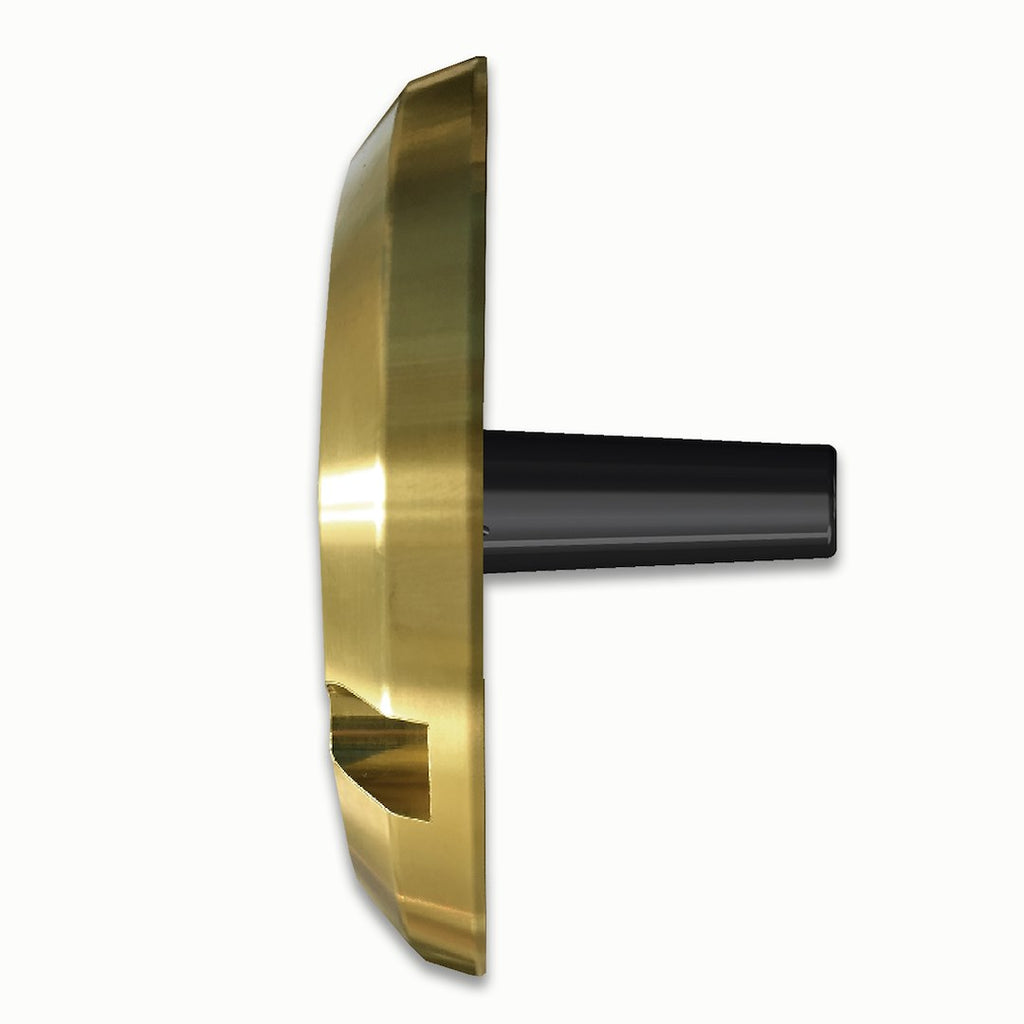

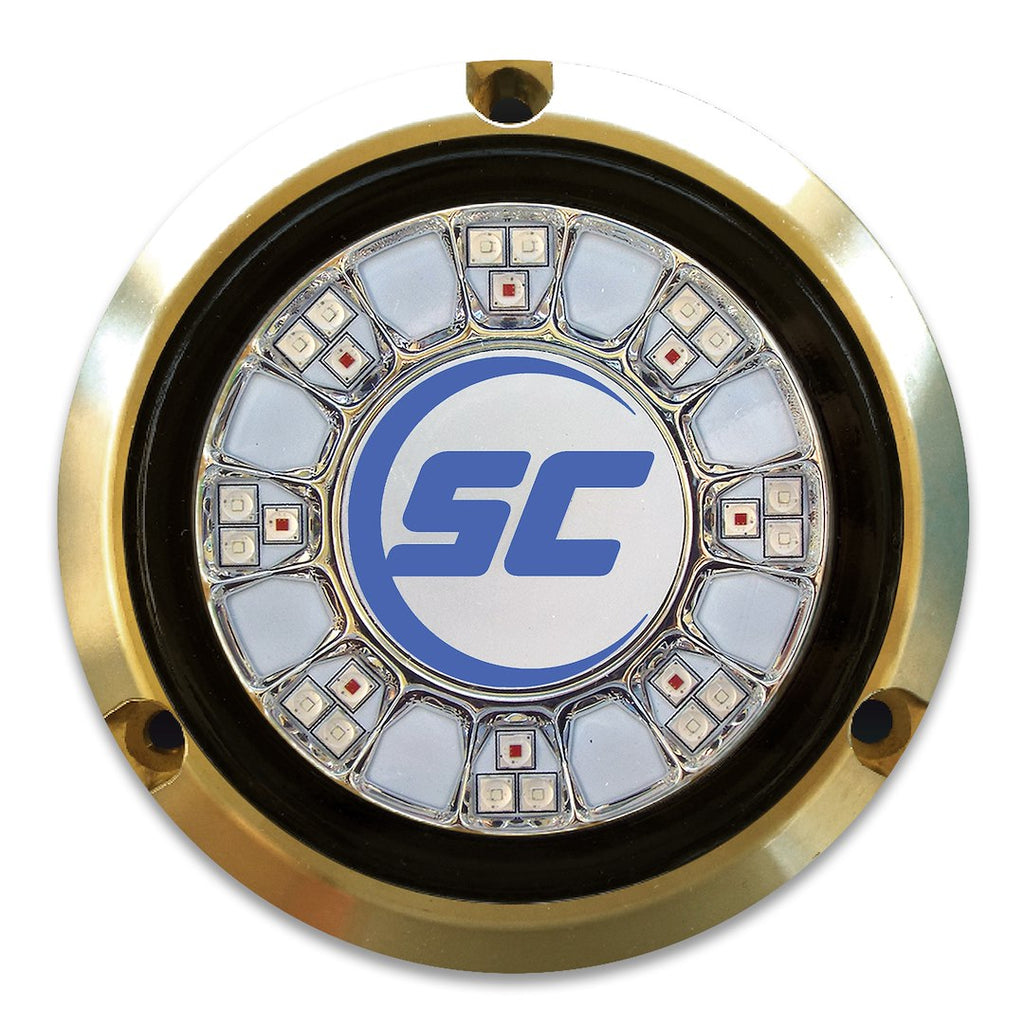

Shadow-Caster Underwater Light (MPN: SCR-24-BW-BZ-10)

High-performance underwater lighting for enhanced visibility and safety.

The Shadow-Caster SCR-24 Series is a robust underwater light designed for marine applications, featuring 24 blue and white LEDs that deliver an impressive 7500 lumens of illumination. With a compact 4-inch diameter and a durable bronze housing, this light is engineered for surface mounting below the waterline, ensuring reliable performance in demanding marine environments. The clear borosilicate glass lens is scratch-resistant and impervious to harsh chemicals, making it suitable for long-term use in various conditions.

This underwater light operates efficiently at 90 watts with a 7.8 amp draw at 12 volts, and it is compatible with a voltage range of 10 to 30 volts. The SCR-24 incorporates advanced features such as transient surge protection and thermal throttling technology, which enhance its longevity and safety during operation. Additionally, the light offers versatile control options, allowing users to toggle between colors and brightness levels, making it adaptable for different lighting needs.

Designed specifically for marine environments, the SCR-24 not only improves visibility underwater but also attracts fish, enhancing the fishing experience during nighttime excursions. Its low maintenance requirements and long lifespan make it a practical choice for boat owners seeking reliable underwater lighting solutions.

Features

• Proprietary Clear-Gel-Flled Design, Injected Through Entire Unit: Eliminates Condensation And Water Intrusion Under Stress
• Tough, Scratch Resistant, Tempered Glass Lens With Bronze Housing: Impervious To Acetone, Solvents And Demanding Marine Environments
• Transient Surge And Reverse Polarity Protection: Dramatically Prolongs Unit Life
• Thermal Throttling Technology: Enables Safe Operation Even Out Of Water
• From Simple On-Off To Full-Feature Lighting Effects, Unit Is Enabled For A Host Of Control Interfaces
• Two Color Lights Allows Either Single Color On, Fade Between Colors And Strobe Current Color
• Quickly Toggle Power Source To Advance To Next Color Or Brightness Level
• Provides Long Lifespan And Low Maintenance Requirements
• Lights Are Specifically Designed For Marine Environments And Can Withstand The Harsh Conditions Of Boating

Specifications

• Manufacturer: Shadow-Caster LED Lighting
• Manufacturer Part Number: SCR-24-BW-BZ-10
• LED Color: Blue/ White
• Mounting Type: Surface Mount
• Light Output: 7500 Lumens
• Voltage Rating: 12/ 24 Volt
• Lens Color: Clear
• Bulb Type: LED
• Ampere Rating: 7.8 Amp At 12 Volt
• Wattage: 90 Watt
• Shape: Round
• Surface Size: 4 Inch Diameter X 5/8 Inch Height
• Housing Color: Gold
• Housing Material: Bronze
• Quantity: Single

Technical Documents

• SCR-BW-Operating-Instruction-Sheet_HR.pdf
• SCR-Series_24_16-Installation-instructions_HR.pdf
• Warranty-Rev-V.3.pdf
• SCR-24-Series-Underwater-LED-Lights-Datasheet_HR.pdf
