Shadow-Caster Underwater Light (MPN: SCR-16-BW-BZ-10)

High-performance underwater lighting for enhanced visibility and safety.

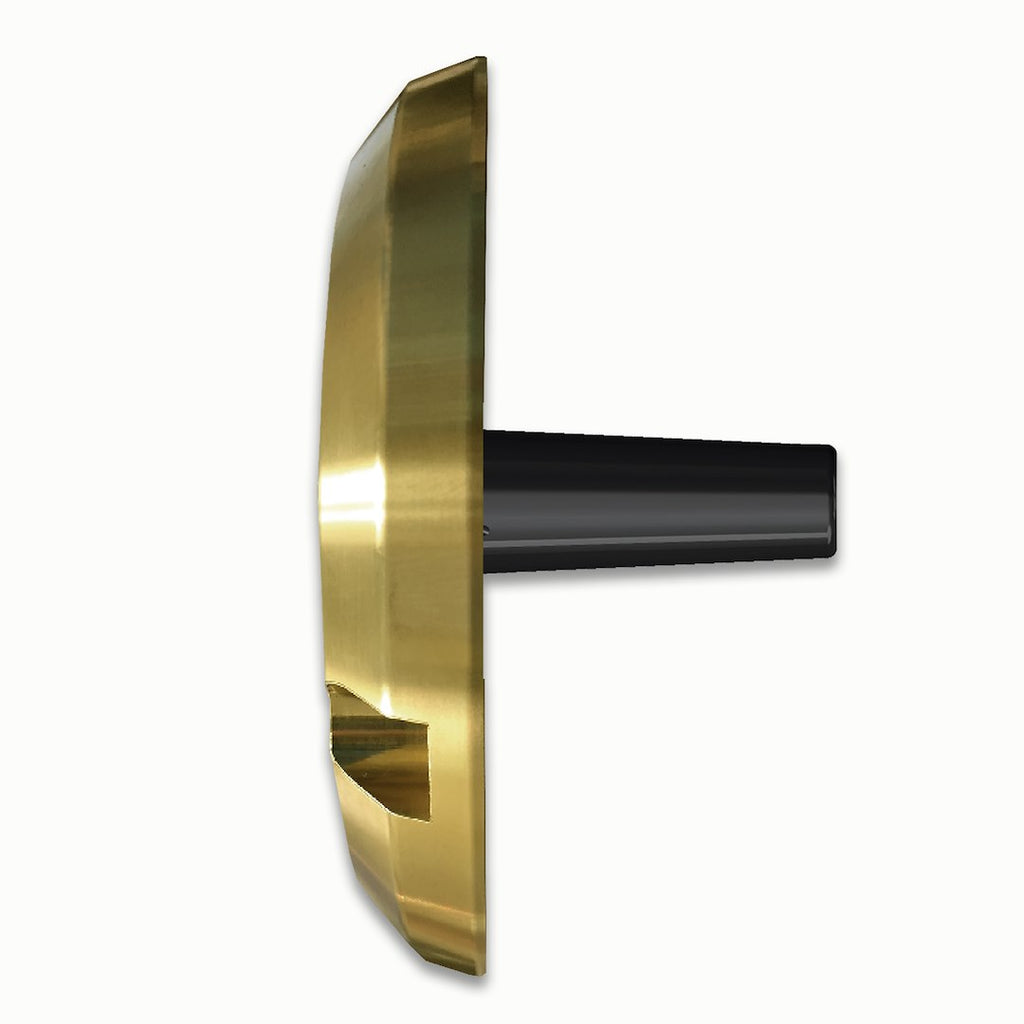

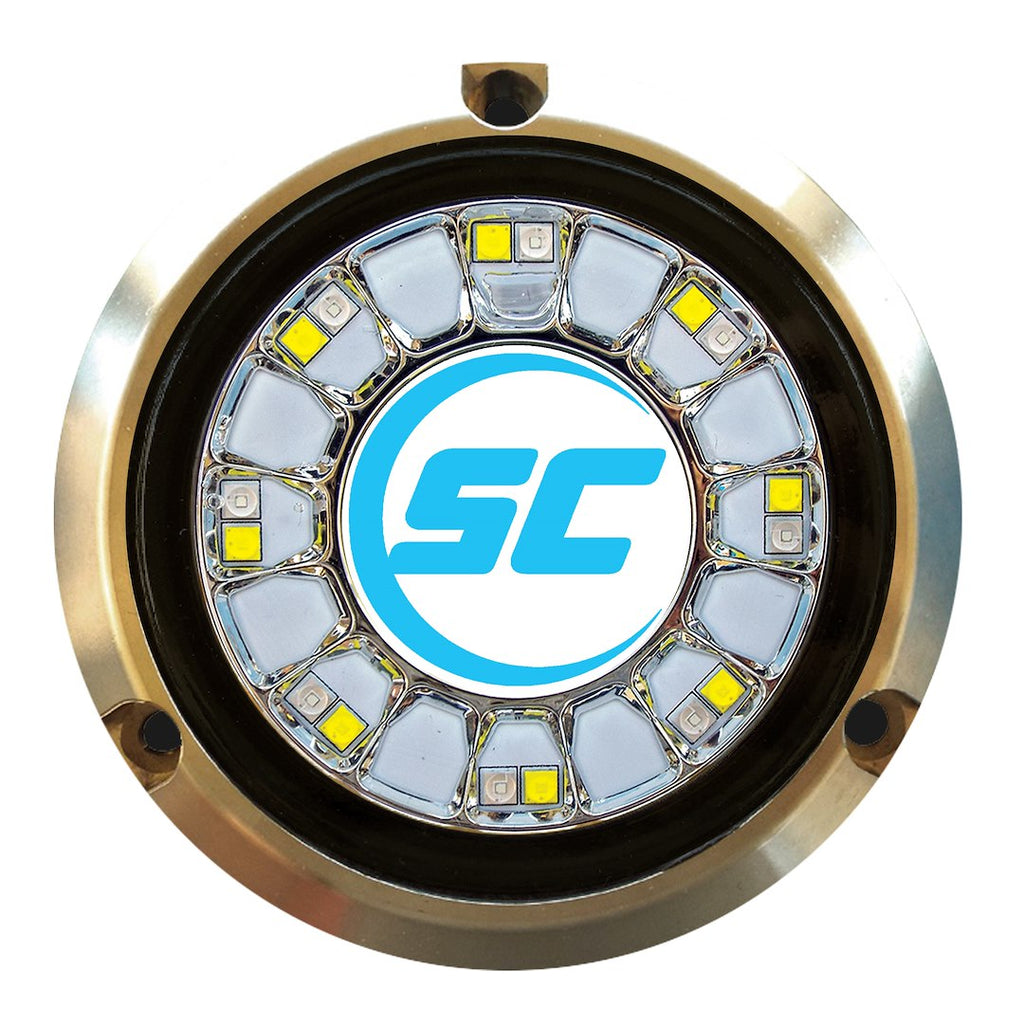

The Shadow-Caster SCR-16 is a robust underwater marine light featuring 16 blue and white LEDs, delivering 60 Watts of powerful illumination. With a compact 4-inch diameter bronze housing, this light is designed for surface mounting below the waterline, ensuring durability and performance in demanding marine environments. The clear borosilicate glass lens is scratch-resistant and impervious to harsh chemicals, making it suitable for various boating conditions.

This underwater light produces an impressive 7000 lumens, significantly improving visibility underwater and allowing boaters to identify potential hazards more effectively. Additionally, the SCR-16 is equipped with advanced features such as transient surge protection and thermal throttling technology, which enhance the unit's lifespan and operational safety. The light's dual color capability allows users to switch between colors or create dynamic lighting effects, catering to different preferences and situations.

Designed specifically for marine applications, the SCR-16 is IP68 waterproof rated, ensuring reliable performance even in extreme conditions. The included 3-foot submersible grade cable and silicone bronze screws facilitate easy installation, making it a practical choice for boat owners seeking high-quality underwater lighting solutions.

Features

• Proprietary Clear-Gel-Flled Design, Injected Through Entire Unit: Eliminates Condensation And Water Intrusion Under Stress
• Tough, Scratch Resistant, Tempered Glass Lens With Bronze Housing: Impervious To Acetone, Solvents And Demanding Marine Environments
• Transient Surge And Reverse Polarity Protection: Dramatically Prolongs Unit Life
• Thermal Throttling Technology: Enables Safe Operation Even Out Of Water
• From Simple On-Off To Full-Feature Lighting Effects, Unit Is Enabled For A Host Of Control Interfaces
• Two Color Lights Allows Either Single Color On, Fade Between Colors And Strobe Current Color
• Quickly Toggle Power Source To Advance To Next Color Or Brightness Level
• Provides Long Lifespan And Low Maintenance Requirements
• Lights Are Specifically Designed For Marine Environments And Can Withstand The Harsh Conditions Of Boating

Specifications

• Manufacturer: Shadow-Caster LED Lighting
• Manufacturer Part Number: SCR-16-BW-BZ-10
• LED Color: Blue/ White
• Mounting Type: Surface Mount
• Light Output: 7000 Lumens
• Voltage Rating: 12/ 24 Volt
• Lens Color: Clear
• Bulb Type: LED
• Ampere Rating: 5 Amp At 12 Volt
• Wattage: 60 Watt
• Shape: Round
• Surface Size: 4 Inch Diameter X 5/8 Inch Height
• Housing Color: Gold
• Housing Material: Bronze
• Quantity: Single

Technical Documents

• SCR-BW-Operating-Instruction-Sheet_HR.pdf
• SCR-Series_24_16-Installation-instructions_HR.pdf
• Warranty-Rev-V.3.pdf
• SCR-16-Series-Underwater-LED-Lights-Datasheet_HR.pdf
