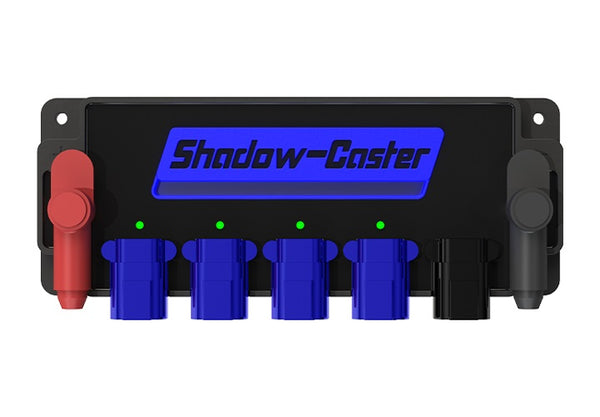

Shadow-Caster Power Distribution Box (MPN: SCM-PDCH4)

Efficiently manage power for multiple underwater lights with advanced protection features.

The Shadow-Caster Power Distribution Box is designed to facilitate the connection of up to four underwater lights, making it an essential component for multi-light installations. This compact unit operates on a voltage range of 12 to 24 volts and supports a maximum current of 10 amps per channel, ensuring reliable performance for various lighting setups. Each output channel is equipped with individual digital over-current protection, which enhances safety by preventing overloads and ensuring the longevity of connected lights.

Constructed in a waterproof housing, the Power Distribution Box is suitable for installation in bilge and wet locations, providing versatility in marine environments. The unit features a green/red LED indicator for each output channel, allowing users to easily monitor the operational status of their lights. Additionally, it can be used with a helm-mounted switch or directly with a compatible Shadow-Caster controller, offering flexibility in control options.

This power distribution solution is particularly recommended for installations involving two or more underwater lights, streamlining the management of power distribution while maintaining safety and efficiency. The compact dimensions of 7.9 inches in length, 3 inches in width, and 1.5 inches in depth make it easy to integrate into various setups without occupying excessive space.

Features

• Compact Remote Power Control Box
• Green/Red LED Indicates The Status Of Each Output Channel
• Individual Digital Over-Current Protection For Each Channel
• Compatible With SHADOW-CASTER Single And Multi-Color Lights
• Recommended When Installing Two Or More Underwater Lights
• Can Be Used With A Helm Mounted Switch Or With No Switch When Using A Compatible SHADOW-CASTER Controller
• Blue SHADOW-CASTER Back Light Indicates State

Specifications

• Manufacturer: Shadow-Caster LED Lighting
• Manufacturer Part Number: SCM-PDCH4
• Recommended Use: Two Or More Underwater Lights
• Voltage Rating: 12 To 24 Volt
• Power Rating: 10 Amp
• Receptacle Type: No Receptacle

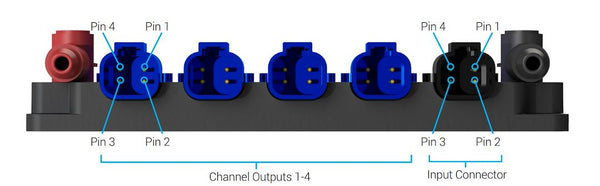

• Number Of Connections: 4
• GFCI/ Overload Protection: Yes
• Length (IN): 7.9 Inch
• Width (IN): 3 Inch
• Height (IN): 1-1/2 Inch
• Color: Black
• UL Listed: No
• With Flip Cover: No
• Marine: Yes

Technical Documents

• SCM-PD4CH-with-SCM-SNLC-SCR-24-CC-Underwater-Lights-Jul23.pdf
• SCM-PD4CH-Product-Instructions.pdf
• SCM-PD4CH-with-SCM-LC-N2K-PLUS-with-6-Switch-Inputs-Shadow-NET-Lights-4-Zones-of-RGB-Lights-Jul23.pdf
• SCM-PD4CH-with-SCM-SWITCH-SCR-24-CC-Underwater-Lights-Jul23.pdf
• Warranty-Rev-V.3.pdf
• SCM-PD4CH-Data-Sheet_HR.pdf
