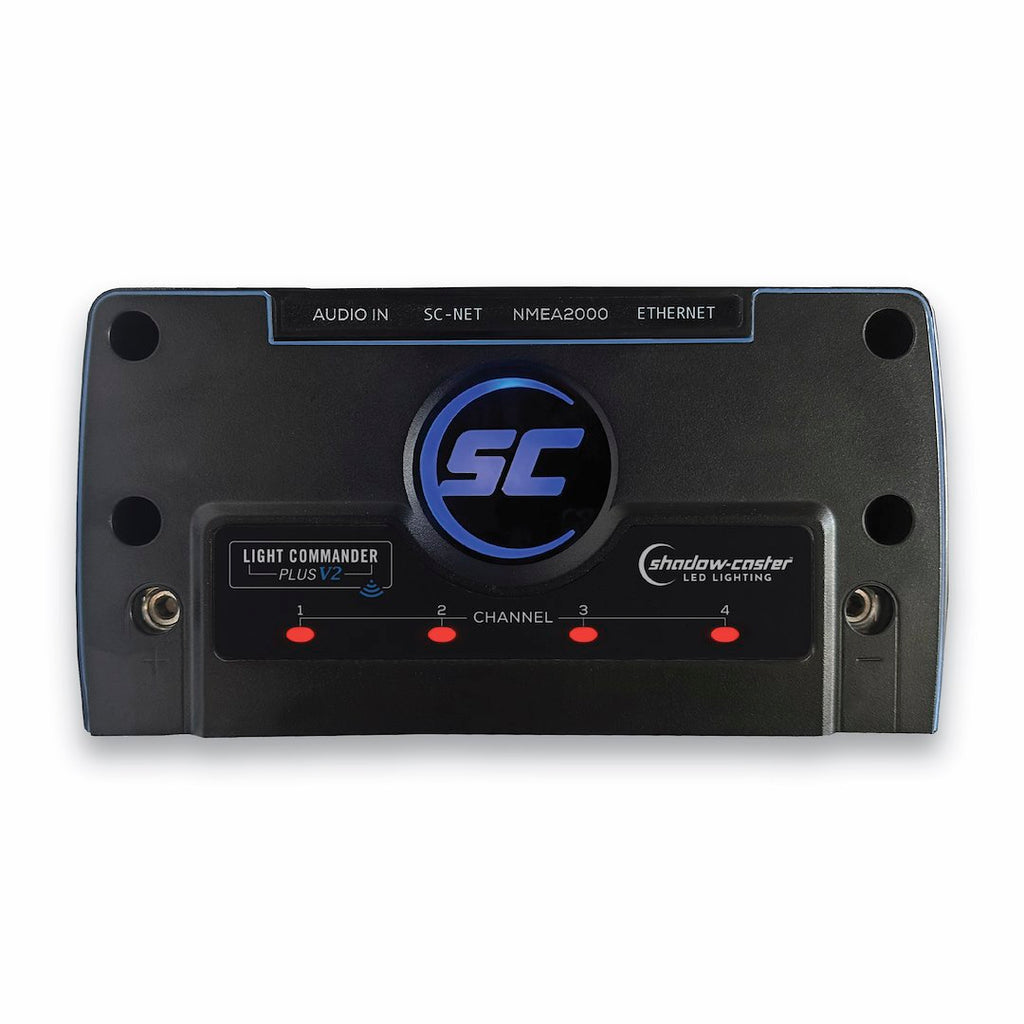

Shadow-Caster Light Commander (MPN: SCM-LC-N2K-PLUS-V2)

Shadow-Caster Light Commander (MPN: SCM-LC-N2K-PLUS-V2)

  • Sale
  • $874.98
Accepted Credit Cards

Advanced control for RGB and RGBW LED lighting systems

The Shadow-Caster Light Commander is a state-of-the-art light control module designed specifically for marine applications. This device allows users to manage up to 6 zones of RGB or RGBW LED lighting, with the capability to expand to 18 zones, providing extensive customization options for boat lighting. It operates within a voltage range of 10 to 30 volts and supports a maximum of 15 amps per zone, ensuring robust performance under various conditions.

Constructed with an IP67 waterproof rating, the Light Commander is built to withstand the harsh marine environment. It features Deutsch style IP67 connections for reliable and clean installations, making it suitable for both new and existing setups. The integrated HTML interface, along with Wi-Fi and Bluetooth connectivity, allows for seamless integration with NMEA 2000 networks, enhancing the overall functionality of marine lighting systems.

The module includes a backlit logo and zone indicator LEDs, providing clear visibility of operational status. Additionally, it features a built-in 3.5 millimeter female audio port for music synchronization, allowing for dynamic lighting effects that can respond to audio input. The Shadow-Caster Light Commander is engineered to elevate the marine lighting experience through advanced technology and user-friendly design.

Features

  • NMEA 2000 Backbone Or MFD Network Port Connectivity
  • Global Control For All Lighting
  • 6 “instant ON” Switch Inputs For Enabling Lights Without MFD Control
  • Supports RGB And RGBW Lighting
  • IP67 Water Resistant Housing With Waterproof Connections
  • Deutsch Style IP67 Rated Connections, For Clean OEM Installations
  • All In One Design, No Need For A Separate MFD Communication Bridge
  • Backlit Logo And Zone Indicator Leds To Indicate Functions And Operation
  • Built In 3-1/2 Millimeter Female Audio Port And Microphone For Music Sync Input

Specifications

  • Manufacturer: Shadow-Caster LED Lighting
  • Manufacturer Part Number: SCM-LC-N2K-PLUS-V2
  • Number of Zones: 6
  • Power Supply: 10 To 30 Volt
  • Ampere: 15 Amp
  • Connection Type: Plug And Play
  • Dimensions: 8.9 Inch Length x 4-3/4 Inch Width x 1.8 Inch Depth
  • Color: Black
  • Waterproof Rating: IP67 Waterproof

Technical Documents

Product Videos

Shipping & Returns

  • This product ships within the continental USA only.
  • This product typically ships within 1 to 3 business days.
  • Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
