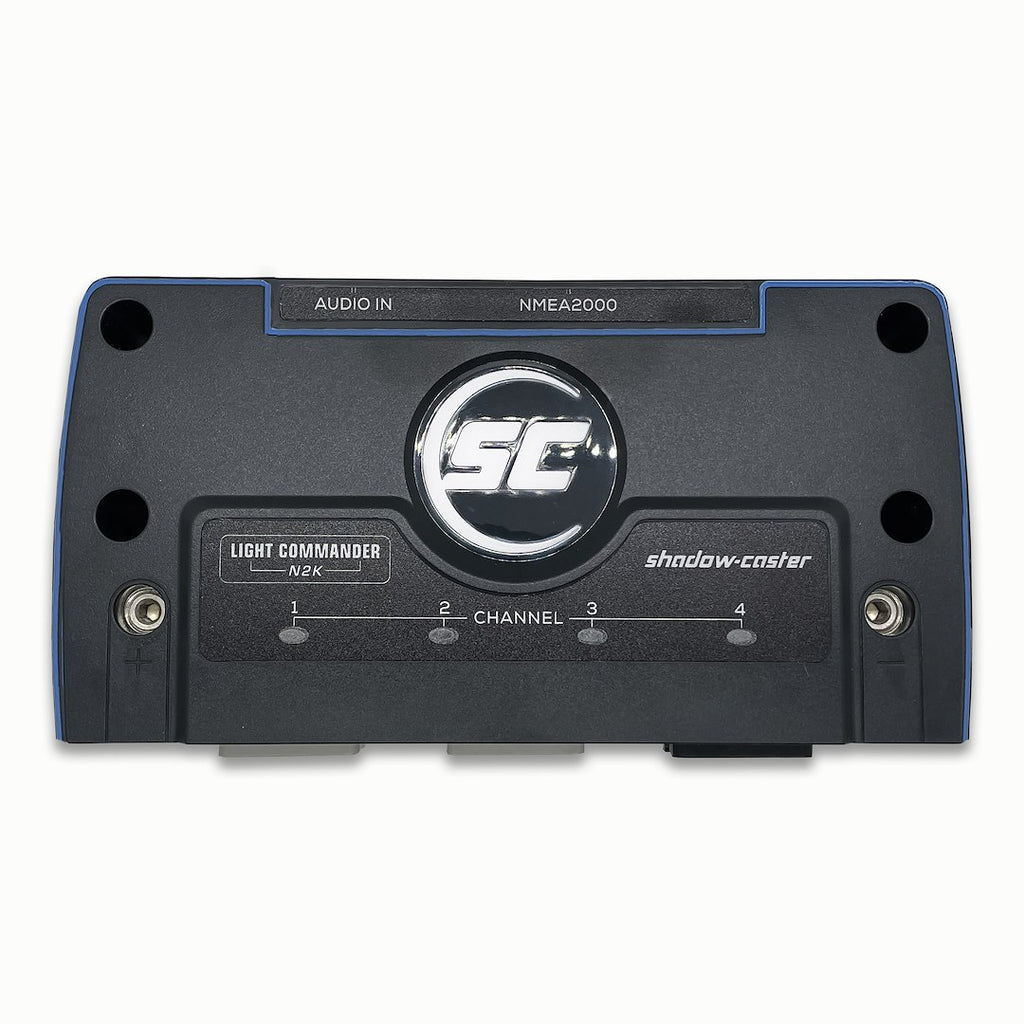

Shadow-Caster Light Commander (MPN: SCM-LC-N2K)

Advanced control for RGB and RGBW LED lighting systems

The Shadow-Caster Light Commander is a sophisticated light control module designed specifically for marine applications. This device allows users to manage up to 6 zones of RGB or RGBW LED lighting, with the capability to expand to 18 zones, providing extensive customization options for boat lighting. It operates within a voltage range of 10 to 30 volts and supports a maximum of 15 amps per zone, ensuring robust performance under various conditions.

Constructed with an IP67 waterproof rating, the Light Commander is built to withstand the harsh marine environment. Its durable housing and Deutsch style connections facilitate a clean and reliable installation, making it suitable for both new and existing setups. The module features a backlit logo and zone indicator LEDs, which enhance usability by clearly displaying operational status.

In addition to its lighting control capabilities, the Light Commander includes a built-in 3.5 millimeter female audio port, allowing for music synchronization with lighting effects. This feature adds an extra layer of versatility, enabling users to create dynamic lighting scenes that respond to audio input. With its NMEA 2000 compliance, the Light Commander integrates seamlessly into existing marine systems, ensuring compatibility and ease of use.

Features

• NMEA 2000 Backbone Or MFD Network Port Connectivity
• Global Control For All Lighting
• 6 “instant ON” Switch Inputs For Enabling Lights Without MFD Control
• Supports RGB And RGBW Lighting
• IP67 Water Resistant Housing With Waterproof Connections
• Deutsch Style IP67 Rated Connections, For Clean OEM Installations
• All In One Design, No Need For A Separate MFD Communication Bridge
• Backlit Logo And Zone Indicator Leds To Indicate Functions And Operation
• Built In 3-1/2 Millimeter Female Audio Port And Microphone For Music Sync Input

Specifications

• Manufacturer: Shadow-Caster LED Lighting
• Manufacturer Part Number: SCM-LC-N2K
• Number of Zones: 6
• Power Supply: 10 To 30 Volt
• Ampere: 15 Amp
• Connection Type: Plug And Play
• Dimensions: 8.9 Inch Length x 4-3/4 Inch Width x 1.8 Inch Depth
• Color: Black
• Waterproof Rating: IP67 Waterproof

Technical Documents

• SCM-LC-N2K-PLUS-FIRMWARE-UPDATE_REEV-A4.pdf
• Light-Commander-Manual-Oct2024.pdf
• Light-Commander-App-Wifi-Manual-Oct2024.pdf
• SCM-Light-Commander-SCM-SNLC-5-Zones-of-RGB-Lights-Jul23.pdf
• SCM-Light-Commander-with-6-Switch-Inputs-Shadow-NET-Lights-4-Zones-of-RGB-Lights.pdf
• Warranty-Rev-V.3.pdf
• SC-Light-Commander-Multi-Zone-Lighting-Controller-Data-Sheet.pdf
• Light-Commander-Manual-Oct2024.pdf
