Advanced monitoring for RV battery and tank levels with LED display.

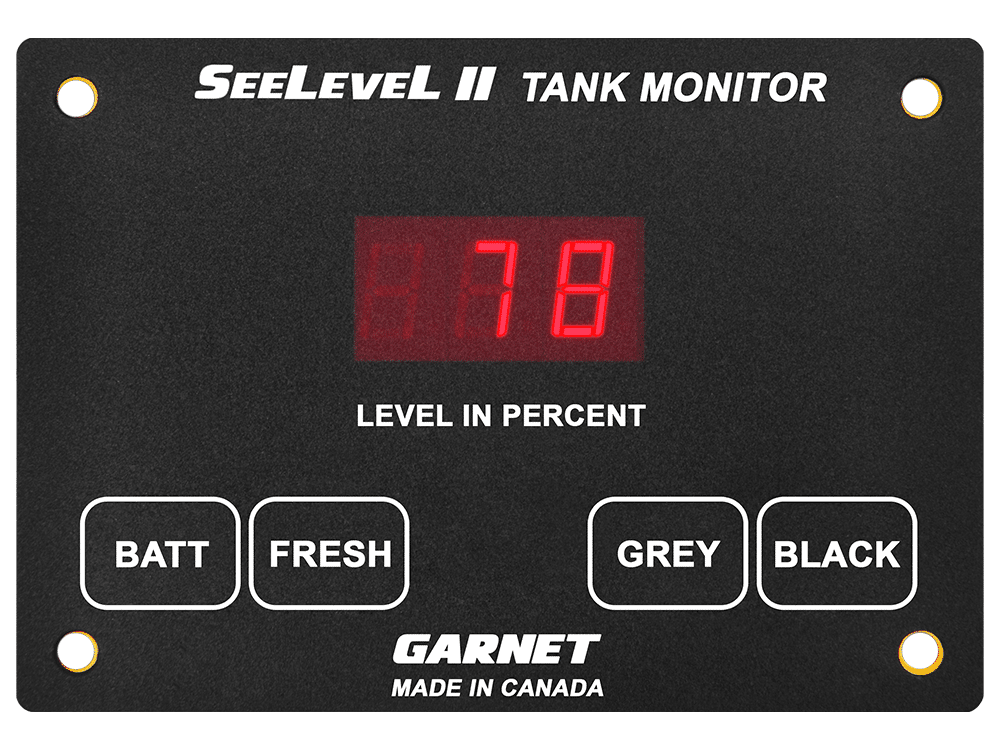

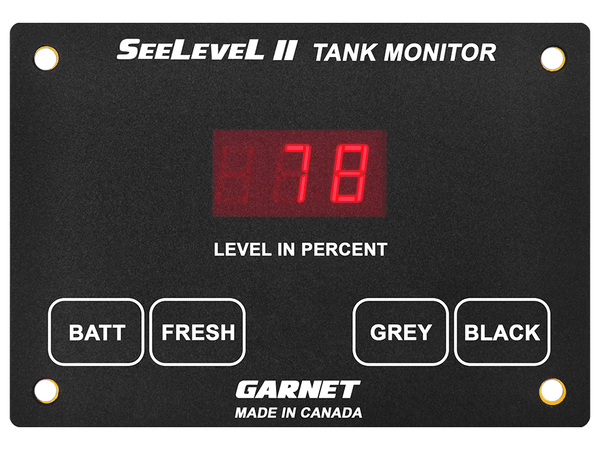

The SeeLevel Tank Monitor System is a sophisticated solution designed for the Recreational Vehicle industry, providing precise monitoring of battery voltage and tank levels. This system is capable of measuring the levels of fresh water, gray water, black water, and LPG tanks, ensuring users have accurate information at their fingertips. The LED display offers a clear three-digit readout, indicating the percentage of full for each tank, enhancing usability and reliability.

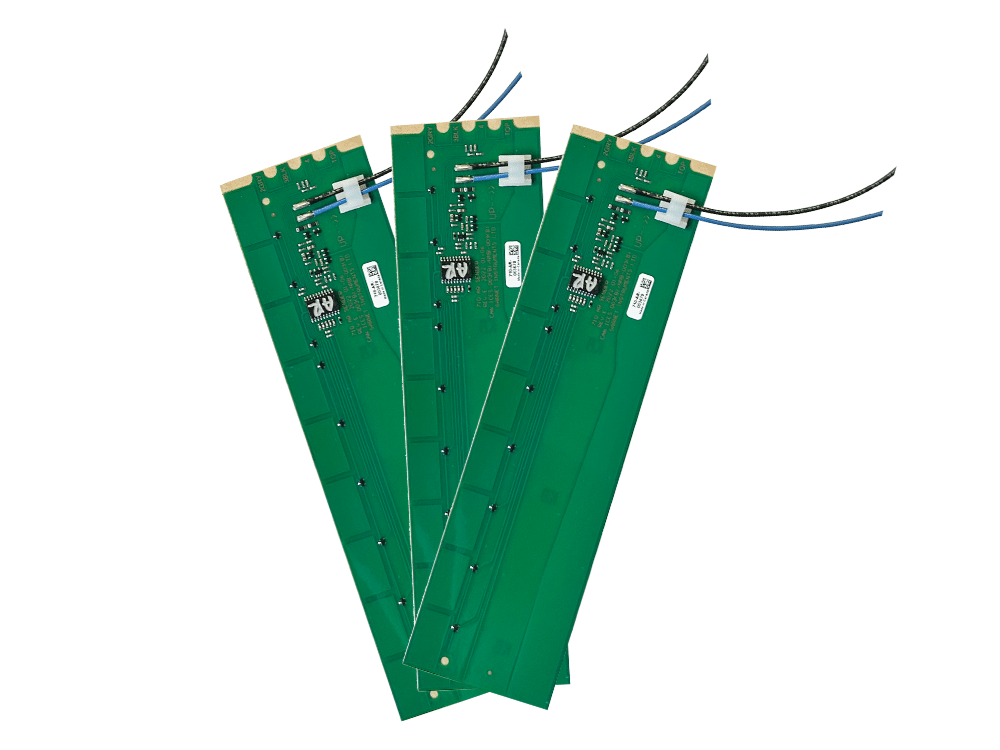

Engineered for motorhomes and trailers with up to three holding tanks, the SeeLevel system includes one display monitor, three tank senders, and a pigtail for easy installation. The system also features a common alarm output that can be assigned to any or all tanks, allowing for customizable alerts based on user-selected levels and polarity. This functionality ensures that users are promptly informed of critical tank levels, contributing to effective resource management.
With its compact panel size of 4 inches in width and 2.8 inches in height, the SeeLevel Tank Monitor System is designed to fit seamlessly into various RV configurations. Its combination of advanced features, accuracy, and diagnostic capabilities makes it a valuable addition for any RV owner looking to enhance their monitoring systems.
Features
- Designed For Motorhomes And Trailers With 3 Holding Tanks And LPG
- Measures Battery Voltage, Fresh , Grey, And Black Water Levels, And LPG Tank Levels
- Added Features: One Common Alarm Output Assignable To Any Or All Of The Tanks With User Selected Polarity And Levels
- Level In Percent In A Three Digit LED Display
Specifications
- Manufacturer: SeeLevel
- Manufacturer Part Number: 709RVCNLP
- Used For: Monitor Battery Voltage/ Fresh Water Tank/ Gray Water tank/ Black Water Tank Levels
- Display Type: LED
- Panel Size: 4 Inch Width X 2.8 Inch Height
- Capacity: Measures Tanks Up To 3 Holding Tanks
- With Alarm: No
- With Monitor: Yes
- With Tank Sensor: Yes
- With Connector: Yes
Technical Documents
- 709-RVC-NLP-Wiring-Diagram-v3.pdf
- SeeLeveL-Sender-Manual-AR-ES2-v1.1.pdf
- SeeLeveL-709-Series-Display-Manual_v1.0.pdf
- SeeLeveL-Sender-Manual-JS-ES-SS-v1.1.pdf
- SeeLeveL-Holding-Tank-Series-Brochure.pdf
