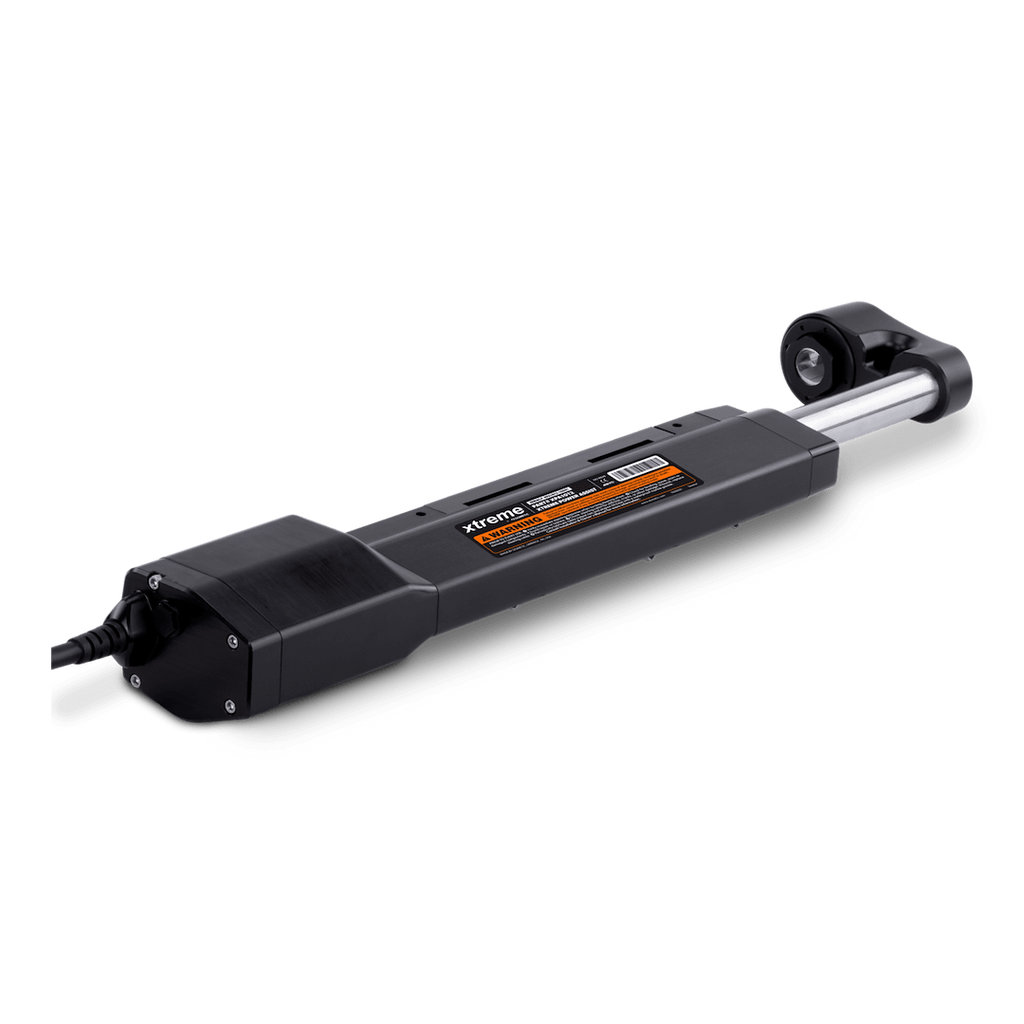

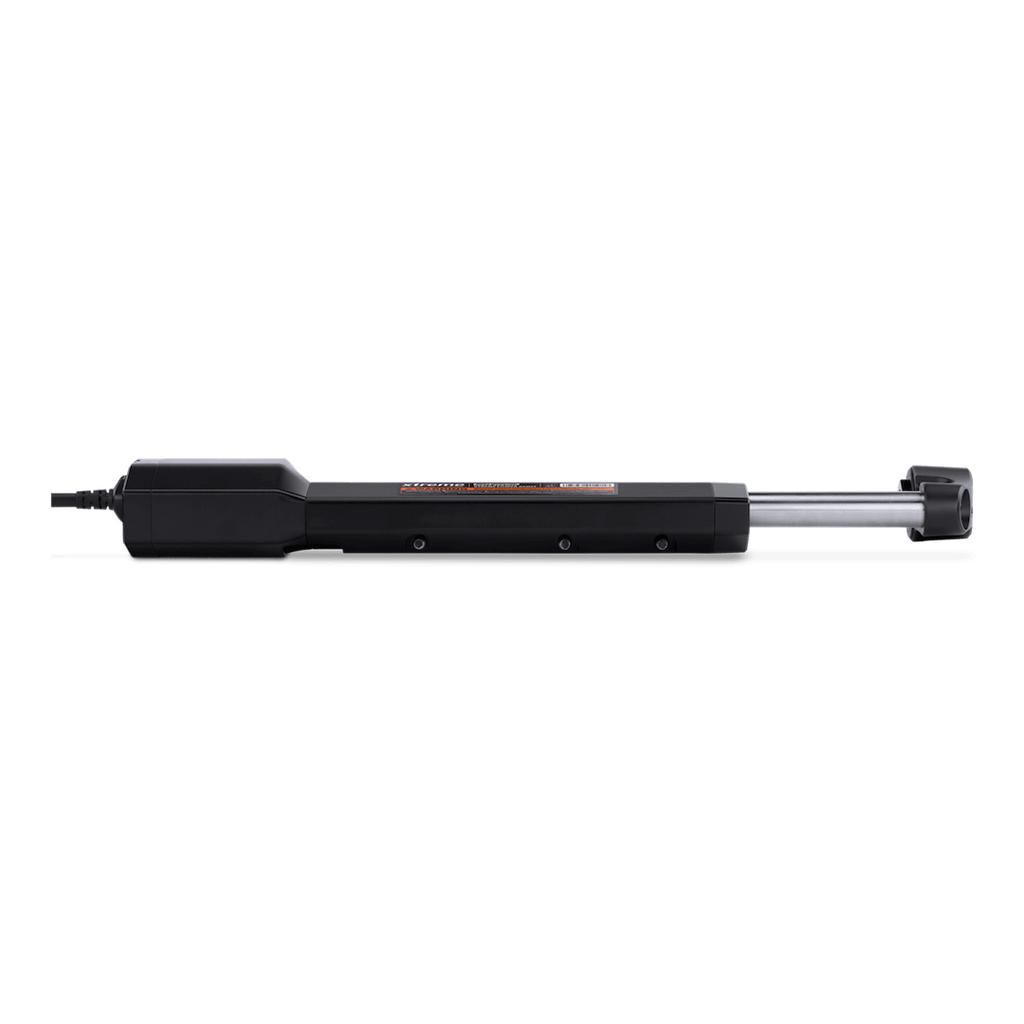

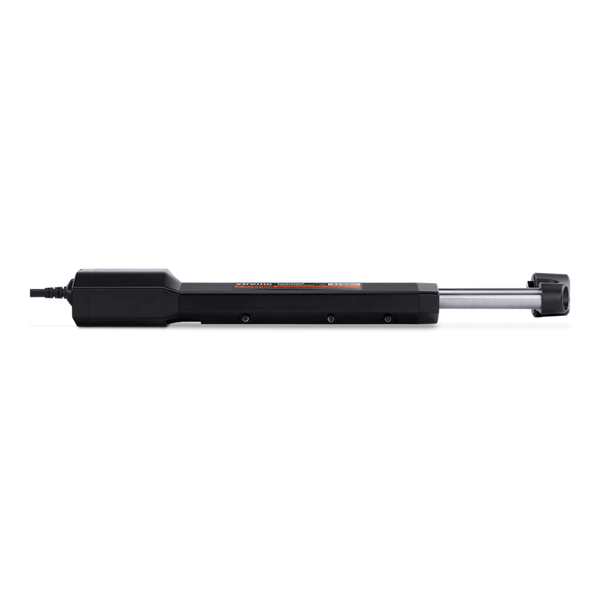

SeaStar Power Assist Steering Cylinder (MPN: XPA1012P)

Enhance control and comfort for outboard boats with ease of installation.

The SeaStar Power Assist Steering Cylinder is designed to provide electric power-assisted steering for a variety of outboard applications ranging from 90 to 200 horsepower. This innovative system significantly reduces steering effort, delivering a car-like driving experience for mechanically steered boats. It is compatible with existing SeaStar rack or rotary cable steering systems, allowing for seamless integration without the need for new steering installations.

Installation is straightforward, with the self-contained, plug-and-play design enabling mounting to all major outboard brands in less than 30 minutes. The system operates within a voltage range of 9 to 16 volts DC and features an 8-1/2 inch stroke length. It is built to withstand harsh marine environments, boasting an IPX6 and IPX7 water ingress protection rating, and is certified to ABYC P-17 standards.

In addition to its ease of use, the SeaStar Power Assist Steering Cylinder includes a built-in fail-safe system that automatically reverts to mechanical steering in the event of a system failure, ensuring safety and reliability on the water. This product is an effective solution for enhancing the steering experience on various boat types, including pontoons, runabouts, and fishing boats.

Features

• Significantly Reduced Steering Effort Provides A Car-Like Driving Experience For Mechanically Steered Boats
• Engineered To Fit A Wide Range Of Single Engine, Mechanically Steered Outboard Boats From 90 To 200 Horsepower
• Integrates With Any Existing SeaStar Rack Or Rotary Cable Steering System, So There Is No Need To Install New Steering To Take Advantage Of This New Technology
• Designed As A Self-Contained, Plug-And-Play System Which Easily Mounts To All Major Outboard Brands And Integrates With The Boat’s Existing Mechanical Steering In Less Than 30 Minute
• Built In Fail-Safe System Automatically Reverts To Mechanical Steering In The Event Of A System Failure

Specifications

• Manufacturer: SeaStar
• Manufacturer Part Number: XPA1012P
• Compatibility: Outboard Engines With 90 To 200 HP
• Type: Power Assist Outboard Cylinder
• Universality: Semi-Universal
• Stroke Length (IN): 8-1/2 Inch
• Includes: With 12 Foot Harness

Technical Documents

• 14-1406-140608-140608005_9600029372_113007.pdf
• 14-1406-140608-140608005_9600029372_93564.pdf
• marine_products_limited_warranty_62292.pdf
• 14-1406-140608-140608005_9600029372_114694.pdf
