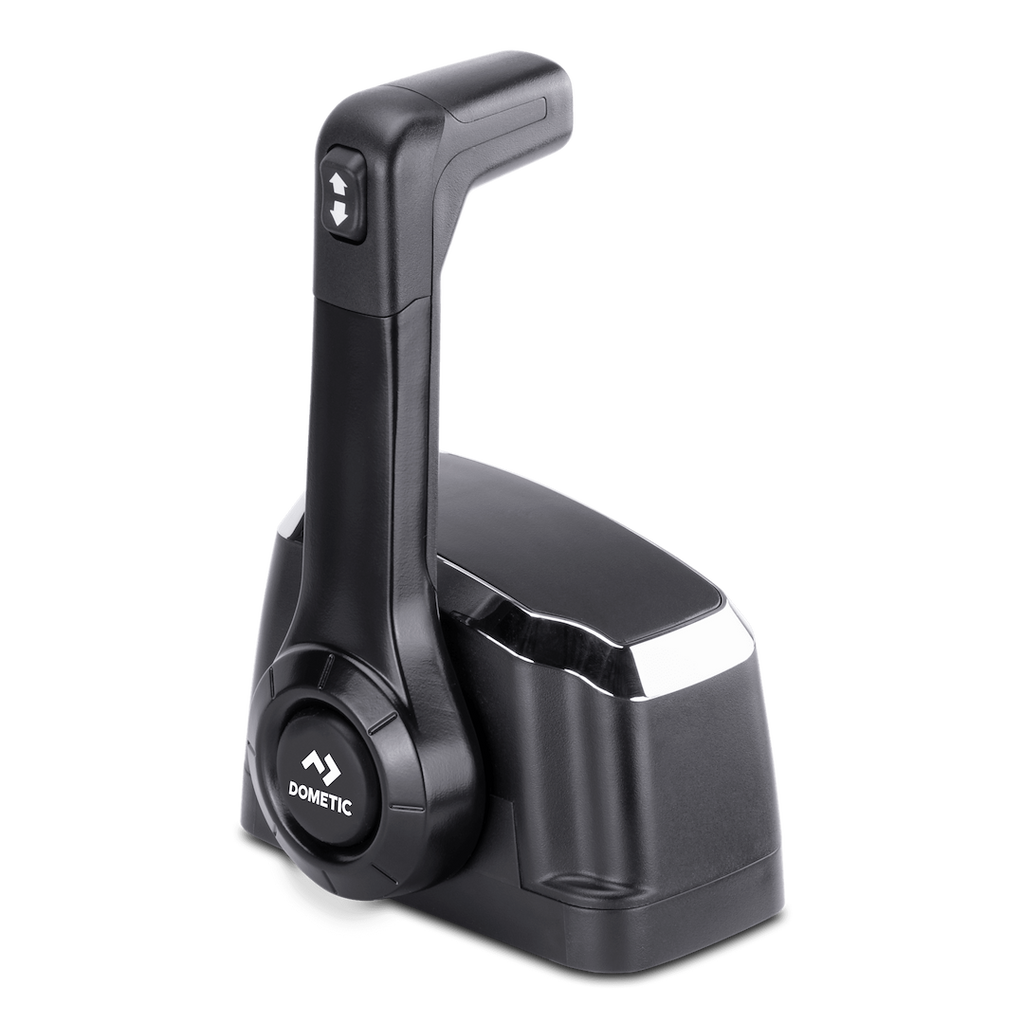

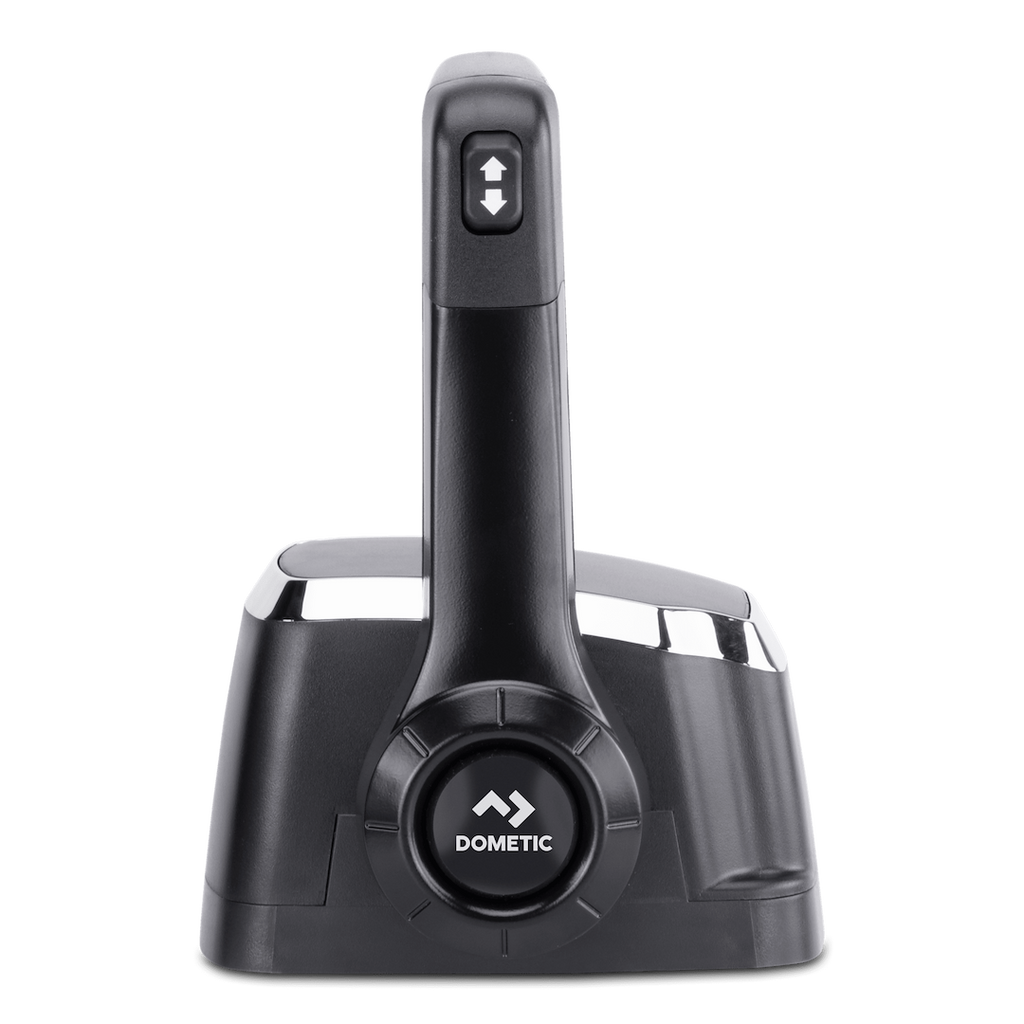

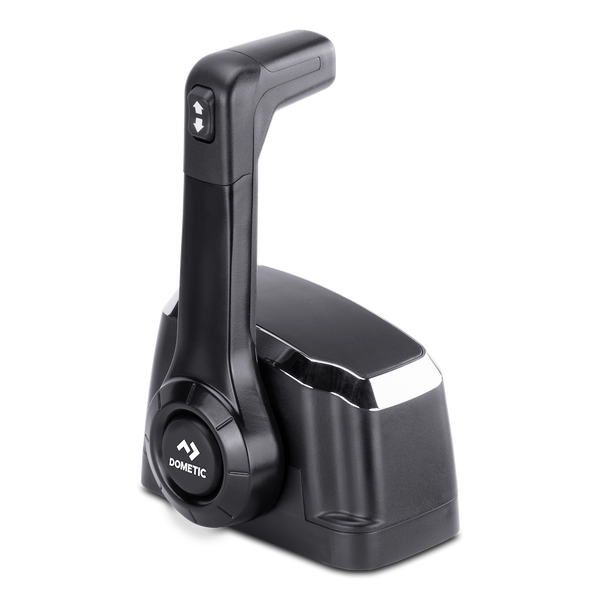

SeaStar Marine Engine Control Xtreme (MPN: CHX8641P)

Advanced ergonomics and features for superior control of marine engines.

The SeaStar Marine Engine Control Xtreme is engineered for optimal performance with most outboards, stern drives, and inboards. This top mount control features a dual function design, allowing one lever to manage both throttle and shift operations seamlessly. The ergonomic handle provides a smooth and balanced feel, enhancing user experience during operation. Designed for compatibility with both 3300 and 33C universal or OEM type control cables, the Xtreme control ensures easy installation without the need for adaptation.

Incorporating essential safety features such as start-in-gear protection and a neutral throttle warm-up function, the Xtreme control prioritizes user safety while maintaining functionality. Optional features like power trim and tilt, along with emergency cut-off switches, can be added to enhance the control's capabilities. The Xtreme control is suitable for single engine and single station combinations, and can also be utilized in dual station boats with the appropriate DS unit.

Features

• Suitable For Most Single Engine And Single Station Combinations
• Designed For Use With Both 3300 And 33C Universal And OEM Shift And Throttle Cables Connection
• Can Be Used In Dual Station Boats With The DS Unit
• Start-In-Gear Protection
• Dual-Function Control - One Lever Controls Throttle And Shift
• Trim And Tilt Options
• Drag Adjustment On All Controls: Neutral “warm Up” Button For Throttle Only Operation
• Easy Installation And Set Up

Specifications

• Manufacturer: SeaStar
• Manufacturer Part Number: CHX8641P
• Used For: Inboards, Stern Drives And Outboards
• Mounting Style: Top Mount
• Functional Type: Dual
• With Trim Switch: Yes
• With Cable: No

Technical Documents

• CHX8641P_BUL.pdf
