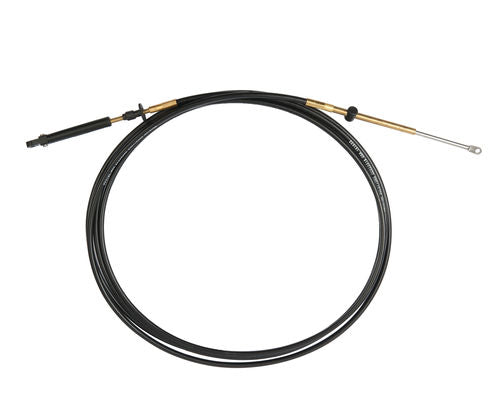

SeaStar Marine Engine Control Cable (MPN: CCX20513)

High-performance control cable for BRP and OMC engines.

The SeaStar Marine Engine Control Cable is designed for use with BRP, OMC, Johnson, Evinrude, and Gale engines from 1979 to present. This 13-foot cable features advanced XTREME technology, allowing for a minimum bend radius of 4 inches, significantly improving flexibility compared to standard cables. Constructed with stainless steel terminals and brass fittings, it offers enhanced corrosion protection, ensuring durability in marine environments.

The cable incorporates oil-tempered lay wires that provide superior strength and performance, making it suitable for complex and long cable runs. Its long-wearing HDPE liner is ultra-smooth and lubricated for life at the factory, contributing to its reliability and efficiency. Additionally, the SeaStar Marine Engine Control Cable exceeds ABYC safety standards and meets ISO, IMCI, and NMMA certification requirements, making it a trusted choice for performance and bass boats.

Features

• Uses The Existing Connection Components
• XTREME Technology With A 4 Inch Min. Bend Radius Vs An 8 Inch Min. Bend Radius For Standard Cables
• 0.033 Inch Oil Tempered Lay Wires For Superior Strength And Performance

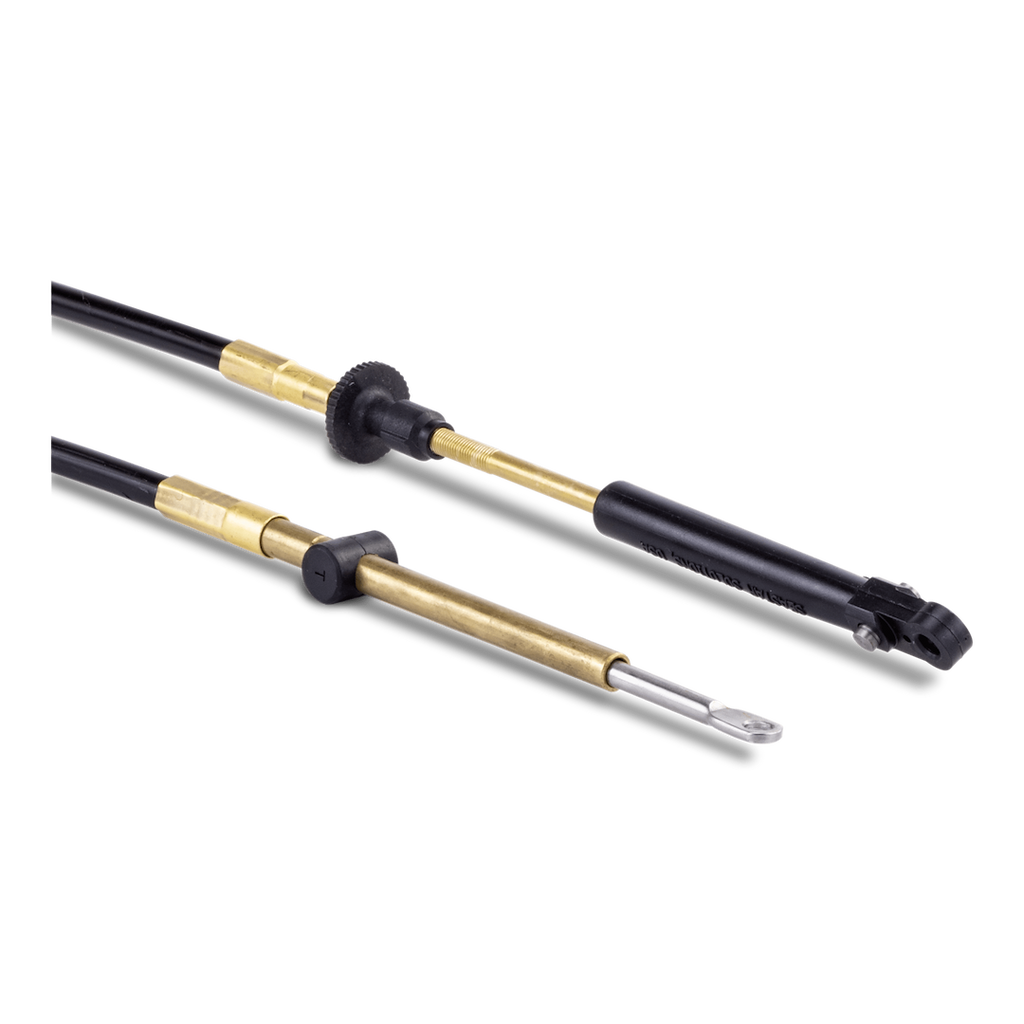

• Stainless Steel Terminals And Brass Fittings For Added Corrosion Protection
• Long Wearing HDPE Liner - Ultra Smooth And Lubricated For Life At Factory
• Exceeds ABYC Safety Standards And ISO, IMCI And NMMA Certification Requirements
• Cables Are Designed For Complex and Long Cable Runs
• Ideal For Foot Throttle Applications On Performance And Bass Boats
• Made In USA

Specifications

• Manufacturer: SeaStar
• Manufacturer Part Number: CCX20513
• Compatibility: SeaStar 1979 To Present BRP/ OMC/ Johnson/ Evinrude/ Gale With BRP/ OMC Controls
• Length (IN): 13 Feet
• Material: Stainless Steel
• Jacket Color: Black

Technical Documents

• marine_products_limited_warranty_62292.pdf
• dometic-xtreme-ccx205_9130002866_114789.pdf
