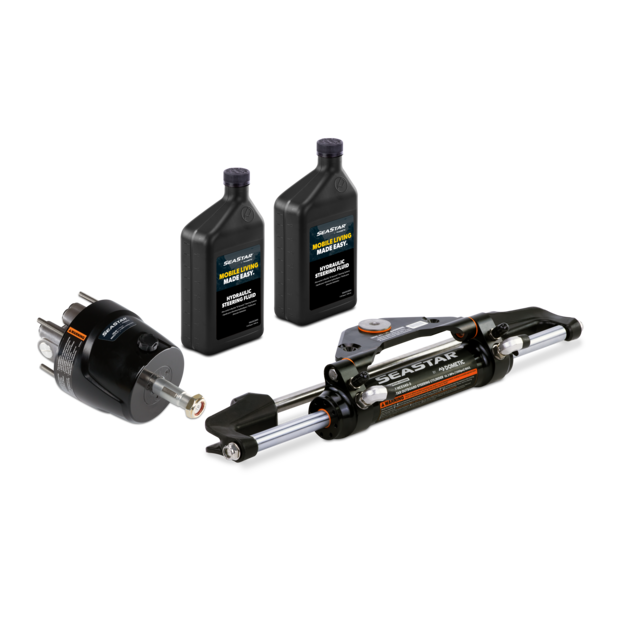

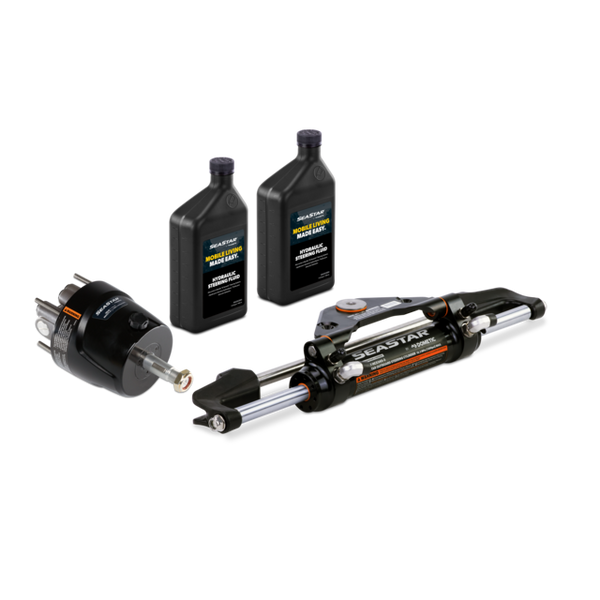

SeaStar Hydraulic Steering System (MPN: HK6400TC-4)

Experience superior control and comfort with advanced hydraulic technology.

The SeaStar Hydraulic Steering System is designed for single engine outboard applications up to 350 HP, providing unmatched steering precision and comfort. This system features a 1.7 cubic inch classic tilt helm and a pivot cylinder, ensuring smooth operation even in high-performance scenarios. The updated design includes positionable stainless steel O-ring fittings for easy hose routing and a new end gland sealing system that offers maximum protection against saltwater intrusion and compression set.

With a robust barrel design and new graphics, the SeaStar system complements modern boats and motor packages. It allows for 5 turns lock-to-lock, providing maximum steering comfort and control. The system also features 48 degrees of tilt articulation with 5 positive lock positions, ensuring adaptability to various user preferences. Additionally, it meets ABYC and NMMA certification standards, ensuring reliability and safety in marine environments.

Features

• Updated System Features Positionable Stainless Steel O-Ring Fittings For Easy Hose Routing
• New End Gland Sealing System For Maximum Protection From Saltwater And Compression Set
• 5 Turns Lock-To-Lock With 1.7 Cubic Inch Displacement Helm For Maximum Steering Comfort
• Robust Barrel Design And NEW Graphics Compliment New Boats And Motor Packages
• 48 Degree Of Tilt Articulation, 5 Positive Lock Positions And Factory Installed Lubrication
• Meets ABYC And NMMA Certification Standards

Specifications

• Manufacturer: SeaStar
• Manufacturer Part Number: HK6400TC-4
• Compatibility: Single Engine Outboard Applications Up To 350 HP
• Universality: Semi-Universal
• Type: Hydraulic Steering
• Number Of Turns: 5
• Includes Helm: Yes
• Includes Cylinder: Yes
• Includes Hoses: No
• Includes Oil: Yes
