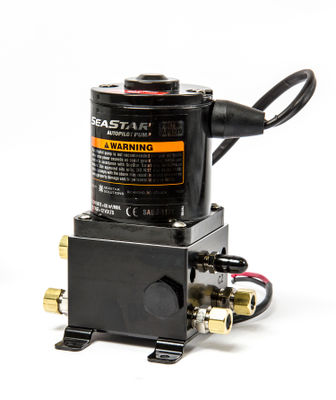

SeaStar Autopilot Pump (MPN: AP2419)

Efficiently reduces steering effort in high torque applications.

The SeaStar Autopilot Pump is designed to enhance steering efficiency in hydraulically steered boats, particularly in heavy or high torque applications. This fixed flow, reversible pump utilizes an internal hydraulic gear mechanism that minimizes vibration and noise, ensuring a smooth operation. Available in both 12 and 24 volt configurations, it offers versatility in installation and can function as a standalone unit or be integrated with existing SeaStar Power Assist systems without the need to modify hydraulic lines.

With a maximum pressure rating of 1000 PSI and a cylinder capacity ranging from 4.9 to 12.5 cubic inches, this pump is engineered for robust performance. The compact design and low power consumption make it an efficient choice for marine applications. Additionally, the SeaStar Autopilot Pump is compliant with ABYC, CE, and J1171 standards, ensuring safety and reliability in marine environments.

The 24 inch power cable allows for flexible installation options, while the long life DC motor contributes to the durability of the unit. The pump's superior corrosion resistance further enhances its suitability for marine use, making it a dependable component for boat steering systems.

Features

• Compact Design
• Low Power Consumption
• Superior Corrosion Resistance
• Quiet Operation
• Stand Alone Or Mounts To SeaStar Power Assist Unit
• ABYC, CE And J1171 Compliant
• Long Life DC Motor

Specifications

• Manufacturer: SeaStar
• Manufacturer Part Number: AP2419
• Compatibility: Hydraulically Steered Boats
• Maximum Pressure: 1000 PSI
• Cylinder Capacity: 4.9 Cubic Inch To 12.5 Cubic Inch
• Wire Length: 24 Inch Power Cable
• Voltage Rating: 24 Volt
• Ampere Rating: 2 Amp To 4 Amp
• Mounting Type: Floor Mount

Technical Documents

• pas1-SeaStar-Autopilot_Pump.pdf
