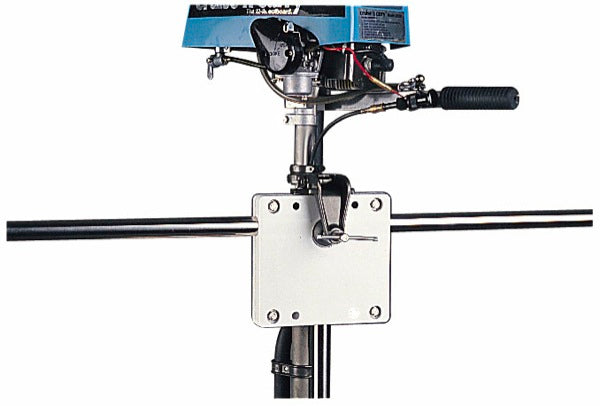

Sea Dog Outboard Motor Mount (MPN: 327150-1)

Securely mount 2-cycle outboards up to 8 HP with ease.

The Sea Dog Outboard Motor Mount is engineered to securely hold small, 2-cycle outboard motors up to 8 horsepower on the stern rail. This versatile rail mount bracket is compatible with both 7/8 inch and 1 inch rails, accommodating various rail configurations including those with 90 degree tee fittings. Unlike many other motor brackets, this design features a two-piece unit with extra holes for added security, allowing for the use of a recommended chain to keep the motor in place.

Constructed from UV stabilized polypropylene, this motor mount is built to withstand the harsh marine environment, ensuring durability and longevity. It complies with ABYC standards, making it a reliable choice for marine applications. In addition to its primary function, this mount can also serve as a platform for barbecues, down rigger brackets, fish cleaning tables, and more, enhancing its utility on board.

Included with the mount are all necessary fasteners for installation, making setup straightforward. The dimensions of the mount are 6-11/16 inches in length, 6-11/16 inches in width, and 1-9/16 inches in thickness, providing a compact yet robust solution for outboard motor mounting.

Features

• UV Stabilized Polypropylene Construction
• The Two-Piece Unit Features Extra Holes, Enabling The Use Of A Recommended Chain To Secure The Motor
• Withstand The Harsh Marine Environment
• Complies With ABYC Standard

Specifications

• Manufacturer: Sea Dog
• Manufacturer Part Number: 327150-1
• Used To: Mount 2-Cycle Up To 8 HP Outboard Motors
• Universality: Semi-Universal
• Type: Rail Mount Bracket
• Dimensions: 6-11/16 Inch Length x 6-11/16 Inch Width x 1-9/16 Inch Thickness
• Color: White
• Material: Polypropylene
• Includes: With Mounting Hardware

Technical Documents

• I-327150.pdf
