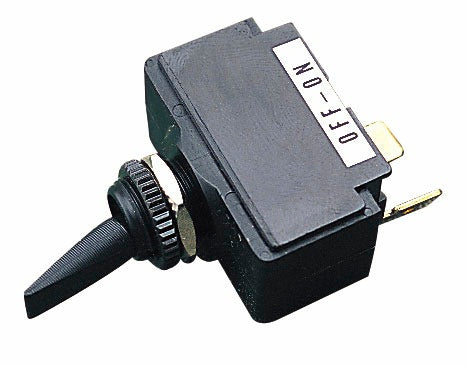

Sea Dog Multi Purpose Toggle Switch (MPN: 420109-1)

Durable and versatile switch for marine and automotive applications.

The Sea Dog Multi Purpose Toggle Switch is designed for reliable operation in various applications, particularly in marine environments. This momentary switch features a single pole double throw design with three blade terminals, allowing for efficient electrical connectivity. Constructed from stamped brass, injection molded nylon, and polycarbonate, it ensures durability and resistance to water exposure.

With a current rating of 15 amperes and a voltage of 12 volts DC, this switch is suitable for a range of devices. The non-illuminated toggle design includes a locking ring with a lever seal and a protruding cap nut, enhancing its functionality and ease of use. Installation is straightforward, making it a practical choice for both professionals and DIY enthusiasts.

Manufactured in the USA, the Sea Dog Multi Purpose Toggle Switch reflects the company's commitment to quality and innovation in marine hardware. As a product of Sea-Dog Corporation, it embodies over a century of expertise in providing top-quality items for various applications.

Features

• Constructed Of Stamped Brass, Injection Molded Nylon, And Polycarbonate
• Water Resistant Toggle Switches Feature A Locking Ring With Lever Seal And A Protruding Cap Nut
• Made In USA
• Easy To Install For A Variety Of Applications

Specifications

• Manufacturer: Sea Dog
• Manufacturer Part Number: 420109-1
• Design: Toggle
• Activation: Momentary
• Switch Positions: On-Off-On
• Number Of Electrical Connectors: 3
• Operation: Single Pole Double Throw
• Current Rating: 15 Amp
• Number Of Switches: 1
• Color: Black
• Illumination: Non-Illuminated
• Marine: Yes
• Voltage: 12 Volt
• Connector Gender: Male
• Terminal Type: Blade
• Material: Brass/ Nylon/ Polycarbonate

Technical Documents

• 420101.pdf
