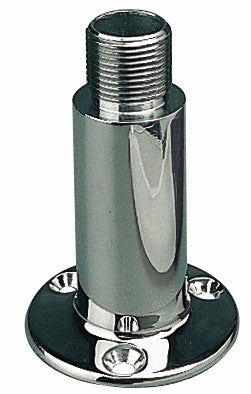

Sea Dog Antenna Mount (MPN: 329510-1)

Durable stainless steel mount for various antennas and radar arches.

The Sea Dog Antenna Mount is designed for versatility and durability, accommodating a range of antennas including TV, Loran, GPS, and VHF. Constructed from corrosion-resistant investment cast 316 stainless steel, this mount ensures longevity and reliability in marine environments. The fixed antenna base features a flange mount with a recess that, when filled with silicone sealant, creates a watertight seal, enhancing the protection of your equipment.

This mount allows for direct antenna wire feed through the base, eliminating the need for a separate cable grommet, which simplifies installation and reduces potential points of failure. It accepts any standard antenna with 1 inch to 14 threads, making it a practical choice for various applications. The 2-7/8 inch round base provides a stable foundation, ensuring that your antennas remain securely mounted even in challenging conditions.

Features

• Constructed Of Corrosion Resistant Investment Cast 316 Stainless Steel
• Fixed Antenna Base Features A Flange Mount Base With A Recess Which, When Filled With Silicone Sealant, Will Form A Watertight Seal
• Designed To Allow Antenna Wire To Feed Directly Through The Base, Eliminating The Need For A Separate Cable Grommet
• Accepts Any Standard Antenna With 1 Inch To 14 Threads, But Is Ideal For TV, Loran, GPS, VHF Antennas, And Radar Arches

Specifications

• Manufacturer: Sea Dog
• Manufacturer Part Number: 329510-1
• Compatibility: AIS/ VHF Antennas
• Mounting Type: Bolt-On
• Thread Size: 1 Inch - 14 Male

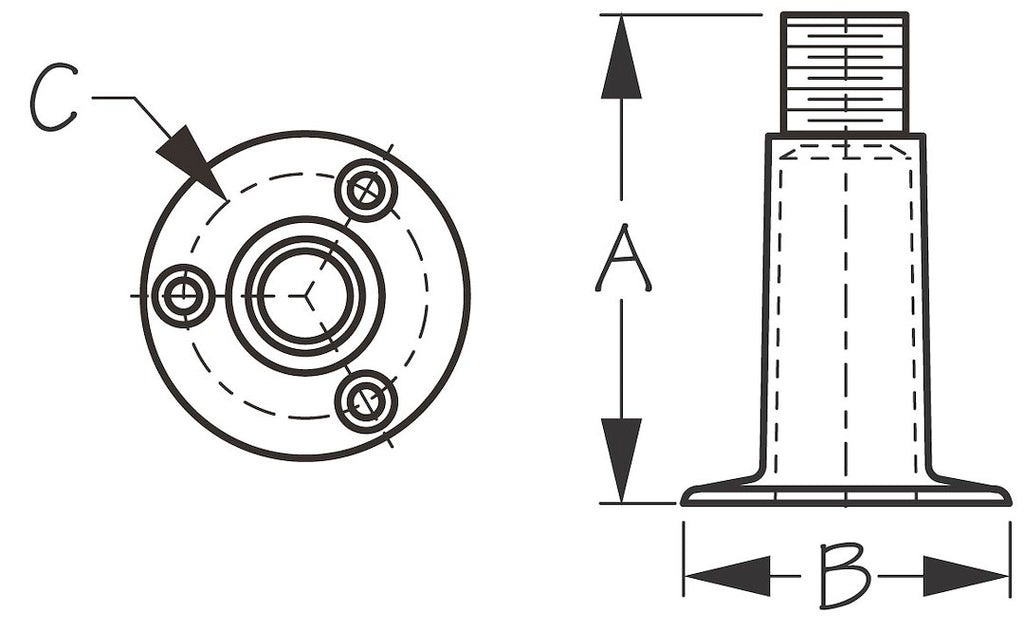

• Base Size (IN): 2-7/8 Inch Diameter
• Base Shape: Round
• Ball Size (IN): Without Ball
• Ball Material: Without Ball
• Finish: Polished
• Color: Silver
• Material: Stainless Steel
• Estimated Install Time (Hours): 0.25
