Control 12 Volt Accessories with Advanced Touchscreen Technology
The Scosche Power Management System is designed to control any 12 volt accessories on vehicles, SxS, boats, and tractors. With a maximum capacity of 120 amps, this system features 8 outputs, including 2 rated at 30 amps each and 6 rated at 10 amps each, ensuring versatile power distribution for various applications. The power module is rated IPX7 waterproof, making it suitable for use in challenging environments, while the heavy-duty aluminum construction enhances durability.

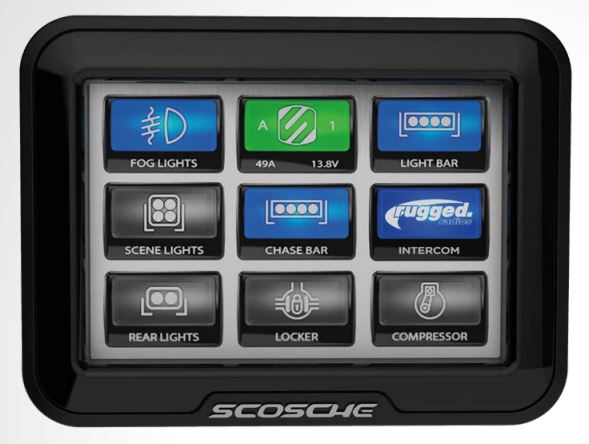

Equipped with a 3.5 inch touchscreen panel, the system provides on-screen LED status indicators for overcurrent, open circuit, short circuit, thermal overload, and low voltage conditions. This allows users to monitor the system's performance in real-time. The splashproof control panel offers multiple mounting options, and the system can be daisy-chained with up to three power modules to control up to 24 outputs from any screen, providing flexibility in installation and operation.
The Scosche Power Management System also allows for programmable switches, which can be set for latched, momentary, strobe, or timed functions. Additionally, lighting outputs can be dimmed from 100 to 0 percent, providing precise control over illumination. Automatic power-up upon vehicle startup ensures that the system is ready for use whenever needed.
Features
- 120 Ampere Power Distribution Module With Touchscreen Control Panel
- 8 Programmable Channels
- Power Module Rated IPX7
- Splashproof Control Panel Offers Multiple Mounting Options
- The M8RIX System Can Be Used With Up To Two Control Panels In Order To Control Outputs From Two Different Locations On Your Vehicle
- Daisy-Chain Up To Three Power Modules For Control Of Up To 24 Outputs, From Any Screen
- Switches Can Be Programmed For: Latched, Momentary, Strobe, Timed
- Lighting Outputs Can Be Dimmed From 100 To 0Percent
- Automatic Power-Up Upon Vehicle Start Up
Specifications
- Manufacturer: Scosche Industries
- Manufacturer Part Number: 0255M8RS1-XC0
- Compatibility: Control Any 12 Volt Accessories On Vehicle/ SxS/ Boat And Tractor
- Battery Type: 12 Volt
- Power Capacity: 120 Amp
- Insulation: IPX7
