Durable and waterproof cable seal for various cable sizes and connectors.

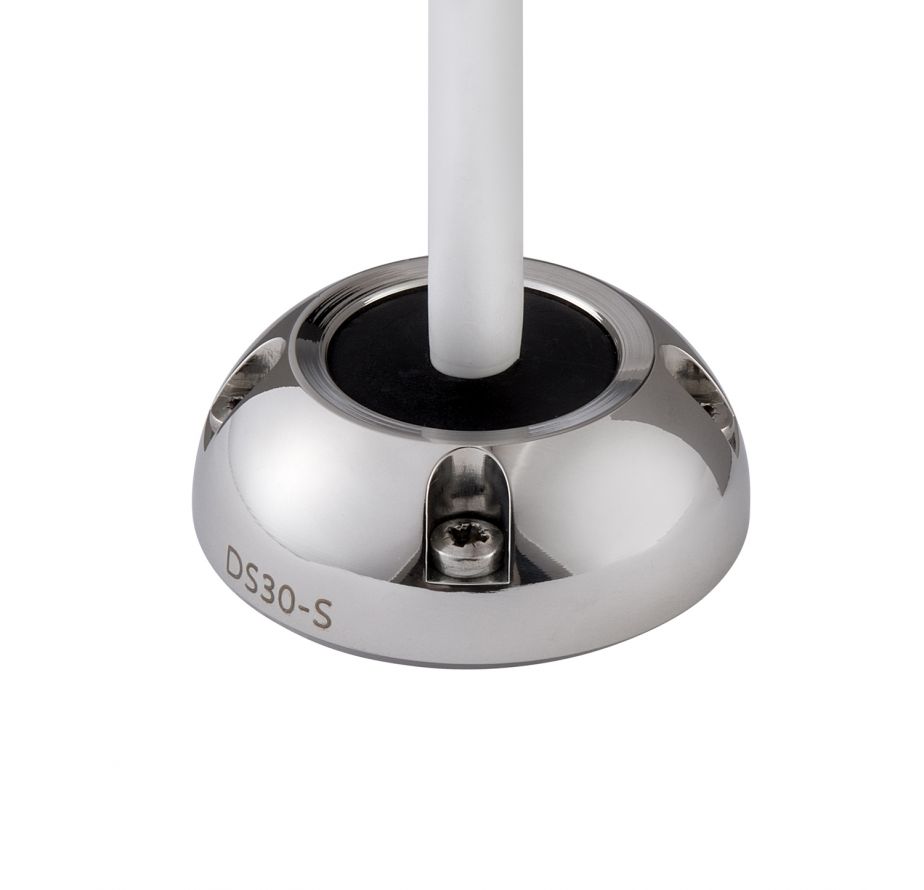

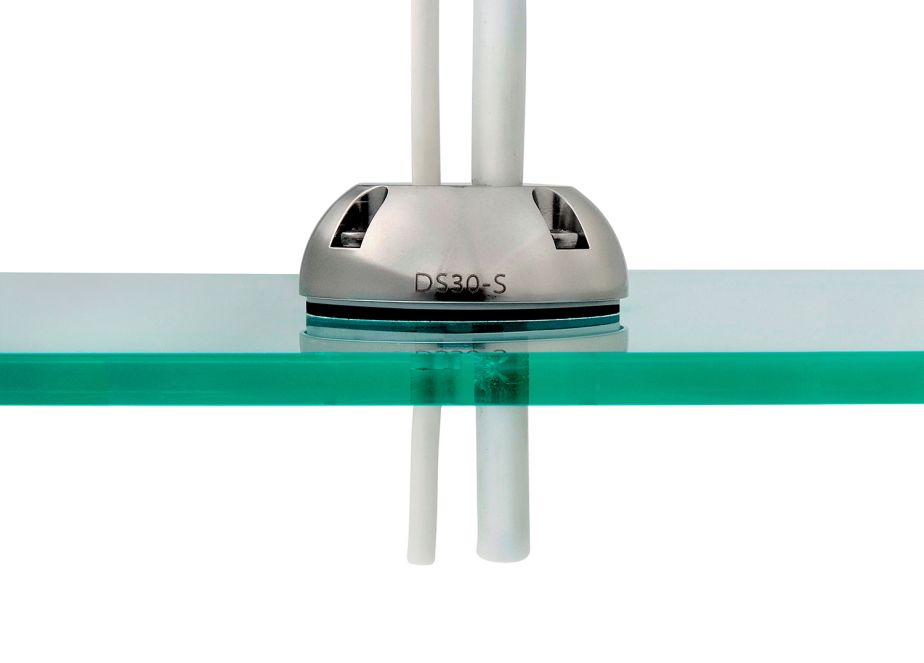

The Scanstrut Vertical Entry Cable Gland is designed to accommodate cables ranging from 0.35 inch to 0.55 inch in diameter, as well as connectors up to 1.18 inch. This product features a multi-functional dome shape that enhances impact resistance while providing a sleek aesthetic. The tapered bung ensures a watertight installation, making it suitable for environments where moisture protection is critical.
Constructed from 316 stainless steel, this cable gland is built to withstand harsh conditions and is IP68 rated, ensuring complete waterproofing. The design includes captive nuts in the base for straightforward assembly, allowing for quick and reliable installation without the need to remove cable connectors, thanks to its split-seal option. Each unit is supplied with a closed-cell base seal, guaranteeing 100 percent waterproof performance.
The Scanstrut Vertical Entry Cable Gland is SCA certified, reflecting its quality and reliability. This single unit is ideal for various applications where secure and watertight cable management is essential.
Features
- Multi-Functional Dome Shape
- Watertight Installation: Tapered Bung Forms A Watertight Seal
- All Units Are Supplied With A Closed-Cell Base Seal - 100 Percent Waterproof
- All Models Have Been IP68 Tested And Approved
- No Need To Remove Cable Connectors: Split-Seal Option Does Not Require Connector Removal During Install
- SCA Certified
- Easy And Reliable Installation
Specifications
- Manufacturer: Scanstrut
- Manufacturer Part Number: DS30-S
- Cable Size: 0.35 Inch To 0.55 Inch
- Color: Silver
- Material: Stainless Steel
- Universality: Semi-Universal
- Waterproof Rating: IP68 Waterproof
- Sealable: Yes
- Quantity: Single
- Includes: With 316 Stainless Steel Fixings/ Split Bungs/ Waterproof 3M Gasket
Technical Documents
- DS30_amp_DS40_Installation_Instructions_Issue_4_1.pdf
- Warranty___Support___Scanstrut.pdf
- DS30_amp_DS40_Installation_Instructions_Issue_4_1.pdf
- DS30-S-Techincal-Drawing.pdf
