Scanstrut Radar Antenna Mount (MPN: LMB-F1)

Enhance radar performance with a self-levelling aluminum mount.

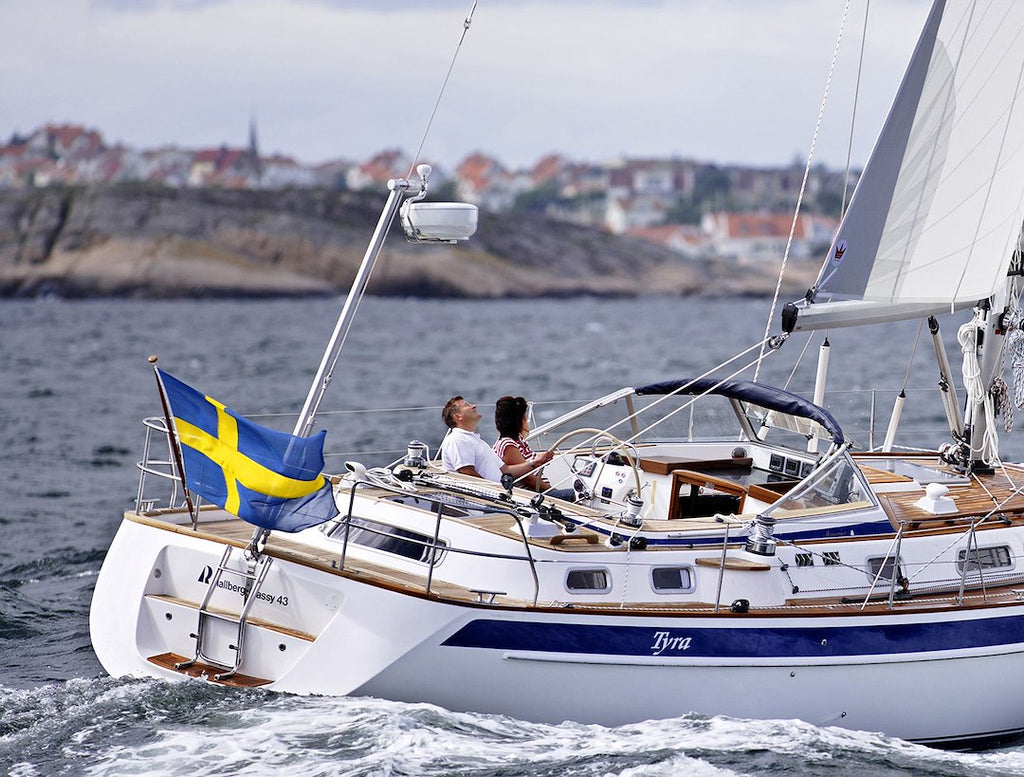

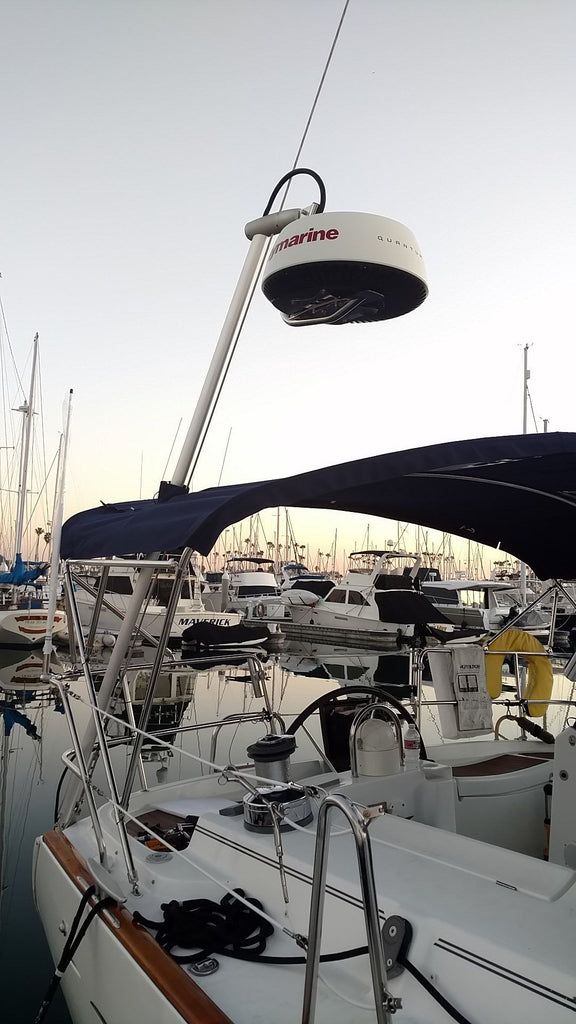

The Scanstrut Radar Antenna Mount is engineered to optimize radar functionality for various marine applications. Standing at 2.6 meters high, this mount positions the radar forward of the backstay, minimizing interference and maintaining a clear deck. Constructed from marine-grade aluminum, it is compatible with leading radar brands including Garmin, Raymarine, and B&G, ensuring versatility and reliability in performance.

This mount features a hydraulic damping system that automatically adjusts to significant changes in the boat's heel angle, providing stability without the need for maintenance or power. The bespoke mounting pole and high-strength universal base are designed to eliminate loading on the backstay, making it suitable for any yacht configuration. The included nylon backstay bushing allows for easy cable tension adjustments, enhancing installation flexibility.

With its robust design and thoughtful engineering, the Scanstrut Radar Antenna Mount is a practical solution for mounting radar systems. It ensures that your radar is positioned higher for improved performance while maintaining the integrity of your vessel's structure.

Features

• Hydraulic Damping: The Main Levelling Unit Features A Fine-Tuned Damping System Which Reacts To Major Changes In Heel Angle Of The Boat
• Hydraulic Damping: Entirely Maintenance-Free And No Power Is Required

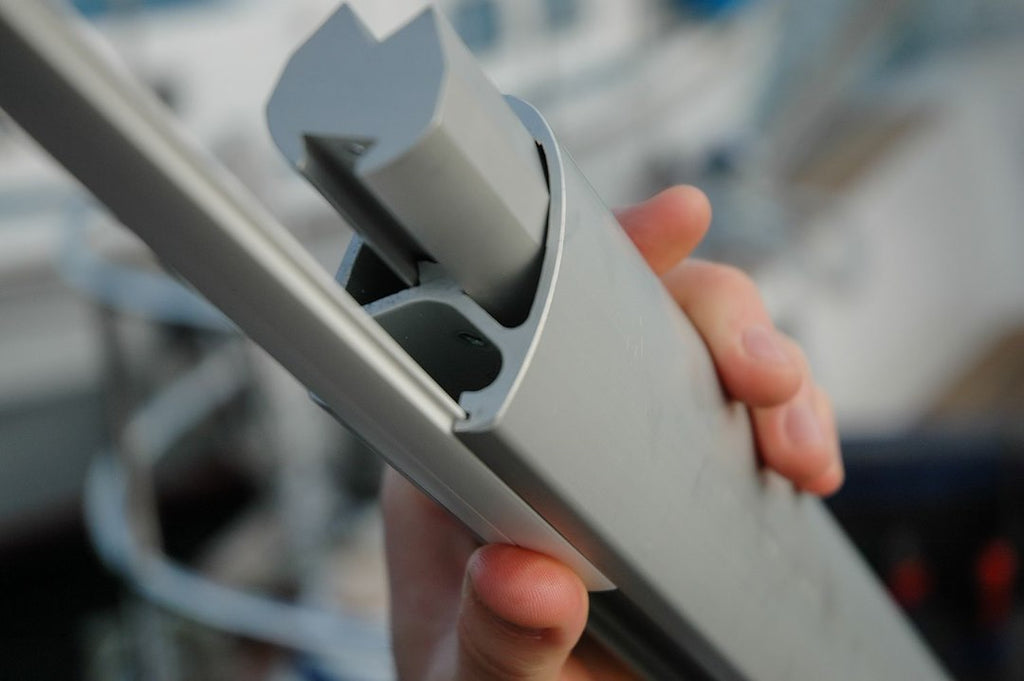

• Bespoke Mounting Pole
• High Strength Universal Base For Mounting Pole Eliminates Loading On Backstay

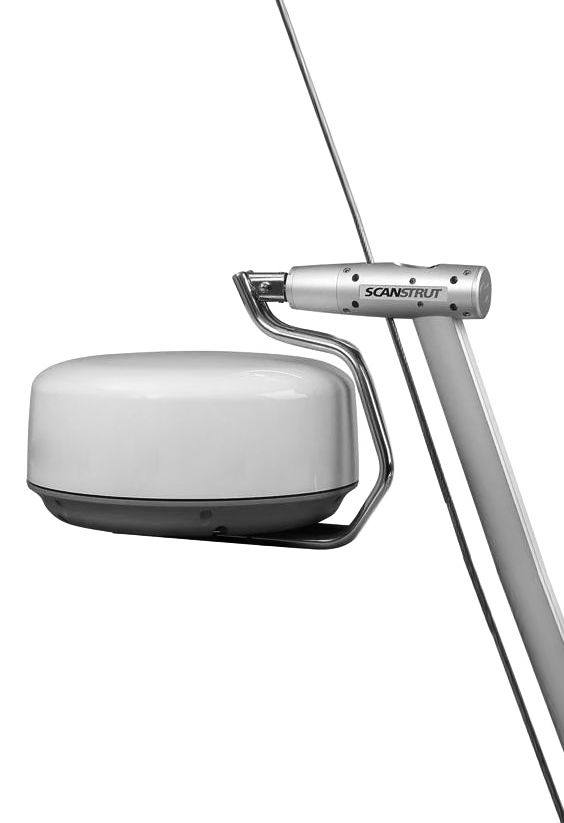

• Suitable For Any Yacht: Stainless Radome Cradle Has A Fine Tune Adjustment For Backstay Angle And The Product Can Be Installed On Both Adjustable And Split Backstays
• Nylon Backstay Bushing Supplied: Clamps Around Backstay Allowing Cable Tension To Be Adjusted
• Mount Your Radar Higher

Specifications

• Manufacturer: Scanstrut
• Manufacturer Part Number: LMB-F1
• Compatibility: Garmin/ Raymarine/ B&G/ Humminbird/ Lowrance/ Nobeltec/ Sitex/ Simrad Radar Antenna
• Mounting Type: Deck/ Transom/ Chainplate Mount
• Height: 102.36 Inch
• Material: Aluminum
• Color: Gray

Technical Documents

• LMB-EXTSHORT_instructions_Issue_7.pdf
• Warranty___Support___Scanstrut.pdf
• LMB-F1_Issue_2.pdf
• LMB-F1_Bulletin.pdf
• LMB-EXTSHORT_instructions_Issue_7.pdf
