Enhance radar performance with a durable aluminum design.

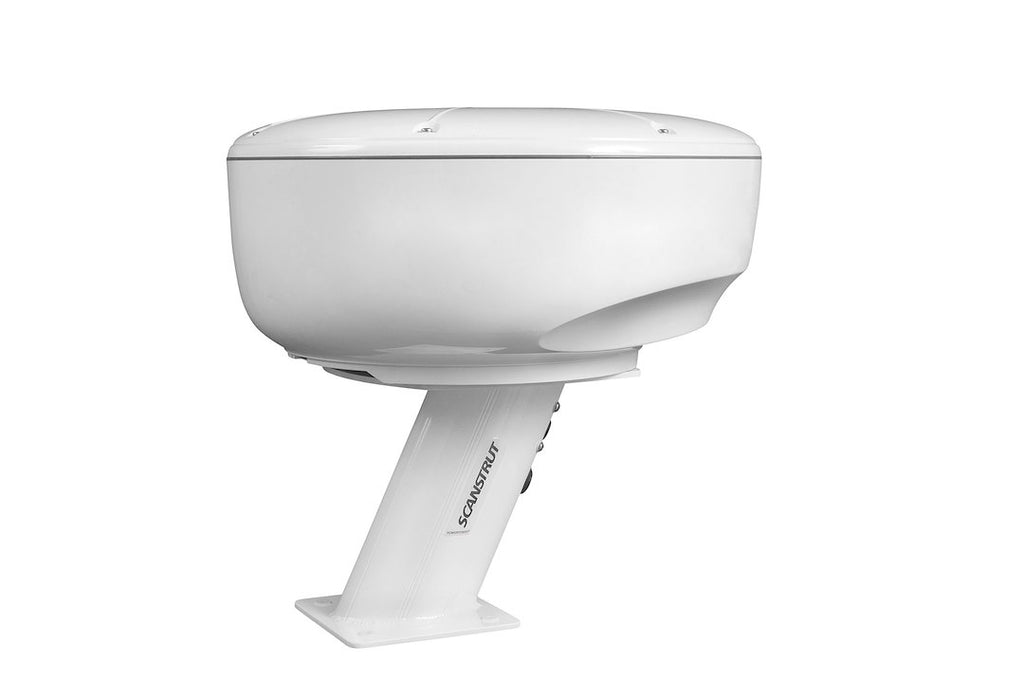

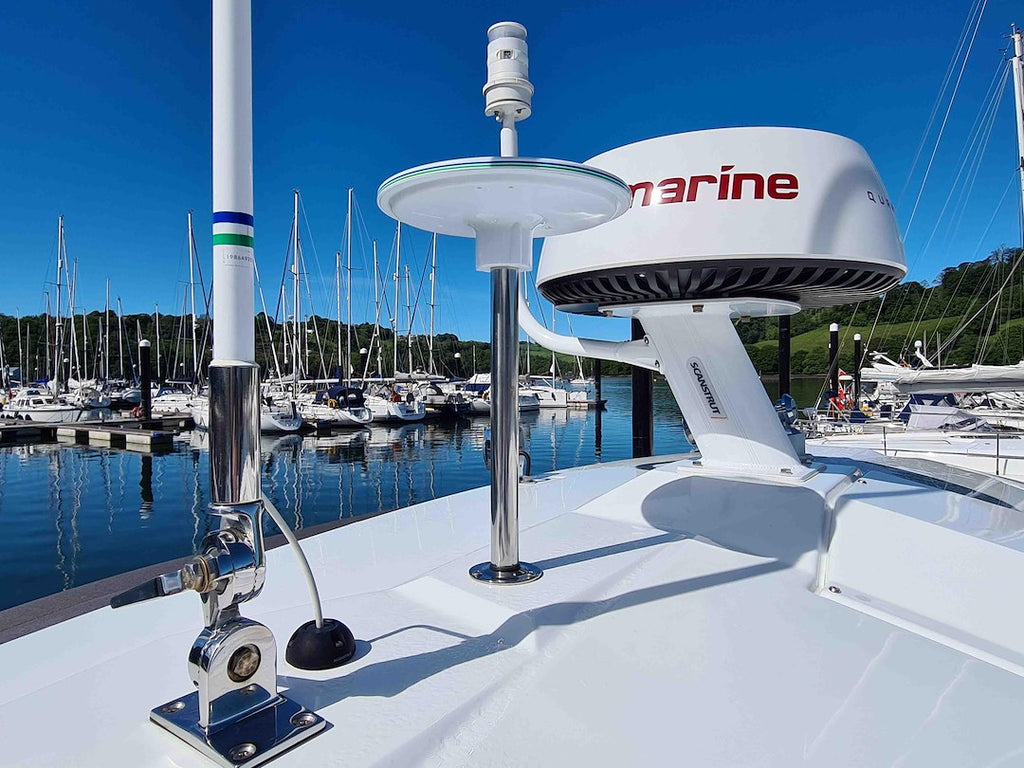

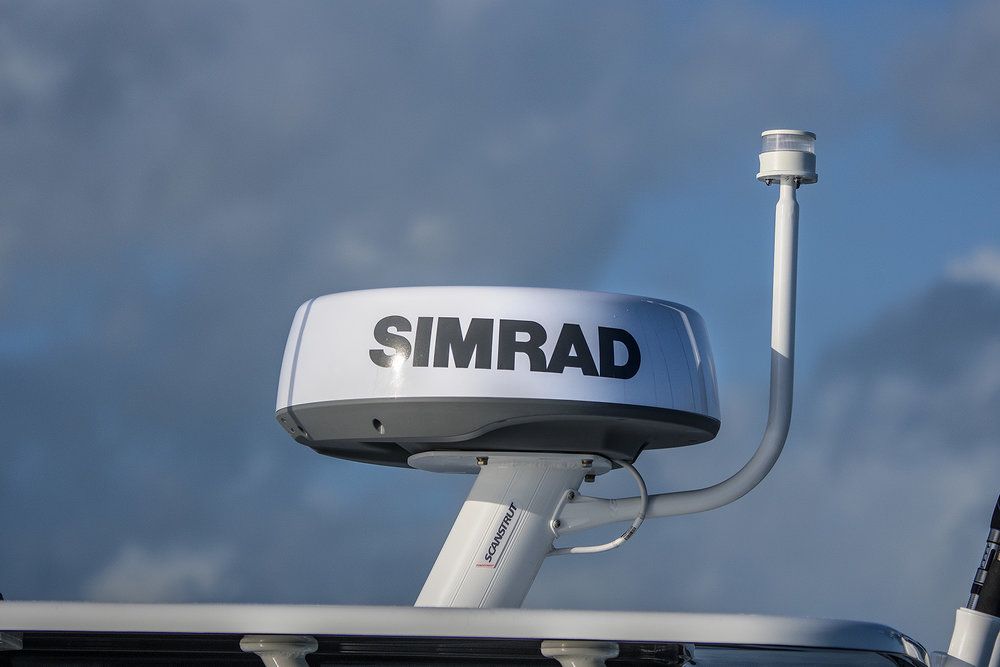

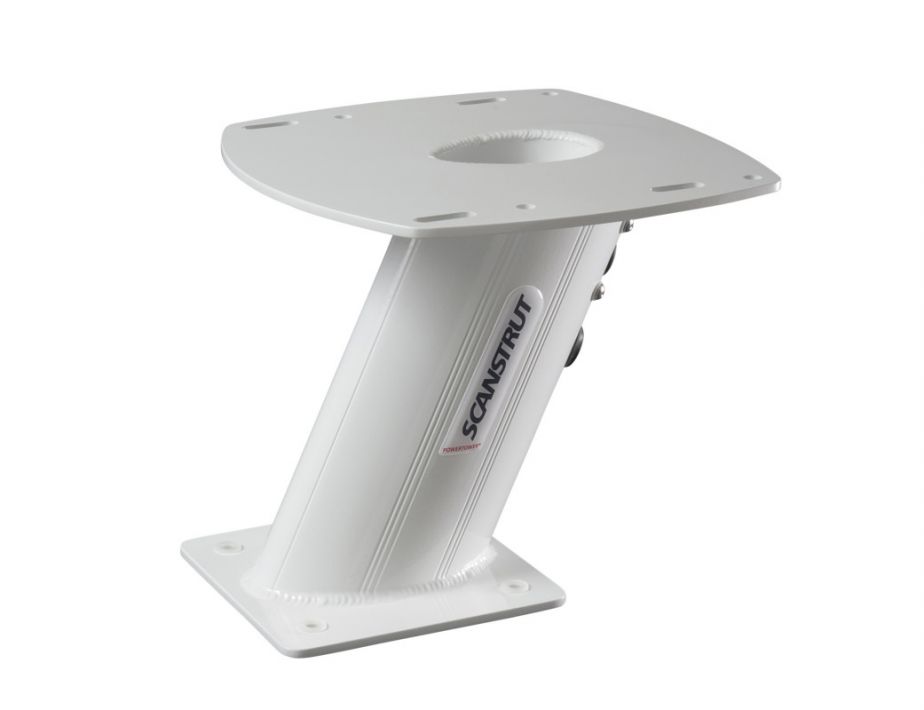

The Scanstrut Radar Antenna Mount is engineered for optimal radar installation on powerboats. Constructed from marine-grade aluminum, this mount is designed to accommodate the latest radar systems from leading brands such as Garmin, Lowrance, Raymarine, and Simrad. With a height of 9.84 inches and a width of 11.42 inches, it provides a robust and stable platform for radar antennas, ensuring a clear view of the horizon in various marine conditions.
This AFT leaning mount features pre-drilled holes for easy installation, allowing users to fasten their radar directly to the PowerTower using the existing mounting bolts. The innovative design includes a Scanstrut cable seal that maintains a waterproof barrier around the radar's cables, eliminating the need to cut plugs during installation. The mount's unique 4-step marine paint system ensures durability and resistance to harsh marine environments.
The PowerTower's 25-degree rake enhances both aesthetics and performance, while the option to add accessory light bars provides versatility for different GPS, VHF, and navigation light configurations. Additionally, an accessory wedge is available to adjust the pitch of the radar when the boat is on plane, further optimizing radar functionality.
Features
- Pre-Drilled Mounting Holes Allow The Radar To Fasten Straight To The PowerTower With It's Own Mounting Bolts
- No Need To Cut The Radar's Plugs Off To Install, Simply Use The Scanstrut Cable Seal To Ensure A Waterproof Seal Around The Radars Cables
- Paint Finishes Complies With Our Unique 4 Step Marine Paint System
- Aft Leaning Designs With A 25-Degree Rake For The Ultimate Performance Look
- Range Of Accessorize Light Bars Can Be Bolted To The Back Of The PowerTower For Different GPS, VHS And Navlight Configurations
- An Accessory PowerTower Wedge Is Available To Improve The Pitch Of The Radar While The Boat Is Up On The Plane
Specifications
- Manufacturer: Scanstrut
- Manufacturer Part Number: APT-250-01
- Compatibility: B&G/ Garmin/ Humminbird/ Lowrance/ Raymarine/ Simrad/ Sitex Radar Antenna & KVH Satellite TV Antenna
- Mounting Type: AFT Leaning Mount
- Height: 9.84 Inch
- Material: Aluminum
- Color: White
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
