Scanstrut Cable Gland (MPN: DS6-P)

Compact vertical entry cable seal for various cable sizes.

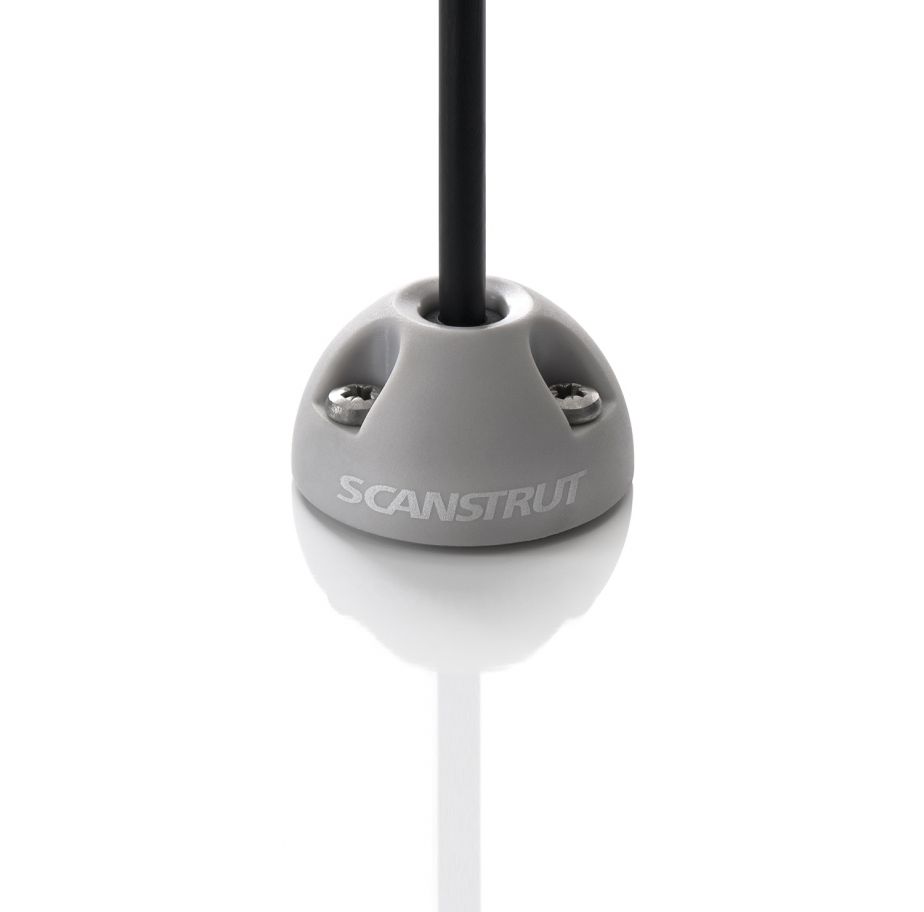

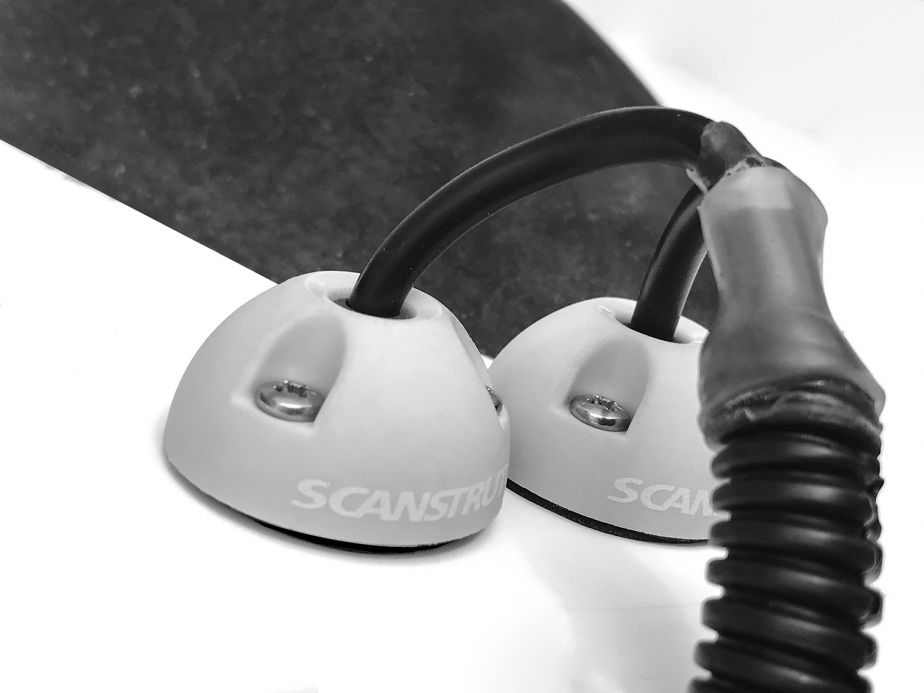

The Scanstrut Cable Gland is designed to facilitate the passage of cables ranging from 0.08 inch to 0.24 inch. This product features a compact and aesthetic dome-shaped profile that enhances impact resistance while ensuring a secure fit. The captive nuts in the base allow for straightforward assembly, making installation efficient and reliable.

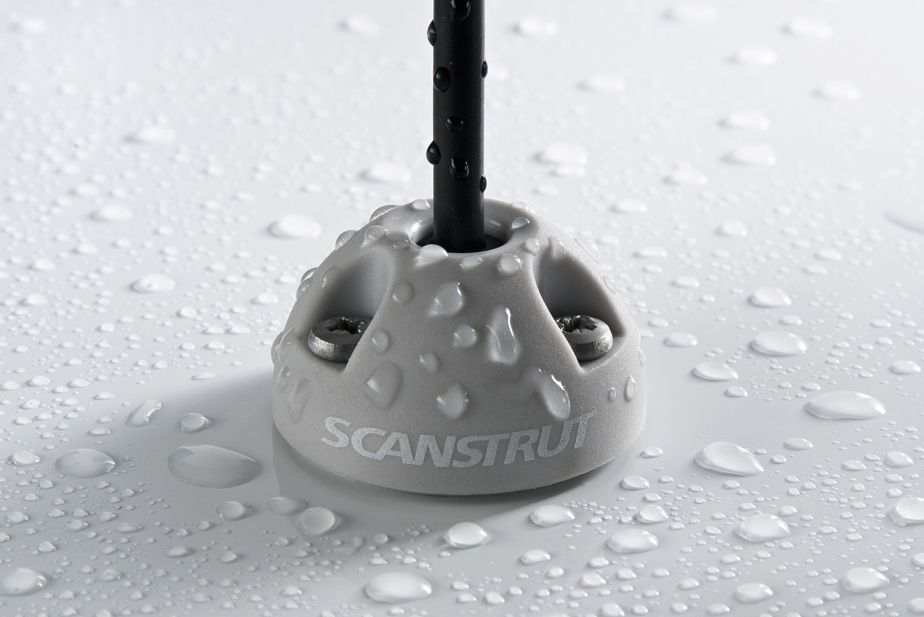

This cable gland is engineered for watertight installation, utilizing a tapered bung that forms a robust seal. Each unit is equipped with a closed-cell base seal, ensuring 100 percent waterproof performance. The product has been rigorously tested and approved to meet IP68 standards, confirming its suitability for demanding environments.

One of the key advantages of the Scanstrut Cable Gland is its split-seal option, which allows for installation without the need to remove cable connectors. This feature simplifies the installation process, making it a practical choice for various applications. Additionally, the product is SCA certified, further validating its quality and reliability.

Features

• Multi-Functional Dome Shape
• Watertight Installation: Tapered Bung Forms A Watertight Seal
• All Units Are Supplied With A Closed-Cell Base Seal - 100 Percent Waterproof
• All Models Have Been IP68 Tested And Approved
• No Need To Remove Cable Connectors: Split-Seal Option Does Not Require Connector Removal During Install
• SCA Certified
• Easy And Reliable Installation

Specifications

• Manufacturer: Scanstrut
• Manufacturer Part Number: DS6-P
• Cable Size: 0.08 Inch To 0.24 Inch
• Color: Gray
• Material: Plastic
• Universality: Semi-Universal
• Waterproof Rating: IP68 Waterproof
• Sealable: Yes
• Quantity: Single

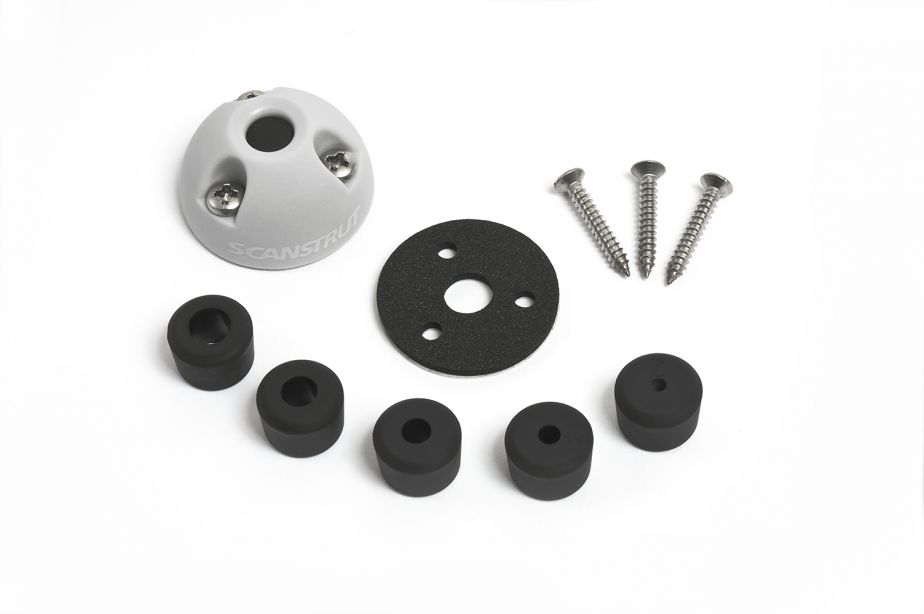

• Includes: With 316 Stainless Steel Fixings/ Split Bungs/ Waterproof 3M Gasket

Technical Documents

• Scanstrut-DS6-Installation-Instruction.pdf
• Warranty___Support___Scanstrut.pdf
• Scanstrut-DS6-technical-drawing.pdf
