Scanstrut Cable Gland (MPN: DS21B-P)

Durable and waterproof cable gland for secure installations.

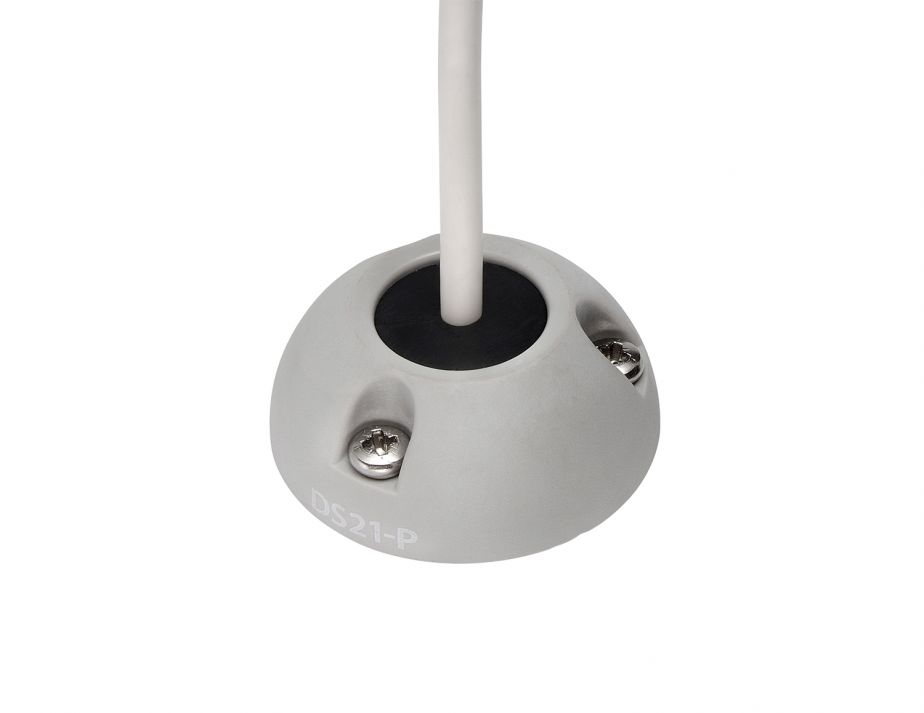

The Scanstrut Cable Gland is designed to facilitate the passage of cables ranging from 0.16 inch to 0.35 inch in diameter, accommodating connectors up to 0.83 inch. This product features a robust plastic construction with a gray finish, ensuring both durability and aesthetic appeal. The dome-shaped profile enhances impact resistance while providing a watertight installation through its tapered bung, which forms a reliable seal against water ingress.

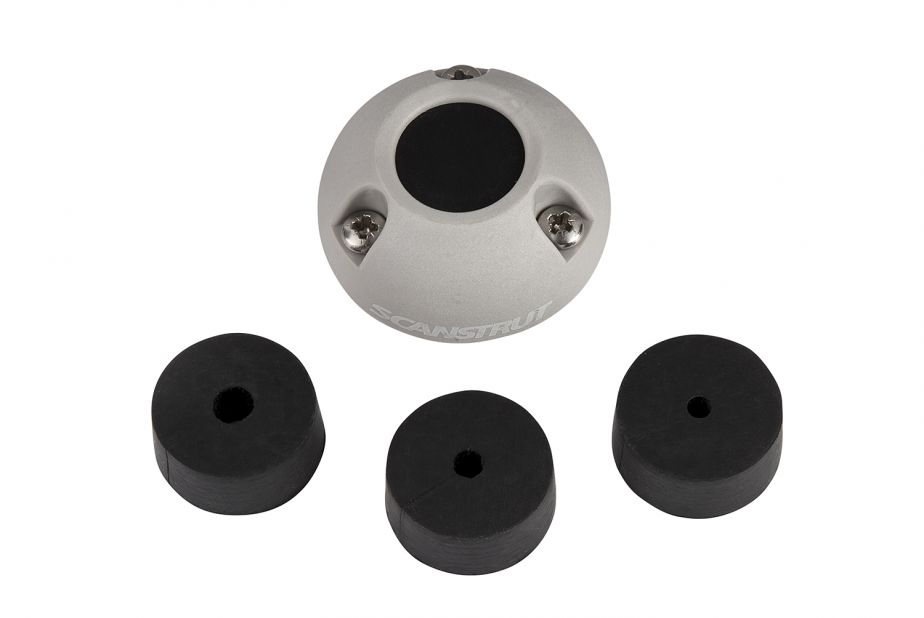

This cable gland is IP68 rated, confirming its capability to withstand submersion in water, making it suitable for various applications where moisture protection is critical. The design includes captive nuts in the base for straightforward assembly, and the split-seal option allows for installation without the need to remove existing cable connectors. Each unit is supplied with a closed-cell base seal and includes 316 stainless steel fixings, split bungs, and a waterproof 3M gasket, ensuring a comprehensive solution for secure and waterproof cable management.

Features

• Multi-Functional Dome Shape
• Watertight Installation: Tapered Bung Forms A Watertight Seal
• All Units Are Supplied With A Closed-Cell Base Seal - 100 Percent Waterproof
• All Models Have Been IP68 Tested And Approved
• No Need To Remove Cable Connectors: Split-Seal Option Does Not Require Connector Removal During Install
• SCA Certified
• Easy And Reliable Installation

Specifications

• Manufacturer: Scanstrut
• Manufacturer Part Number: DS21B-P
• Cable Size: 0.16 Inch To 0.35 Inch
• Color: Gray
• Material: Plastic
• Universality: Semi-Universal
• Waterproof Rating: IP68 Waterproof
• Sealable: Yes
• Quantity: Single
• Includes: With 316 Stainless Steel Fixings/ Split Bungs/ Waterproof 3M Gasket

Technical Documents

• DS21_DS16_Installation_Instructions_Issue_1.pdf
• Warranty___Support___Scanstrut.pdf
• DS21_DS16_Installation_Instructions_Issue_1.pdf
• DS21B-P-Techincal-Drawing.pdf
