Durable and waterproof cable gland for secure installations.

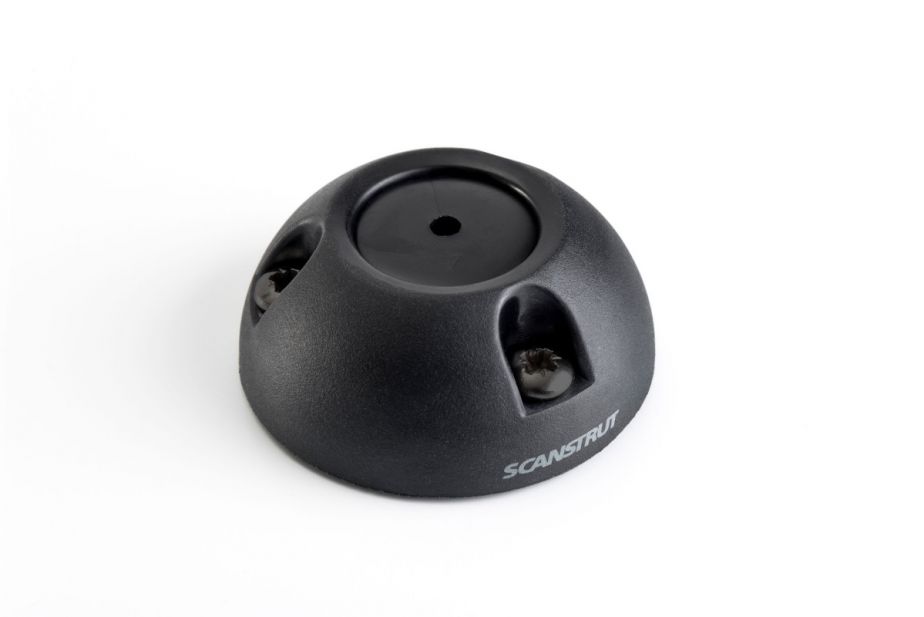

The Scanstrut Cable Gland is designed to facilitate the passage of cables ranging from 0.16 inch to 0.35 inch in diameter, accommodating connectors up to 0.82 inch. This product features a robust dome-shaped profile that enhances impact resistance while ensuring a watertight installation. The tapered bung effectively forms a seal, making it suitable for environments requiring high levels of protection against water ingress.
Constructed from durable plastic, the cable gland is IP68 rated, confirming its capability to withstand submersion in water. Each unit is equipped with a closed-cell base seal, ensuring 100 percent waterproof performance. The split-seal option allows for easy installation without the need to remove cable connectors, streamlining the process and enhancing reliability.
Included with the cable gland are 316 stainless steel fixings, split bungs, and a waterproof 3M gasket, providing all necessary components for a secure and effective installation. The Scanstrut Cable Gland is SCA certified, ensuring compliance with industry standards for quality and performance.
Features
- Multi-Functional Dome Shape
- Watertight Installation: Tapered Bung Forms A Watertight Seal
- All Units Are Supplied With A Closed-Cell Base Seal - 100 Percent Waterproof
- All Models Have Been IP68 Tested And Approved
- No Need To Remove Cable Connectors: Split-Seal Option Does Not Require Connector Removal During Install
- SCA Certified
- Easy And Reliable Installation
Specifications
- Manufacturer: Scanstrut
- Manufacturer Part Number: DS21A-P-BLK
- Cable Size: 0.16 Inch To 0.35 Inch
- Color: Black
- Material: Plastic
- Universality: Semi-Universal
- Waterproof Rating: IP68 Waterproof
- Sealable: Yes
- Quantity: Single

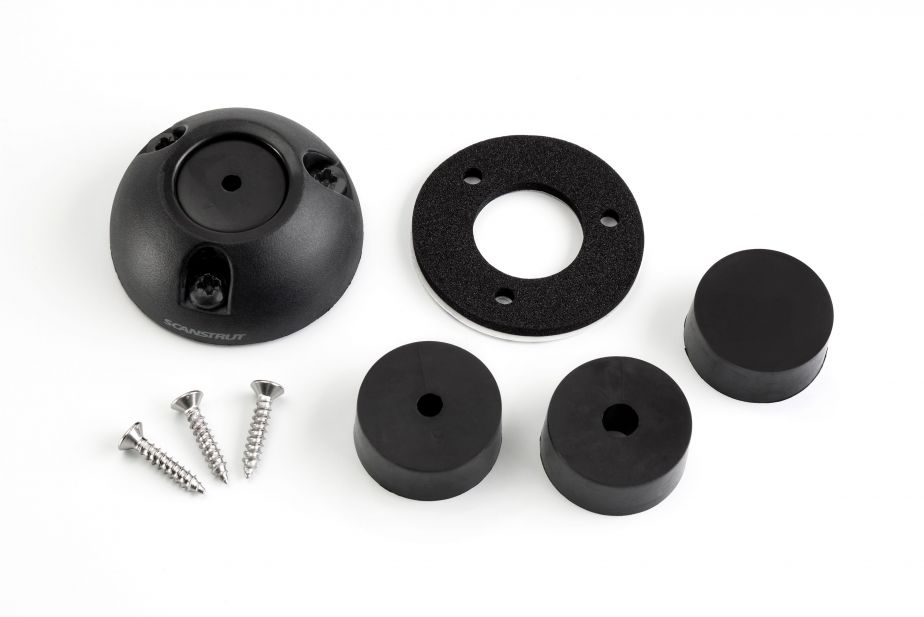

- Includes: With 316 Stainless Steel Fixings/ Split Bungs/ Waterproof 3M Gasket
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
