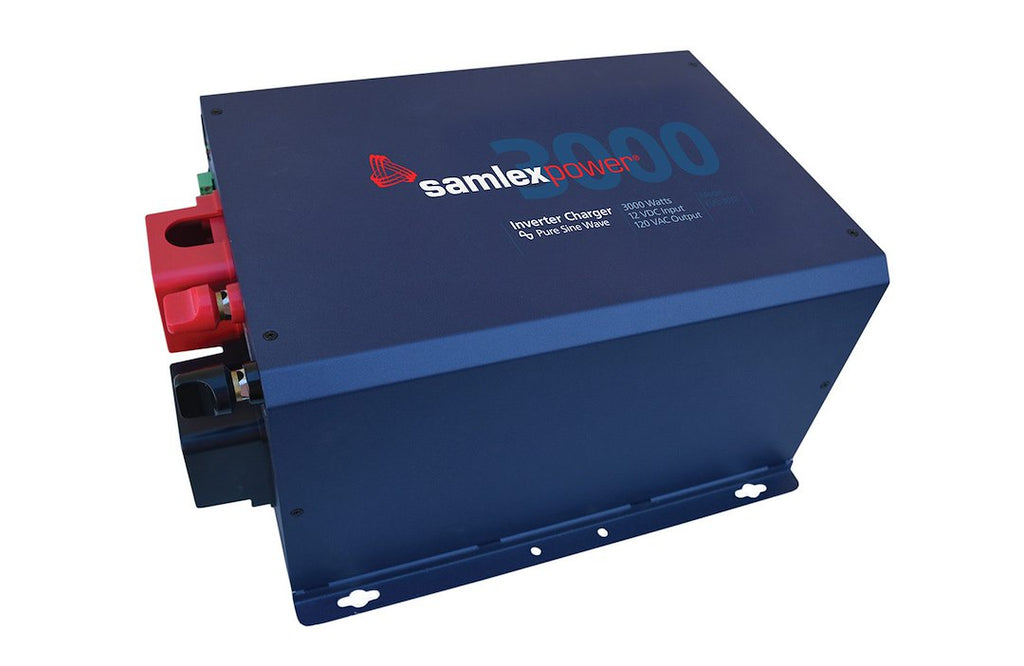

Samlex Evolution Power Inverter (MPN: EVO-3012)

Reliable AC power solution for off-grid and emergency applications.

The Samlex Evolution Power Inverter is designed to convert 9 to 17 Volt DC into 120 Volt AC, providing a continuous output of 3000 Watts with a peak output of 9000 Watts. This inverter operates with a high efficiency of 90 percent, making it suitable for various applications including boats, RVs, cabins, and alternative energy systems. It features advanced technology that allows for rapid load response and includes a built-in 130 Ampere battery charger and a 70 Ampere transfer relay, ensuring seamless integration of power sources.

Equipped with multiple safety features, the Samlex Evolution inverter includes protections against over current, overload, short circuit, over temperature, and low battery voltage. Its state-of-the-art monitoring system scans for fault conditions up to 10,000 times per second, providing robust reliability in adverse environments. The inverter also supports remote on/off capabilities and can prioritize battery usage over grid power, making it an efficient choice for solar power applications.

With two separate AC inputs designed for generator use, the inverter can handle waveform distortion effectively. It allows for direct connection of a solar charge controller, enhancing its versatility in off-grid setups. The zero transfer time feature ensures uninterrupted power supply when switching between inverter and grid, while the programmable settings offer customization for various operational needs.

Features

• Two Separate AC Inputs. Generator Input Is Specifically Designed To Have More Tolerance For Wave Form Distortion
• Generator Start Can Be Initiated By "Status Relay" Contact, Can Be Programmed To Activate When Grid Is Lost
• Connect A Solar Charge Controller Directly To The EVO Though The Battery Charger External DC Input, Seamlessly Integrates Solar Charging Into The EVO’s Power System
• ONLINE Mode Can Be Used To Prioritize Batteries/Inverter Over The Grid, Ideal For Those Wishing To Operate Primarily On Solar Power
• 3 Or 4 Stage Charging With Equalization. Adaptive Algorithm Is Used During Bulk To Assess The Condition Of The Battery
• Zero Transfer Time When Switching From Inverter To Grid
• The EVO Has 3X Surge Power. The EVO Has Large Power Overload Allowances Available For Long Periods Of Time
• State-Of-The-Art Technology - Has “Bullet-Proof Intelligence” In The Form Of 9 Physical Points Of Protection Monitoring Being Scanned Up To 10,000 Times Per Second For Adverse Conditions
• Programmable

Specifications

• Manufacturer: Samlex America
• Manufacturer Part Number: EVO-3012
• Input Voltage: 9-17 Volt DC
• Output Voltage: 120 Volt AC
• Continuous Output Power (W): 3000 Watt
• Peak Output Power (W): 9000 Watt
• Ampere Rating: 25 Amp
• Efficiency: 90 Percent
• Number Of AC Outlets: 1
• Length (IN): 16.77 Inch
• Width (IN): 12.79 Inch
• Height (IN): 8.15 Inch
• Remote On/Off Capable: Yes
• With USB Port: No
• With Volt/Watt Meter: No
• With Short Circuit: Yes
• With Reverse Battery Protection: No
• With Thermal Protection: No
• With Battery Cables: No
• With Built-In Charger: Yes
• With Fuse: No
• Marine: Yes

Technical Documents

• 11025-EVO-Quick-Start-0722_Lrez.pdf
• 11025-EVO-2212-3012-2224-4024-0722_Lrez.pdf
• Samlex-EVO-Features-Spec-Sheet-1121.pdf
