Efficiently converts 12 Volt DC to 120 Volt AC with dual outlets.

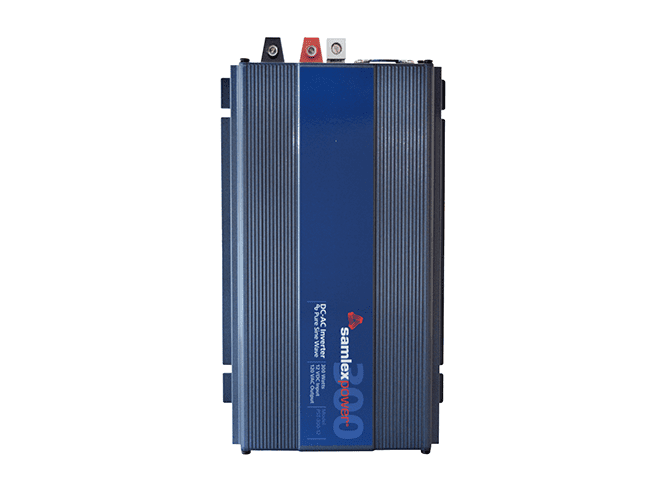

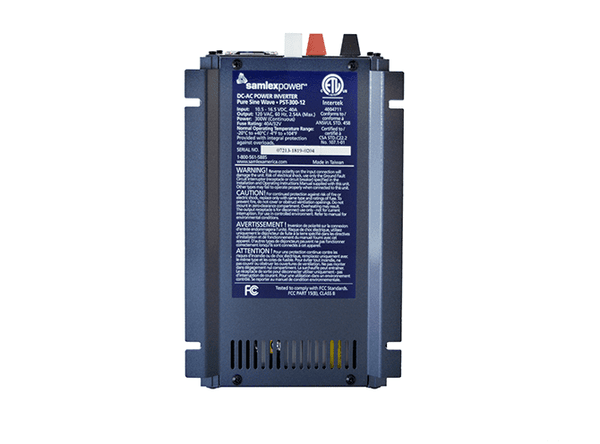

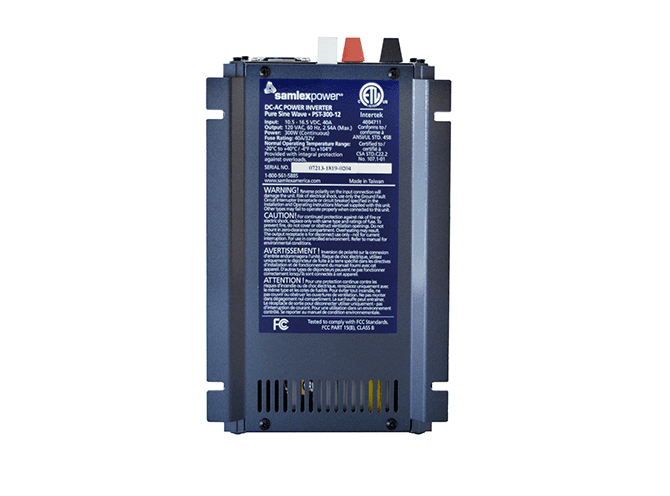

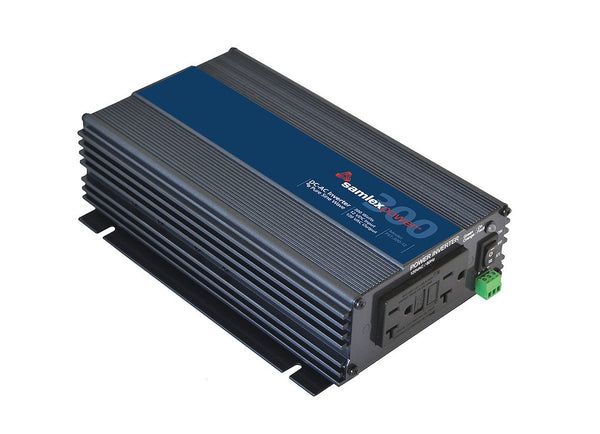

The Samlex America PST Series Power Inverter is designed to convert 12 Volt DC power into 120 Volt AC power, providing a continuous output of 300 Watts. This inverter features a pure sine-wave output, ensuring compatibility with sensitive electronics and appliances. With an efficiency rating of 88 percent, it minimizes energy loss during the conversion process, making it suitable for both commercial and emergency backup applications.

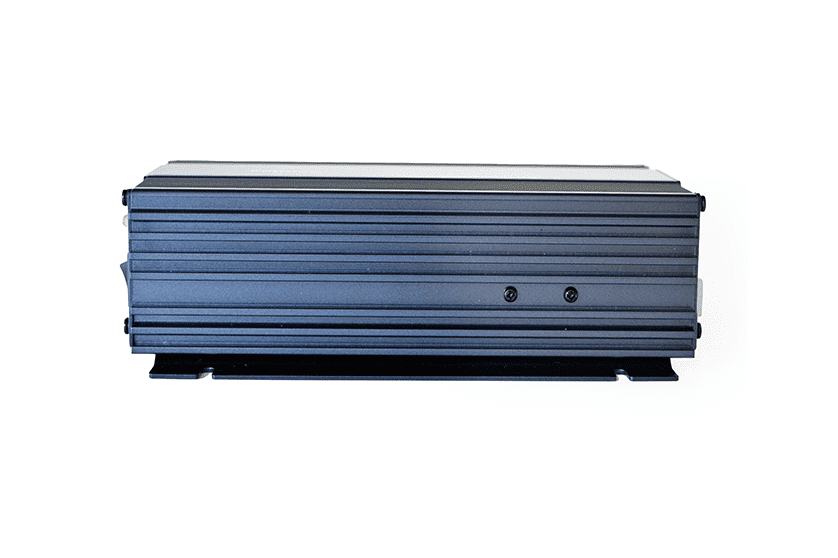

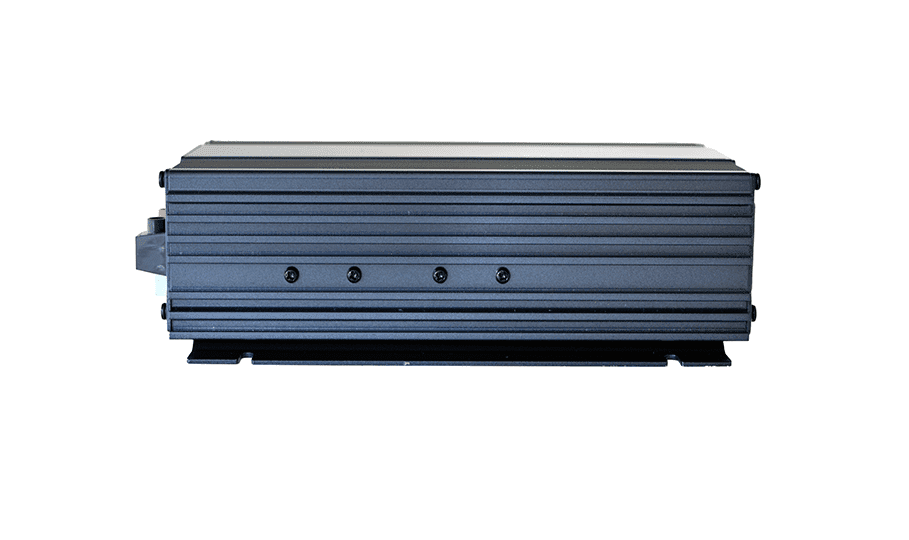

Equipped with two GFCI protected AC outlets, the inverter allows for multiple devices to be powered simultaneously. It includes essential safety features such as overload protection, low voltage alarm, and short circuit protection, ensuring reliable operation under various conditions. The compact design, measuring 9.68 inches in length, 5.76 inches in width, and 2.58 inches in height, makes it easy to install in various settings.
The inverter is built for durability and long-term use, with a commercial-grade design that can handle heavy-duty loads and extended periods of operation. Its low idle power draw of less than 0.5 Ampere contributes to energy efficiency, while the temperature-controlled cooling fan helps maintain optimal operating conditions. Safety certifications to UL standards further enhance its reliability for users.
Features

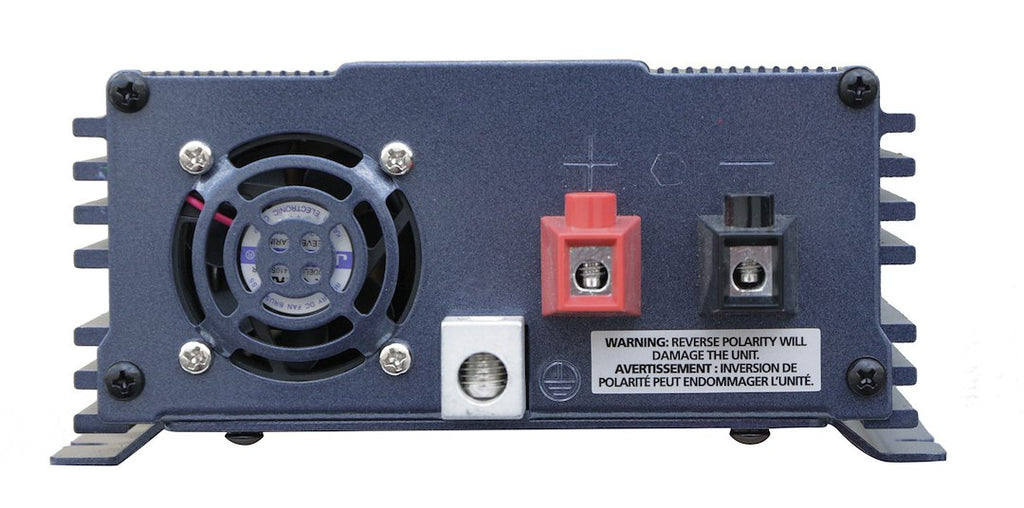

- High Efficiency. Temperature Controlled Cooling Fan - Reduces Energy Consumption
- Low Interference
- Commercial Grade Design Suitable For Heavy Duty Loads, Long Periods Of Continuous Operation And For Emergency Back Up
- Universal Protection Circuit: Low Voltage, Over Voltage, Over Temperature, Over Load And Short Circuit

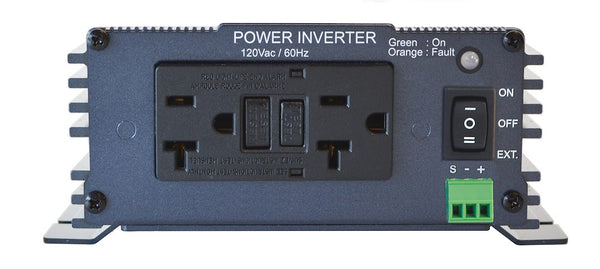

- Dual GFCI Protected AC Outlets
- Safety Certified To UL Standards, FCC Compliant
Specifications
- Manufacturer: Samlex America
- Manufacturer Part Number: PST-300-12
- Input Voltage: 12 Volt DC
- Output Voltage: 120 Volt AC
- Continuous Output Power (W): 300 Watt
- Peak Output Power (W): 500 Watt
- Ampere Rating: 2.5 Amp
- Efficiency: 88 Percent
- Number Of AC Outlets: 2
- Length (IN): 9.68 Inch
- Width (IN): 5.76 Inch
- Height (IN): 2.58 Inch
- Remote On/Off Capable: No
- With USB Port: No
- With Volt/Watt Meter: No
- With Short Circuit: Yes
- With Reverse Battery Protection: Yes
- With Thermal Protection: No

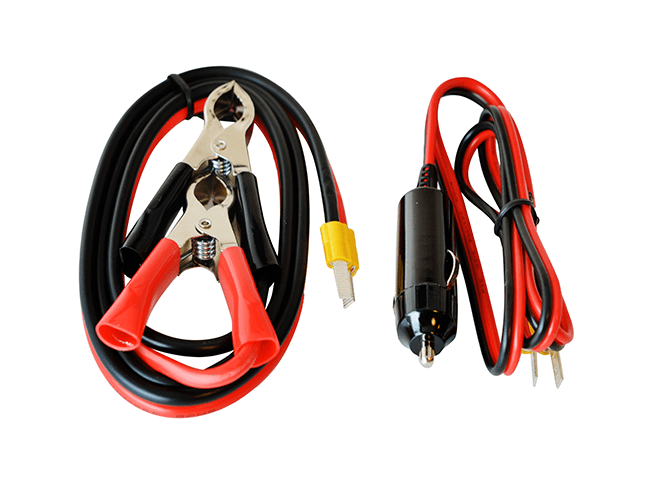

- With Battery Cables: No
- With Built-In Charger: No
- With Fuse: No
- Marine: Yes
