Intelligent low voltage disconnect for 12/24 volt battery systems

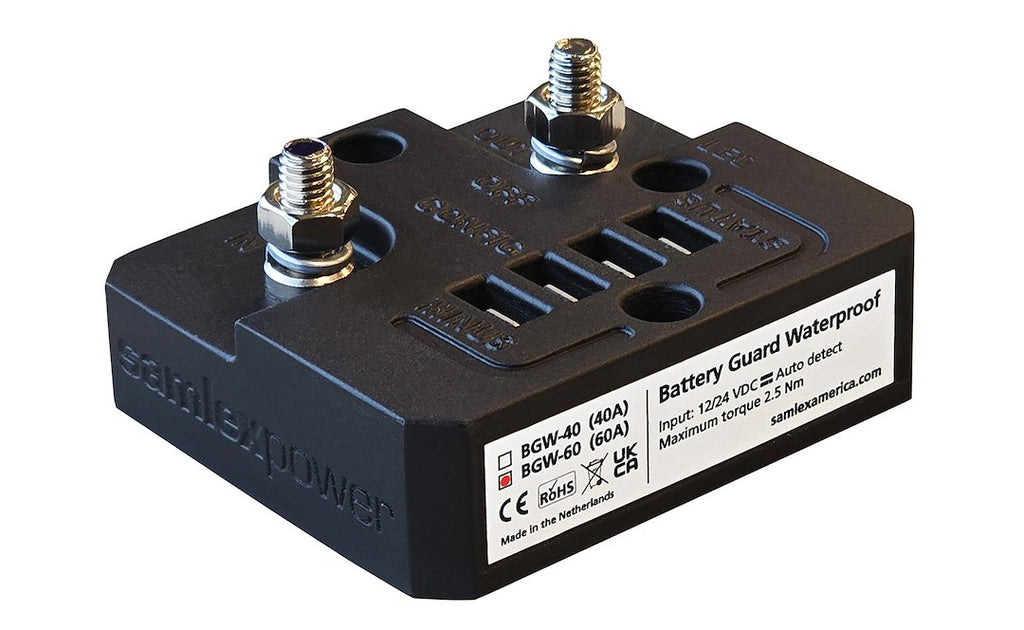

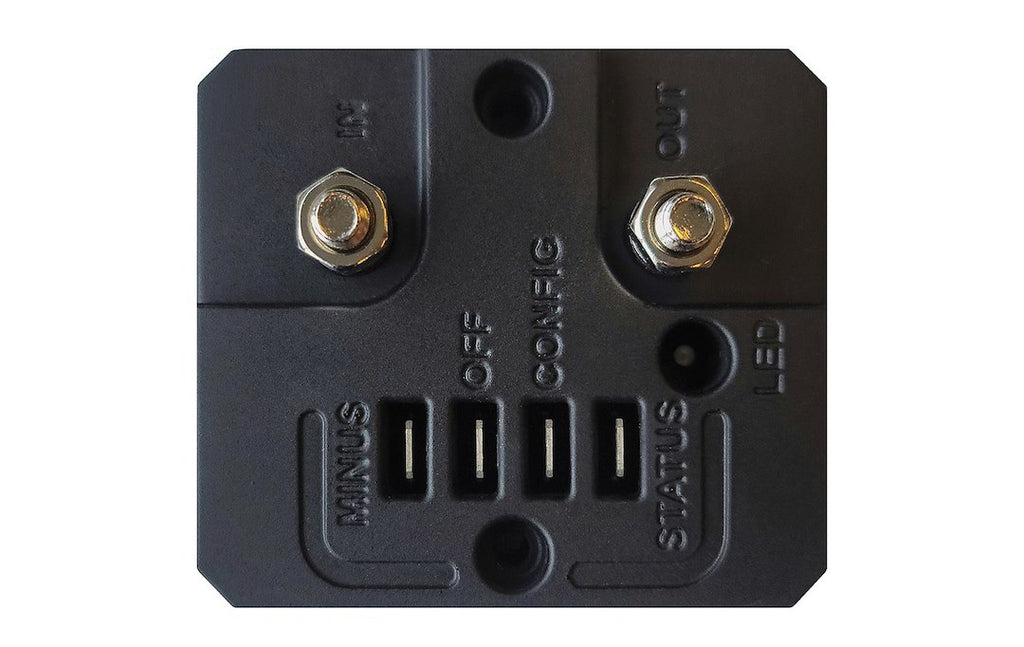

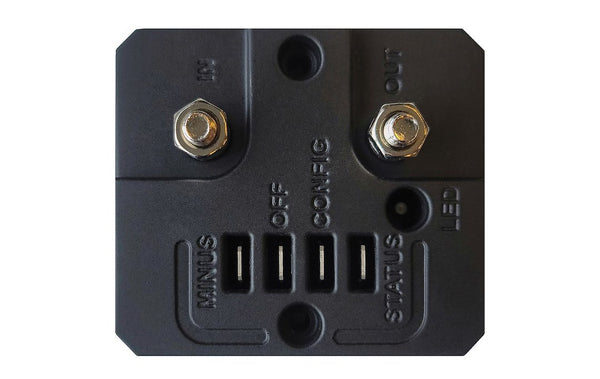

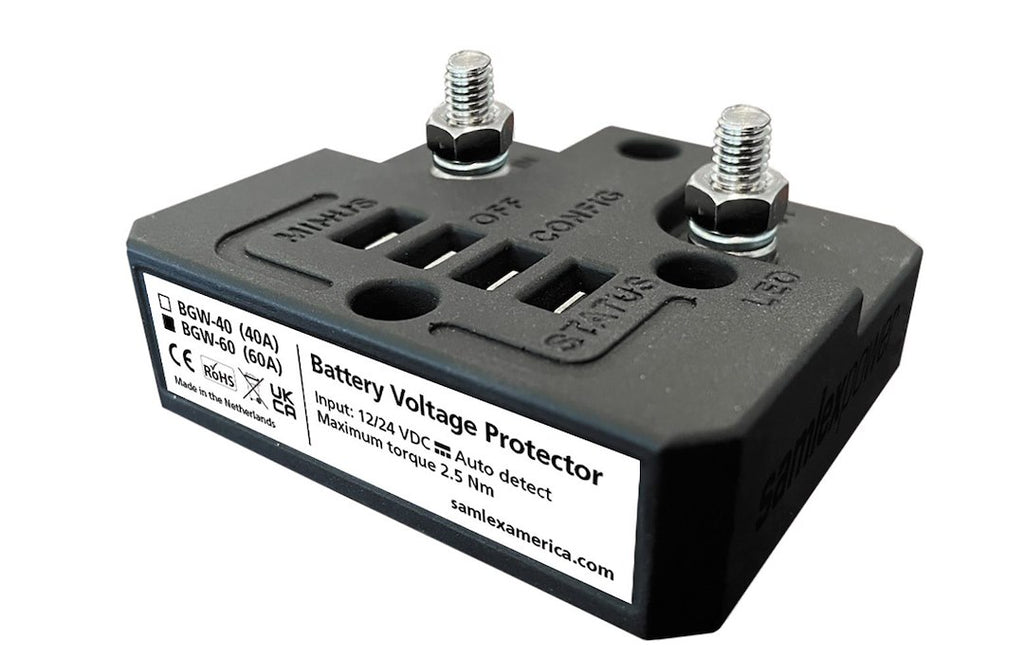

The Samlex America Battery Voltage Protector is a sophisticated device designed to prevent excessive discharge of 12 and 24 volt battery systems. This intelligent, user programmable protector safeguards batteries from damage due to over-discharge while also protecting connected electronic appliances from overvoltage conditions. With a continuous load capacity of 60 Amperes and a transient load capacity of 65 Amperes, it is suitable for various applications requiring reliable battery management.
Featuring a waterproof IP66 rating, the Battery Voltage Protector is built to withstand harsh environments, ensuring durability and longevity. It offers 10 programmable on/off threshold voltage settings for both 12 and 24 volt systems, allowing users to customize the operation according to their specific needs. The device also includes options for a remote off switch and an alarm output, enabling integration with external indicators such as buzzers or LED lights.
The low profile design and rugged casing of the Battery Voltage Protector facilitate flexible installation in various locations. Its advanced features, including high voltage cut-off and load shedding capabilities, enhance the efficiency of battery usage by disconnecting non-critical equipment early, thereby extending the backup time for critical devices. This makes it an essential component for anyone looking to optimize battery performance and protect their investment.
Features
- Waterproof IP66 Rating
- High Voltage Cut-Off Of 16 Volt DC Protects Equipment From Over-Voltage Conditions
- Low Profile, Sealed And Rugged Casing: Allows Flexibility In Installation
- OFF Control Input: Disconnect Battery Through A Remote Switch Or Relay
- Status Indicator: Output Signal Allows For External Indication Lamp Or Buzzer Alarm
- Load Shedding: Disconnect Non Critical Equipment Early, Extending The Backup Time On Critical Ones
Specifications
- Manufacturer: Samlex America
- Manufacturer Part Number: BGW-60
- Compatibility: Prevents Excessive Discharge Of 12/ 24 Volt Battery Systems
- Lighting Type: No Light
