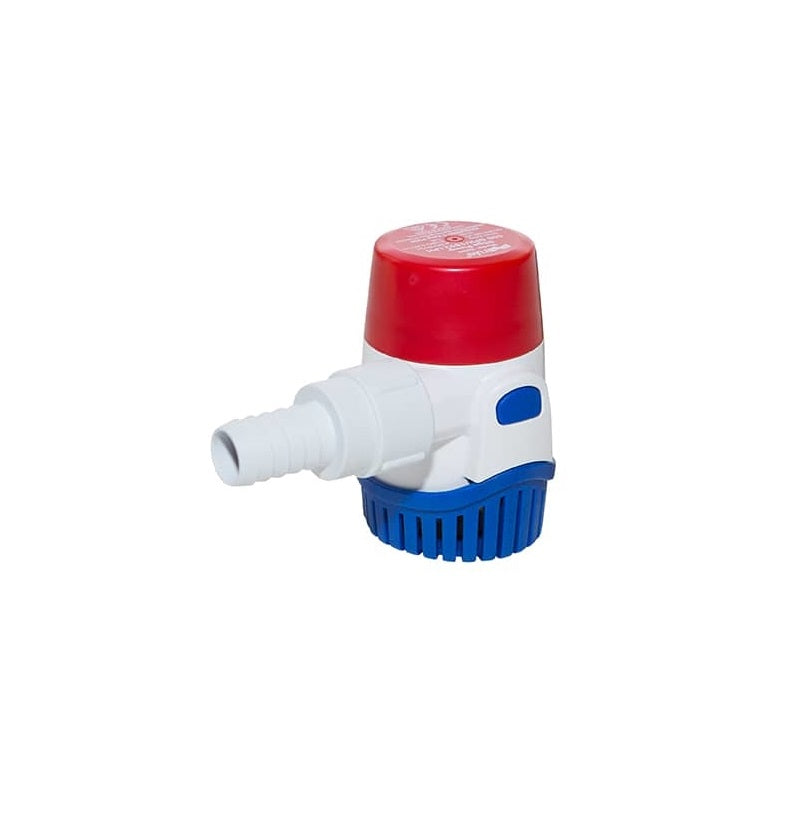

Rule Submersible Bilge Pump (MPN: 25DA)

Efficient 500 GPH performance with advanced protection features.

The Rule Submersible Bilge Pump is designed to deliver reliable pumping performance with a flow rate of 500 gallons per hour at a voltage of 12 Volt DC. This pump operates efficiently, providing full rated flow while consuming less power compared to traditional models. Its compact dimensions of 2.4 inches in width and 3.5 inches in height make it suitable for various marine applications where space is limited.

This bilge pump features a built-in thermal cut-off that protects both the pump and the vessel from overheating, ensuring longevity and safety during operation. Additionally, the non-return design prevents backflow, keeping bilges cleaner and drier by stopping water from returning through the discharge. The integrated air vents help to avoid air locking in complex plumbing setups, enhancing overall performance.

With options for straight or 90-degree ports, the Rule Submersible Bilge Pump can be easily adapted to fit different installation requirements. This pump is an essential component for maintaining a safe and efficient marine environment.

Features

• Higher Flow – The Optimized Impeller Provides Greater Flow At The Same Amperage
• Built-In Thermal Cut-Off (TCO) Provides Added Protection For Pump And Vessel
• Backflow Prevention – The Non-Return Prevents Water Left In The Discharge From Running Back, Keeping Bilges Dryer And Cleaner
• Air Vents – Built Into The Body, They Help Prevent Air Locking In Challenging Plumbing Installations
• Offer A Straight Or 90 Degree Ports To Suit Your Installation

Specifications

• Manufacturer: Rule
• Manufacturer Part Number: 25DA
• Type: Submersible
• Voltage Rating: 12 Volt DC
• Flow Rate: 500 Gallon Per Hour
• Port Type: 3/4 Inch
• Width: 2-3/8 Inch
• Height: 3-1/2 Inch
• With Thermal Overload Protection: Yes
