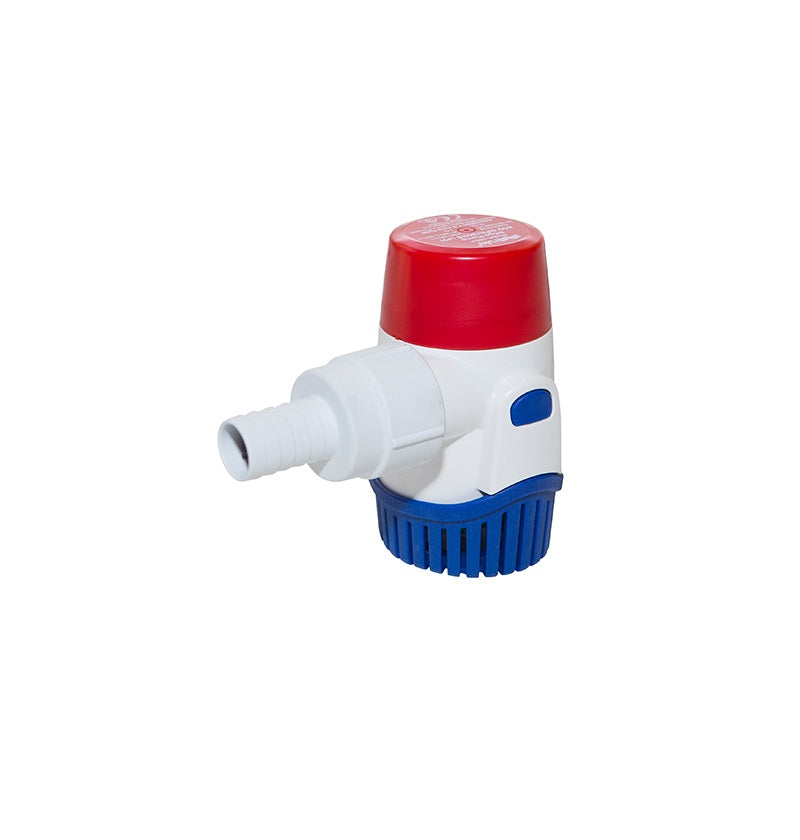

Rule Submersible Bilge Pump (MPN: 20DA)

Efficient 800 GPH performance with advanced protection features.

The Rule Submersible Bilge Pump is designed to deliver high performance with a flow rate of 800 gallons per hour at a voltage of 12 Volt DC. This pump operates efficiently, providing full rated flow while consuming less power compared to traditional models. Its optimized impeller design ensures greater flow at the same amperage, making it a reliable choice for various marine applications.

Incorporating a built-in thermal cut-off, this bilge pump offers enhanced protection for both the pump and the vessel, preventing overheating during operation. The non-return feature effectively prevents backflow, ensuring that water does not return to the bilge, which helps maintain a cleaner and dryer environment. Additionally, air vents are integrated into the body to mitigate air locking issues in complex plumbing setups.

The pump is versatile with options for straight or 90-degree ports, allowing for flexible installation configurations. With its compact dimensions of 2.9 inches in width and 4 inches in height, the Rule Submersible Bilge Pump is suitable for a variety of bilge applications, ensuring reliable water removal in marine settings.

Features

• Higher Flow – The Optimized Impeller Provides Greater Flow At The Same Amperage
• Built-In Thermal Cut-Off (TCO) Provides Added Protection For Pump And Vessel
• Backflow Prevention – The Non-Return Prevents Water Left In The Discharge From Running Back, Keeping Bilges Dryer And Cleaner
• Air Vents – Built Into The Body, They Help Prevent Air Locking In Challenging Plumbing Installations
• Offer A Straight Or 90 Degree Ports To Suit Your Installation

Specifications

• Manufacturer: Rule
• Manufacturer Part Number: 20DA
• Type: Submersible
• Voltage Rating: 12 Volt DC
• Flow Rate: 800 Gallon Per Hour
• Port Type: 3/4 Inch
• Width: 2-7/8 Inch
• Height: 4 Inch
• With Thermal Overload Protection: Yes
