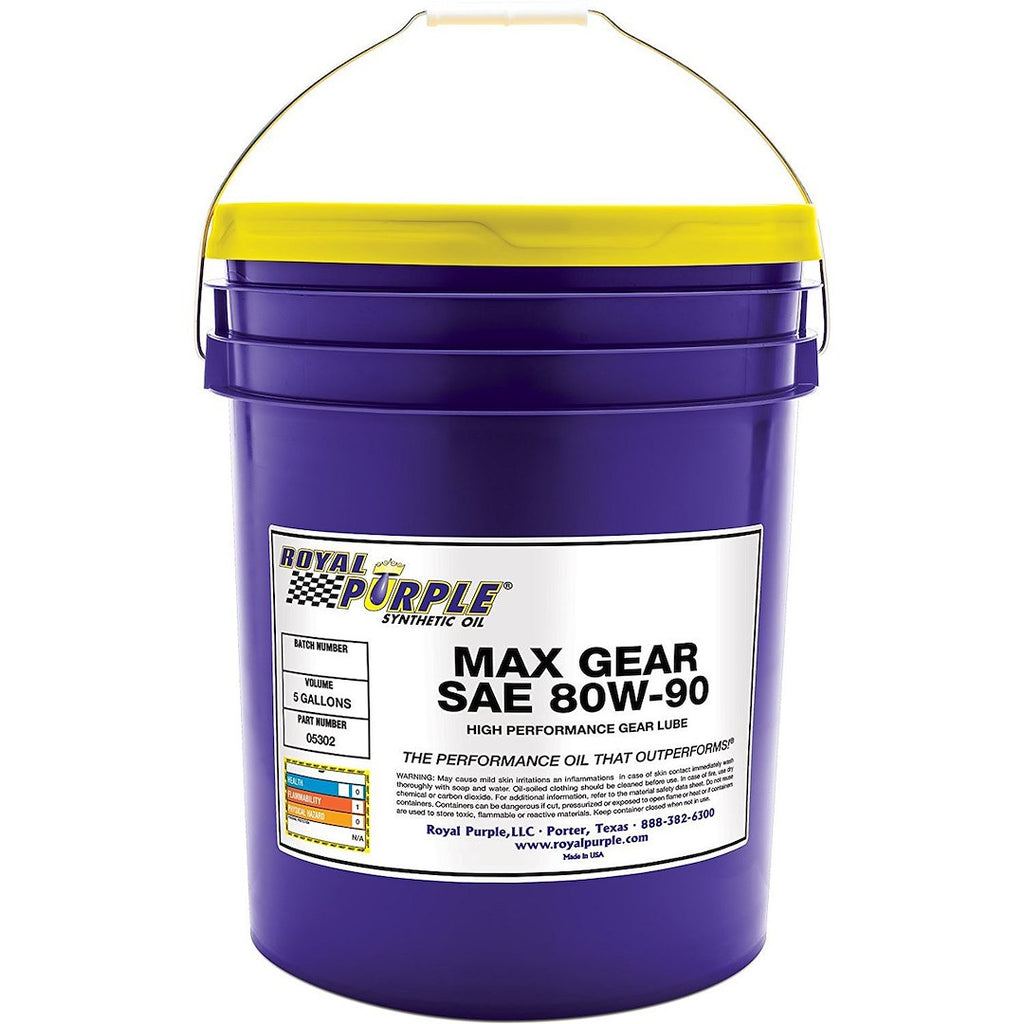

Royal Purple Max Gear Synthetic Gear Oil (MPN: 05302)

High performance gear oil for extended gear life and reduced temperatures.

Royal Purple Max Gear is a synthetic gear oil designed for use in truck and automotive differentials, manual transmissions, and lower gear units of marine engines that require API GL-5 or GL-4 fluids. This ultra-tough gear oil provides maximum protection for heavily loaded gears while enhancing power throughout the drive train. By utilizing the highest quality synthetic oils combined with Royal Purple's proprietary Synerlec additive technology, Max Gear significantly outperforms conventional gear oils.

The formulation of Max Gear includes a friction modifier additive, eliminating the need for additional additives. This gear oil is engineered to maximize horsepower, extend the life of gears and bearings, and reduce operating temperatures. It is particularly effective in severe service conditions and offers superior corrosion protection, making it a reliable choice for demanding applications.

Max Gear is available in various viscosities, including 75W-90, 75W-140, 80W-90, 85W-140, and SAE 90, ensuring compatibility with a wide range of vehicles and equipment. Its environmentally responsible formulation allows for rapid separation from water, making it suitable for limited slip differentials and manual transmissions.

Features

• Maximizes Horsepower
• Extends Gear And Bearing Life
• Reduces Operating Temperature
• Severe Service Performance
• Lower Co-Efficient Of Friction. Superior Corrosion Protection
• Separates Rapidly From Water. Environmentally Responsible
• Formulated For Limited Slip Differential Use

Specifications

• Manufacturer: Royal Purple
• Manufacturer Part Number: 05302
• Viscosity Grade: SAE 80W-90
• Use: Limited Slip Differentials And Manual Transmissions
• Type: Synthetic
• API Rating: GL-4/ GL-5
• Unit Size: 5 Gallon
• Unit Type: Bucket
• Unit Quantity: Single
• Marine: No

Technical Documents

• Royal-Purple-Max-Gear-PDS-09Aug2022.pdf
