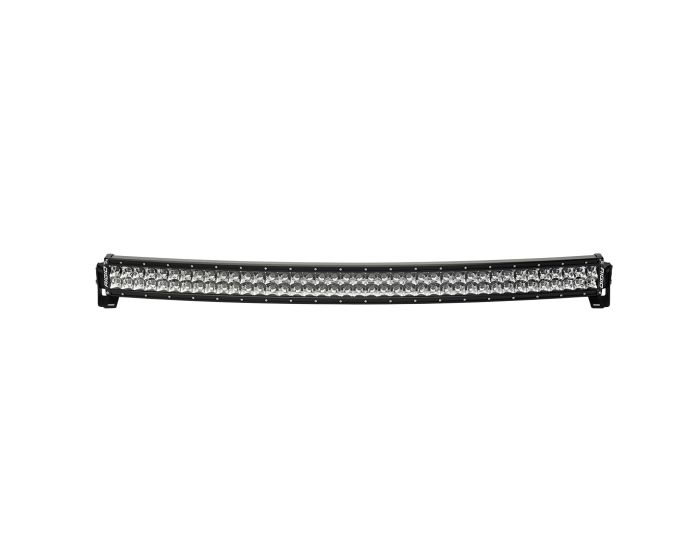

Rigid RDS-Series LED Light Bar (MPN: 884213)

Advanced curved design for superior lighting coverage and performance.

The Rigid RDS-Series LED Light Bar represents a significant advancement in lighting technology with its innovative curved design. Measuring 40 inches in length, this light bar features a powerful output of 63360 raw lumens, making it suitable for a variety of applications. The spot beam configuration ensures focused illumination, while the durable black housing and clear polycarbonate lens provide both aesthetic appeal and protection against the elements.

Constructed from high-grade aluminum alloy, the RDS-Series is built to withstand harsh conditions, featuring an IP68 rating for dust and water ingress. The integrated thermal management system and reverse polarity protection enhance its reliability, ensuring optimal performance in temperatures ranging from -40 to +145 degrees Fahrenheit. With a lifespan exceeding 50,000 hours, this light bar is designed for long-term use.

Installation is straightforward with the included surface mount brackets and plug-and-play wiring harness. The RDS-Series is engineered to meet SAE J575 compliance for shock and vibration, making it a robust choice for off-road and on-road applications alike. This light bar is a testament to Rigid's commitment to quality and innovation in the lighting industry.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 884213
• Bulb Type: LED
• Style: Curved
• Length: 40 Inch
• Beam Type: Spot Beam
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 10 Degree
• Lumens: 63360 Lumens
• Wattage: 314 Watt
• Width: 5.7 Inch
• Height: 3.88 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 22.44 Amp
• Bulb Specifications: 80 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 45 Inch
• Mounting Style: Surface Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With 2 Black Powder Coated L-Shape Brackets/ Open Leads/ Wiring Harness/ Switch
• Estimated Install Time (Hours): 1.5
