Advanced curved design for superior lighting performance and coverage.

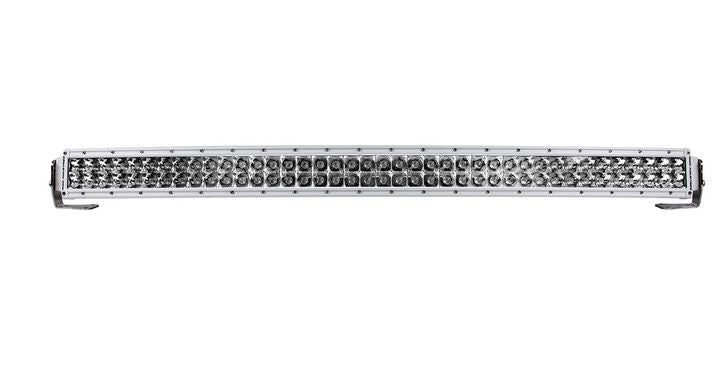

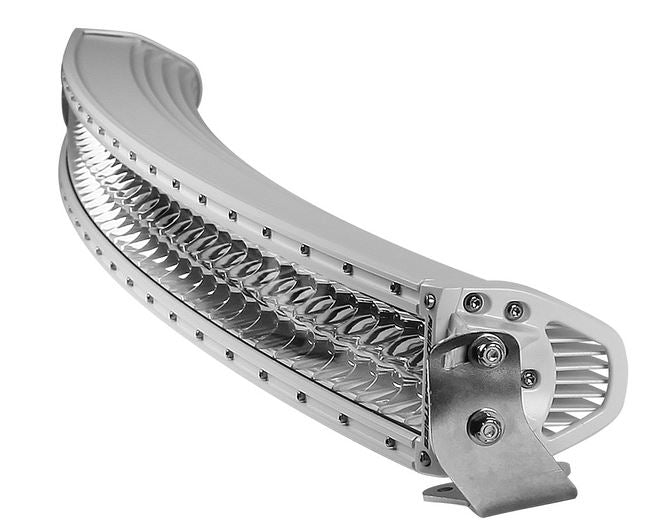

The Rigid RDS Series LED Light Bar represents a significant advancement in lighting technology with its innovative curved design. Measuring 40 inches in length, this light bar features a powerful output of 63360 raw lumens, making it suitable for a variety of applications. The spot beam configuration ensures focused illumination, while the durable white aluminum housing and clear polycarbonate lens provide both protection and aesthetic appeal. Designed for surface mounting, it includes stainless steel brackets and a plug-and-play wiring harness for easy installation.
Constructed with high-grade materials, the RDS Series is built to withstand harsh conditions. It is IP68 rated for dust and water ingress, ensuring reliable performance in challenging environments. The integrated thermal management system and reverse polarity protection enhance the longevity of the light bar, which boasts a lifespan of over 50,000 hours. Operating within a voltage range of 9 to 36 volts, this light bar is versatile and compatible with a wide range of vehicles.
The RDS Series not only enhances visibility but also complements the design of modern trucks and SUVs with its sleek, integrated look. The gentle arc of the light bar provides a wider spread of light, ensuring unmatched coverage with a single unit. With features such as a pressure equalizing vent and compliance with SAE J575 standards for shock and vibration, the Rigid RDS Series LED Light Bar is engineered for durability and performance.
Features
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Impact Resistant Polycarbonate Lens
- Integrated Thermal Management System
- Reverse Polarity Protection
- IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
- Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
- SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
- Waterproof Connector
Specifications
- Manufacturer: Rigid Lighting
- Manufacturer Part Number: 874213
- Bulb Type: LED
- Style: Curved
- Length: 40 Inch
- Beam Type: Spot Beam
- Number Of Rows: 2
- Light Color: White
- Housing Color: White
- Smart Technology Compatible: Not Smart Technology Compatible
- Lumens: 63360 Lumens
- Wattage: 314 Watt
- Width: 5.7 Inch
- Height: 3.88 Inch
- Voltage Rating: 9 To 36 Volt
- Ampere Rating At 12 Volts: 22.44 Amp
- Bulb Specifications: 80 Clear LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 45 Inch
- Mounting Style: Surface Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With 2 Stainless Steel L-Shape Brackets/ Open Leads/ Wiring Harness/ Switch
- Estimated Install Time (Hours): 1.5
