Rigid RDS Series LED Light Bar (MPN: 872213)

Advanced LED technology for superior lighting performance and coverage.

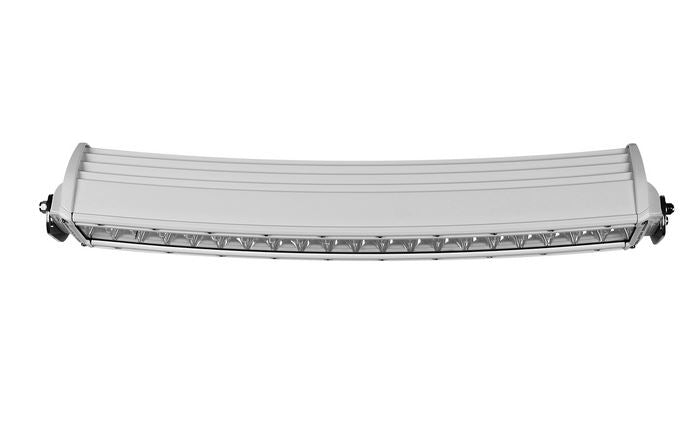

The Rigid RDS Series LED Light Bar represents a significant advancement in lighting technology, featuring a unique curved design that enhances both aesthetics and functionality. With a length of 20 inches and a powerful output of 31680 raw lumens, this light bar is engineered to provide a wide spread of illumination, making it suitable for various applications including off-road and marine environments. The spot beam configuration ensures focused light where it is needed most, while the durable white aluminum housing and clear polycarbonate lens offer resilience against harsh conditions.

Constructed with high-grade materials, the RDS Series light bar is built to withstand extreme temperatures ranging from -40 to +145 degrees Fahrenheit. It is IP68 rated for dust and water ingress, ensuring reliable performance in challenging environments. The integrated thermal management system and reverse polarity protection further enhance the longevity and reliability of the product, which boasts a lifespan of over 50,000 hours.

Installation is straightforward with the included stainless steel L-shape brackets and plug-and-play wiring harness, allowing for quick setup. This light bar is designed for surface mounting and is compatible with a voltage range of 9 to 36 volts, making it versatile for various vehicles. The Rigid RDS Series LED Light Bar is a robust lighting solution that combines innovative design with high performance.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 872213
• Bulb Type: LED
• Style: Curved
• Length: 20 Inch
• Beam Type: Spot Beam
• Number Of Rows: 2
• Light Color: White
• Housing Color: White
• Smart Technology Compatible: Not Smart Technology Compatible
• Lumens: 31680 Lumens
• Wattage: 234 Watt
• Width: 4.06 Inch
• Height: 3.88 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 16.72 Amp
• Bulb Specifications: 40 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 25 Inch
• Mounting Style: Surface Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With 2 Stainless Steel L-Shape Brackets/ Open Leads/ Wiring Harness/ Switch
• Estimated Install Time (Hours): 1.5
