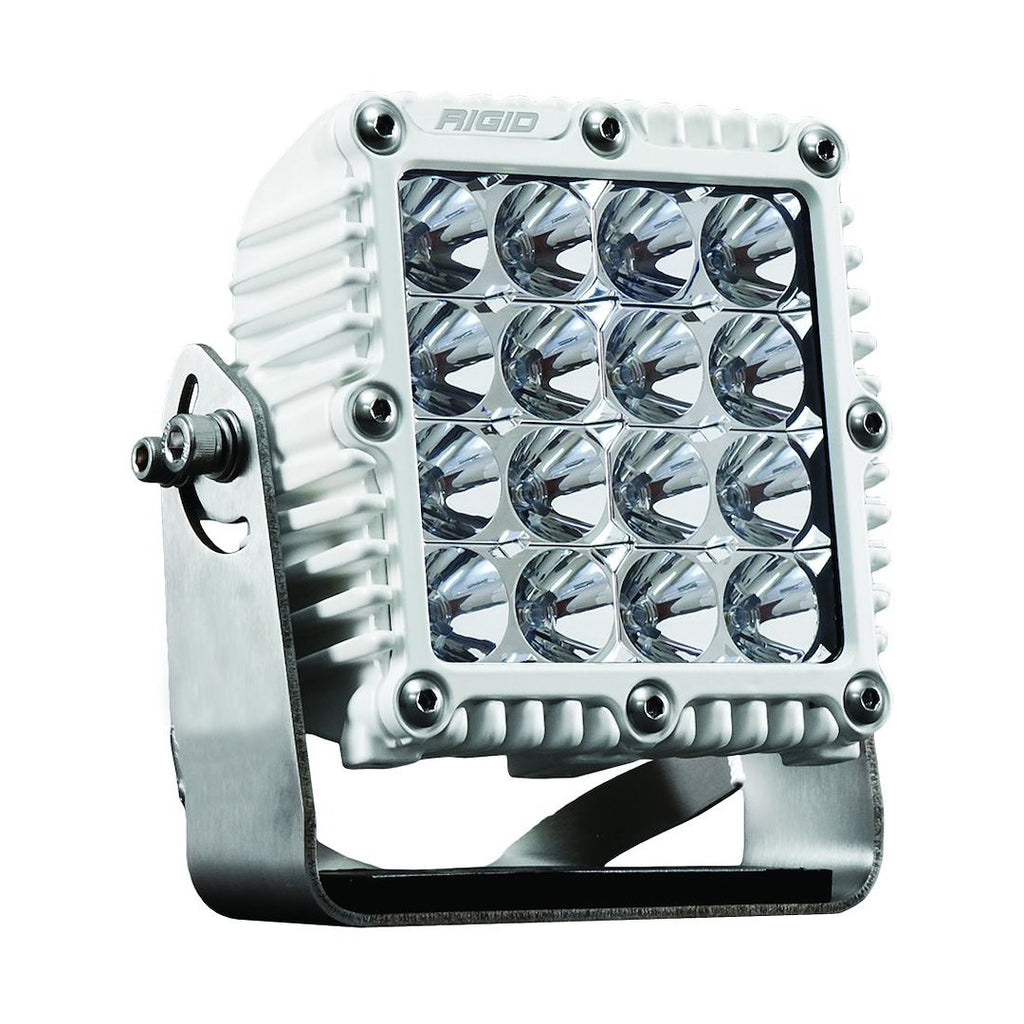

Rigid Q-Series PRO LED Driving Light (MPN: 245113)

High-performance LED light designed for extreme durability and brightness.

The Rigid Q-Series PRO LED Driving Light is engineered for demanding environments, combining advanced LED technology with a robust design. This 7-inch square light features a flood beam pattern, delivering an impressive 12672 raw lumens while drawing only 8.8 amps at 12 volts. Constructed with a durable UV resistant powder coat and high-grade aluminum alloy, it is built to withstand harsh conditions, making it suitable for applications in agriculture, mining, fire and rescue, and off-road use.

The light is equipped with an impact-resistant polycarbonate lens and an integrated thermal management system, ensuring optimal performance and longevity. With an IP68 rating for dust and water ingress, it operates effectively in temperatures ranging from -40 to +145 degrees Fahrenheit. The Rigid Q-Series PRO also includes a pressure equalizing vent and reverse polarity protection, enhancing its reliability in various environments.

Designed for surface mounting, this single light comes complete with mounting hardware, U-shape brackets, vibration isolators, and a harness with a switch and Deutsch connector. The Q-Series PRO is compliant with SAE J575 standards for shock and vibration, ensuring it can handle the rigors of heavy-duty use. With a lifespan exceeding 50,000 hours, this LED driving light is a powerful solution for those who require dependable illumination in challenging conditions.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 245113
• Shape: Square
• Beam Type: Flood Beam
• Diameter: Not Applicable
• Height/ Width: 7 Inch Height X 7 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Single
• Universality: Semi-Universal
• Wattage: 123 Watt
• Voltage Rating: 9 To 36 Volt

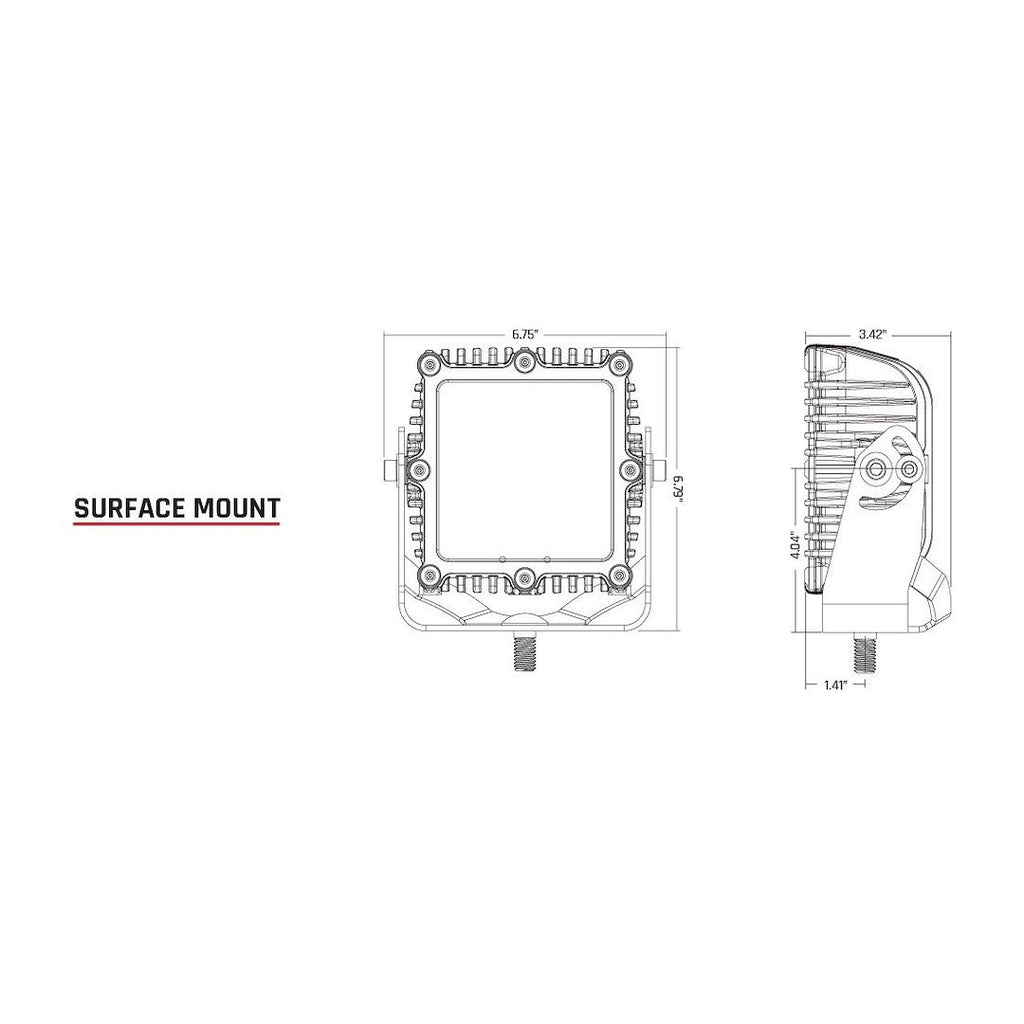

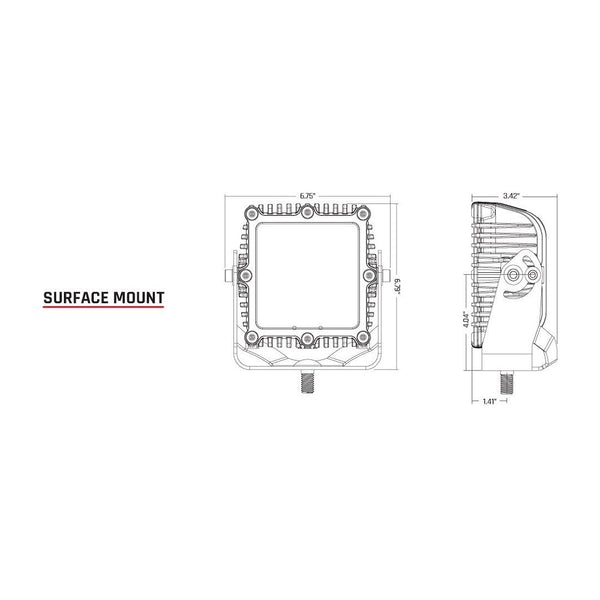

• Mounting Style: Surface Mount
• Ampere Rating At 12 Volts: 8.8 Amp
• Lumens: 12672 Lumens
• Bulb Specifications: Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: White
• Housing Material: Aluminum
• Includes: With Mounting Hardware/U-Shape Bracket/ Vibration Isolator/ Harness With Switch/ Deutsch Connector
• Estimated Install Time (Hours): 1.5
