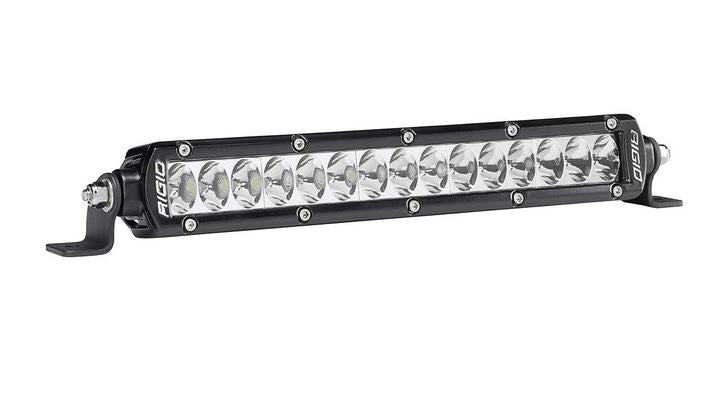

Rigid Lighting SR2 Series LED Light Bar (MPN: 910613)

High-performance 10 inch LED light bar with advanced optics and durability.

The Rigid Lighting SR2 Series LED Light Bar is engineered to deliver exceptional illumination in a compact design. Measuring 10 inches in length, this light bar features a single row of high-output LEDs that produce 7524 raw lumens, making it suitable for various applications including off-road, industrial, agricultural, and marine use. The driving beam pattern ensures that light is projected at significant distances while maintaining low power consumption, with an 84 watt and 6 amp draw.

Constructed with a durable black aluminum housing and a clear polycarbonate lens, the SR2 Series is built to withstand harsh conditions. It includes an integrated thermal management system and is compliant with SAE J575 standards for shock and vibration resistance. The light bar is designed for easy installation with a plug and play wiring harness, and features a pressure equalizing vent to enhance performance in extreme temperatures ranging from -40 to +145 degrees Fahrenheit.

With a lifespan exceeding 50,000 hours, the Rigid Lighting SR2 Series LED Light Bar is a reliable lighting solution that combines advanced technology with robust construction. Its UV resistant powder coat finish and impact resistant lens ensure longevity and performance, making it a valuable addition to any vehicle or equipment requiring enhanced visibility.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• RFI And EMI Protection; Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 910613
• Bulb Type: LED
• Style: Straight
• Length: 10 Inch
• Beam Type: Driving Beam
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Beam Angle (Deg): 24.3 Degree
• Lumens: 7524 Lumens
• Wattage: 84 Watt
• Width: 3 Inch
• Height: 1.62 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 4.94 Amp
• Bulb Specifications: 15 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 12-7/8 Inch
• Mounting Style: Surface Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Harness/ Switch/ GORE Pressure Equalizing Vent
• Estimated Install Time (Hours): 1.5

Technical Documents

• 11-13836-A_-_E_SR-Series_PRO.pdf
