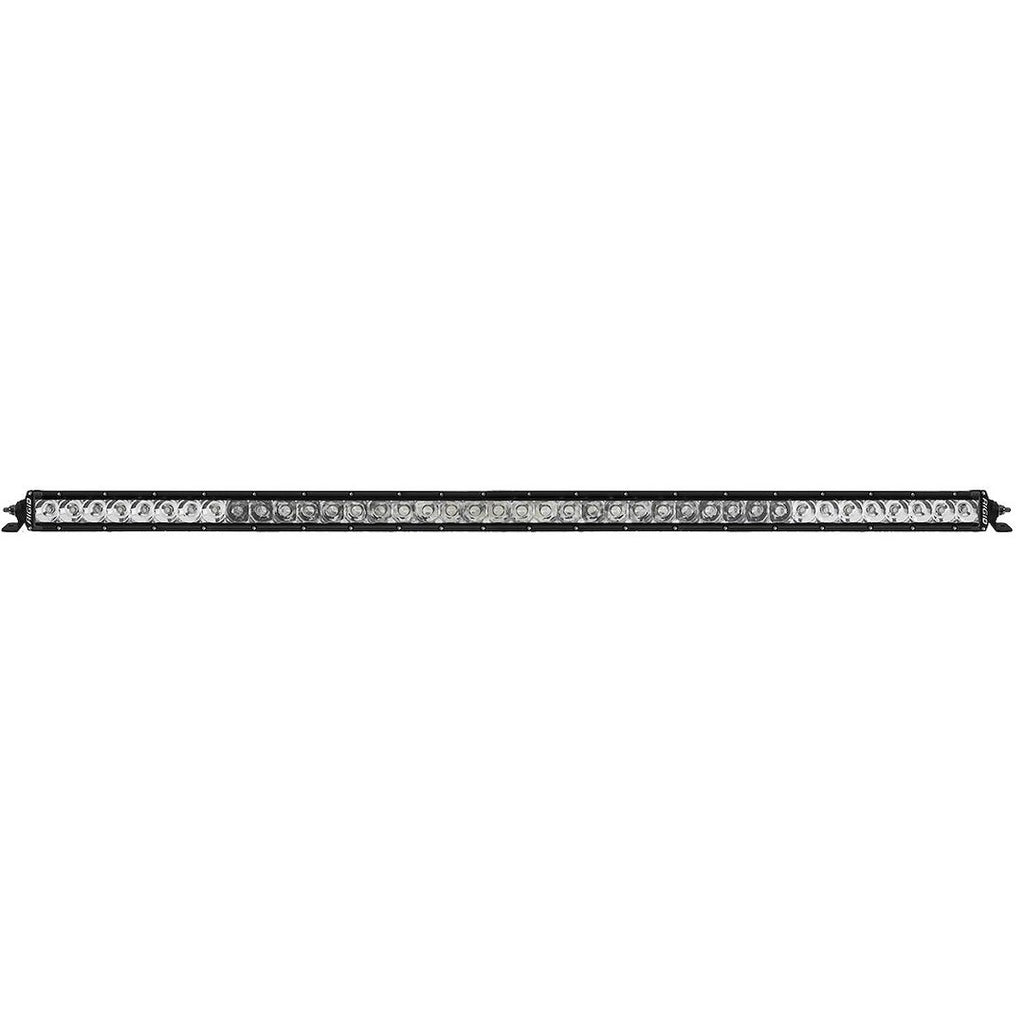

Rigid Lighting SR-Series Pro LED Light Bar (MPN: 940314)

High-performance 40 inch LED light bar with advanced optics and durability.

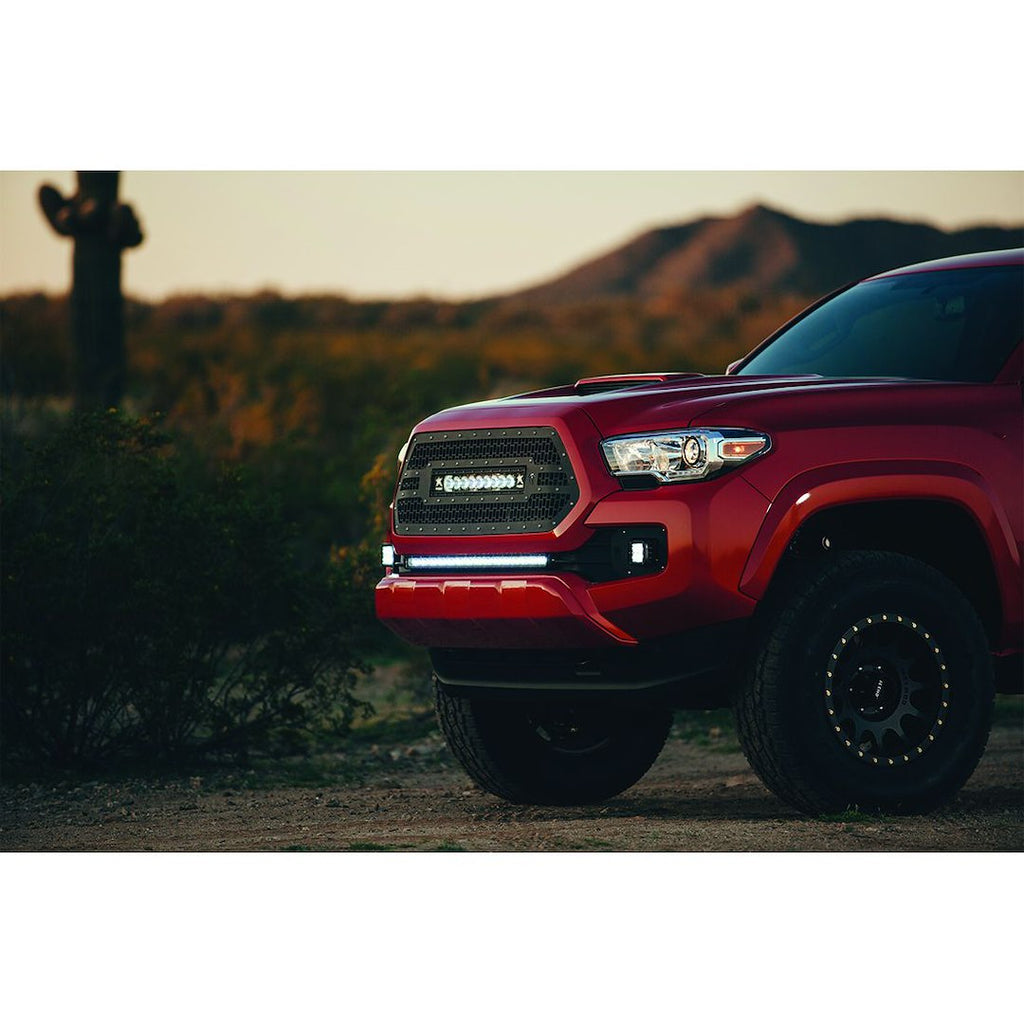

The Rigid Lighting SR-Series Pro LED Light Bar is engineered to deliver exceptional illumination in a compact design, measuring less than 2 inches in height. This 40 inch light bar features a powerful combination of spot and flood beam patterns, producing an impressive 25080 raw lumens while drawing only 259 watts of power. The advanced LED technology ensures enhanced light output, making it suitable for various applications including off-road vehicles, industrial settings, and marine use.

Constructed with a durable black aluminum housing and a clear polycarbonate lens, the SR-Series Pro is built to withstand harsh conditions. It is IP68 rated for dust and water ingress, ensuring reliable performance in challenging environments. The integrated thermal management system and reverse polarity protection further enhance its longevity, providing over 50000 hours of operational life.

This light bar is designed for easy installation with a surface mount style and includes a plug and play wiring harness with a switch. The Rigid Lighting SR-Series Pro combines functionality with a sleek aesthetic, making it a versatile lighting solution for any demanding situation.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 940314
• Bulb Type: LED
• Style: Straight
• Length: 40 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 18 Degree
• Lumens: 25080 Lumens
• Wattage: 259 Watt
• Width: 3 Inch
• Height: 1.6 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 18.5 Amp
• Bulb Specifications: 40 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 43 Inch
• Mounting Style: Surface Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Harness/ Switch
• Estimated Install Time (Hours): 1.5

Technical Documents

• 11-13836-A_-_E_SR-Series_PRO.pdf
