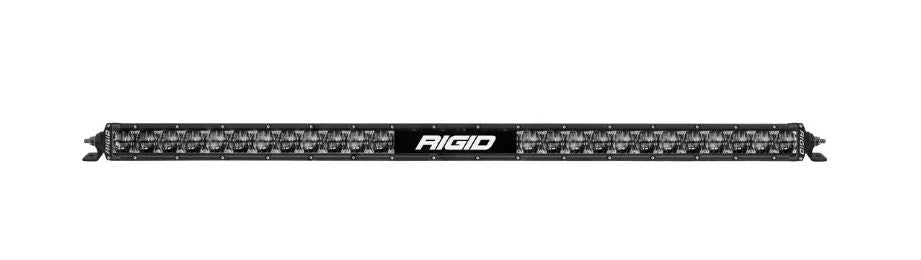

High-performance 30 inch LED light bar with advanced optics and durability.
The Rigid Lighting SR-Series Pro LED Light Bar is a robust lighting solution designed for various applications, including off-road vehicles, industrial, agricultural, and marine use. Measuring 30 inches in length and featuring a sleek, low profile design, this light bar is less than 2 inches tall, making it suitable for installations where space is limited. With an impressive output of 14148 raw lumens and a power consumption of 180 watts, the SR-Series Pro utilizes advanced LED technology to deliver superior brightness and efficiency.
Constructed with a durable black aluminum housing and a clear polycarbonate lens, the SR-Series Pro is built to withstand harsh conditions. It is IP68 rated for dust and water ingress, ensuring reliable performance in various environments. The integrated thermal management system and reverse polarity protection enhance the longevity of the light bar, which boasts a lifespan of over 50,000 hours. Additionally, the light bar features a pressure equalizing vent and is compliant with SAE J575 standards for shock and vibration resistance.
The SR-Series Pro is equipped with a plug and play wiring harness and includes mounting hardware for easy installation. Its single row design and available beam patterns, including driving beam, provide versatility for different lighting needs. With a beam angle of 53.6 degrees, this light bar effectively projects light at extreme distances while consuming minimal power, making it a reliable choice for demanding applications.
Features
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Impact Resistant Polycarbonate Lens
- Integrated Thermal Management System
- Reverse Polarity Protection
- IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
- Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
- SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
- Waterproof Connector
Specifications
- Manufacturer: Rigid Lighting
- Manufacturer Part Number: 930414
- Bulb Type: LED
- Style: Straight

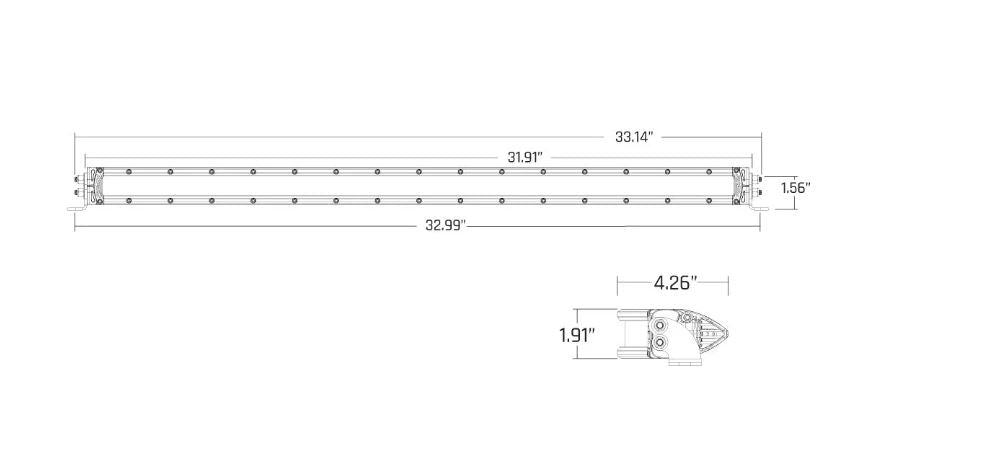

- Length: 30 Inch
- Beam Type: Driving Beam
- Number Of Rows: 1
- Light Color: Amber/ White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Beam Angle (Deg): 53.6 Degree
- Lumens: 14148 Lumens
- Wattage: 180 Watt
- Voltage Rating: 9 To 36 Volt
- Ampere Rating At 12 Volts: 11.43 Amp
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 33 Inch
- Mounting Style: Surface Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With Mounting Hardware/ Wiring Harness
- Estimated Install Time (Hours): 1.5
