High-performance 30 inch LED light bar with advanced optics and durability.

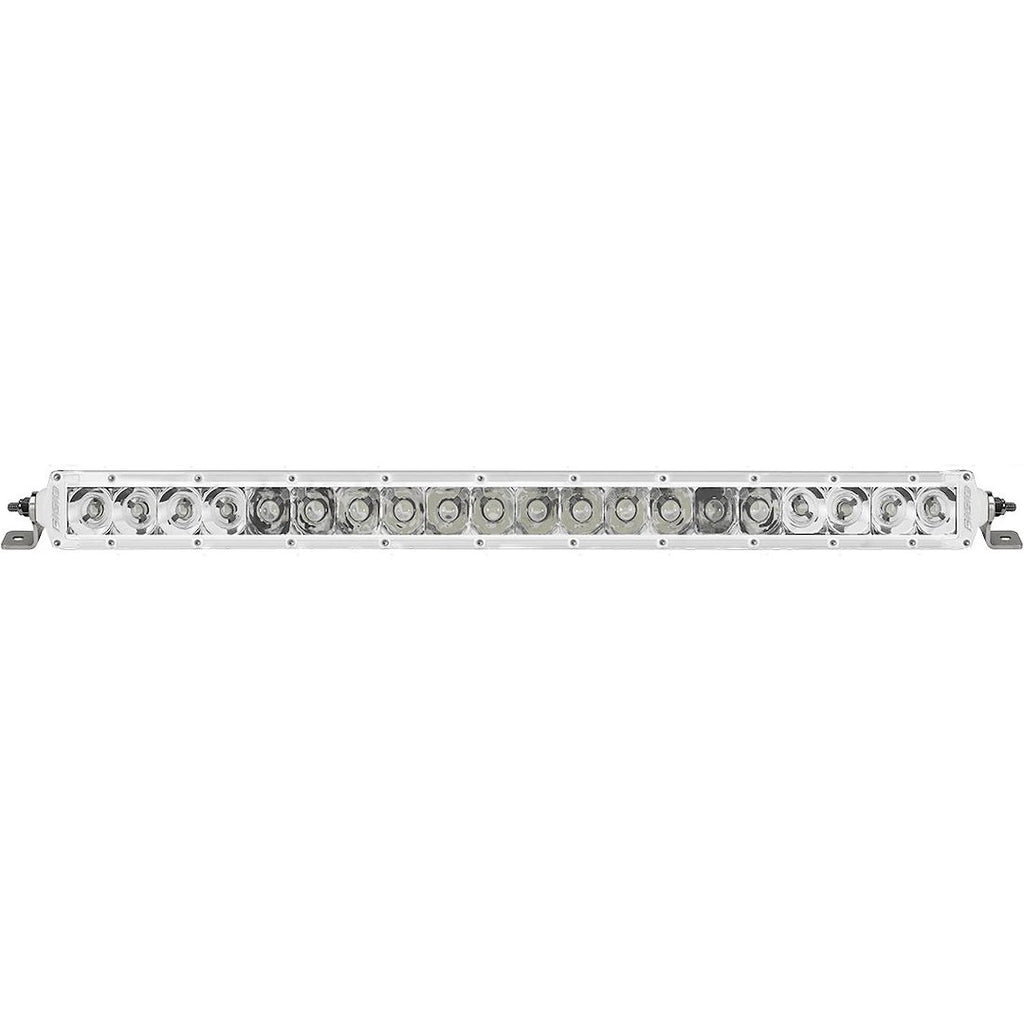

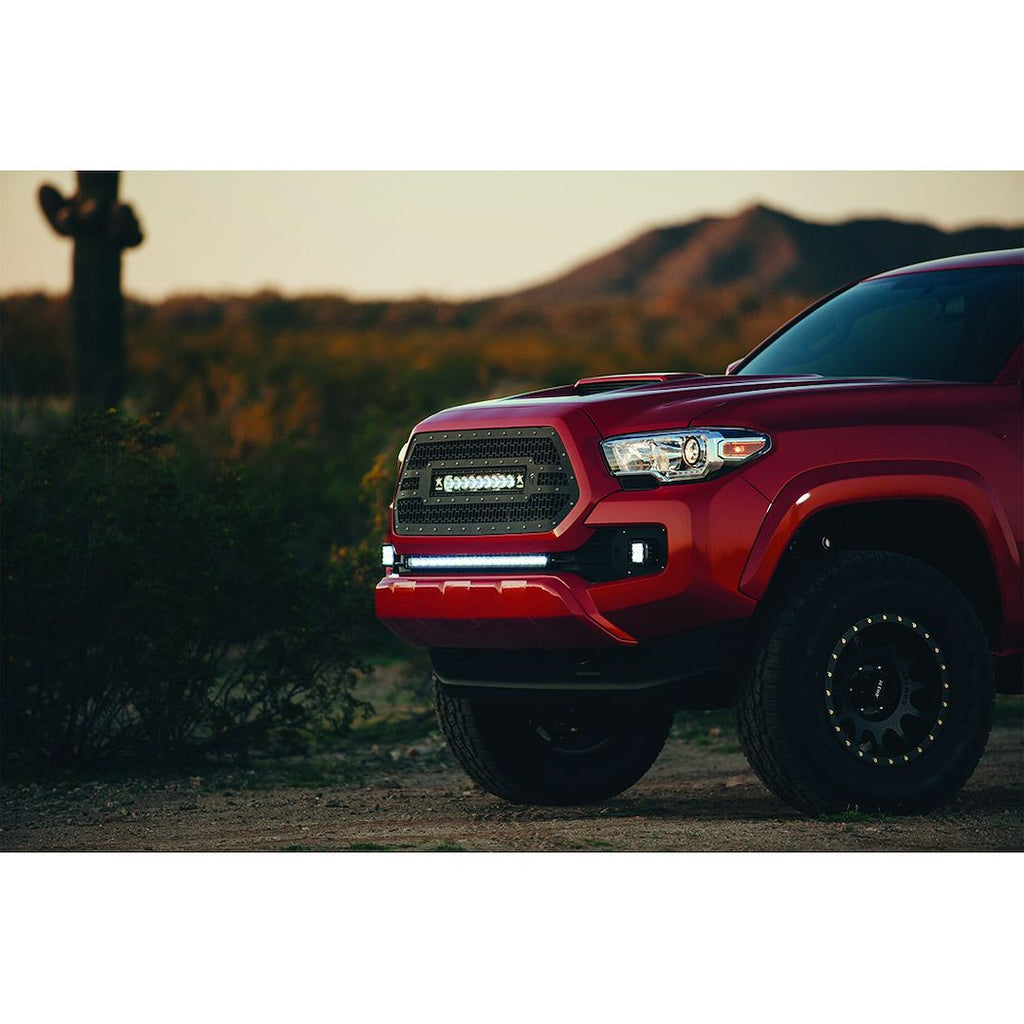

The Rigid Lighting SR-Series Pro LED Light Bar is engineered to deliver exceptional illumination in a compact design, measuring less than 2 inches in height. This 30 inch light bar features advanced LED technology that produces up to 18810 raw lumens, providing significant light output for various applications including off-road, industrial, agricultural, and marine use. The single row of LEDs utilizes either Hybrid or patented Specter optics, allowing for versatile beam patterns that effectively project light over long distances while maintaining low power consumption.
Constructed with a durable white aluminum housing and a clear polycarbonate lens, the SR-Series Pro is built to withstand harsh conditions. It is IP68 rated for dust and water ingress, ensuring reliable performance in challenging environments. The integrated thermal management system and reverse polarity protection enhance the longevity of the light bar, which boasts a lifespan of over 50,000 hours. Additionally, the light bar is compliant with SAE J575 standards for shock and vibration, making it suitable for rigorous applications.
With features such as a waterproof connector and a pressure equalizing vent, the SR-Series Pro is designed for optimal performance across a wide temperature range, from -40 to +145 degrees Fahrenheit. This light bar is hardwired and includes a harness and switch for easy installation, making it a practical choice for those seeking robust lighting solutions.
Features
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Impact Resistant Polycarbonate Lens
- Integrated Thermal Management System
- Reverse Polarity Protection
- IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
- Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
- SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
- Waterproof Connector
Specifications
- Manufacturer: Rigid Lighting
- Manufacturer Part Number: 330314
- Bulb Type: LED
- Style: Straight
- Length: 30 Inch
- Beam Type: Combo Beam Flood And Spot
- Number Of Rows: 1
- Light Color: White
- Housing Color: White
- Beam Angle (Deg): 18 Degree
- Lumens: 18810 Lumens
- Wattage: 160 Watt
- Voltage Rating: 9 To 36 Volt
- Ampere Rating At 12 Volts: 11.43 Amp
- Bulb Specifications: Clear LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Surface Mount
- Connection Type: Hard Wired
- Includes: With Harness/ Switch
- Estimated Install Time (Hours): 1.5
