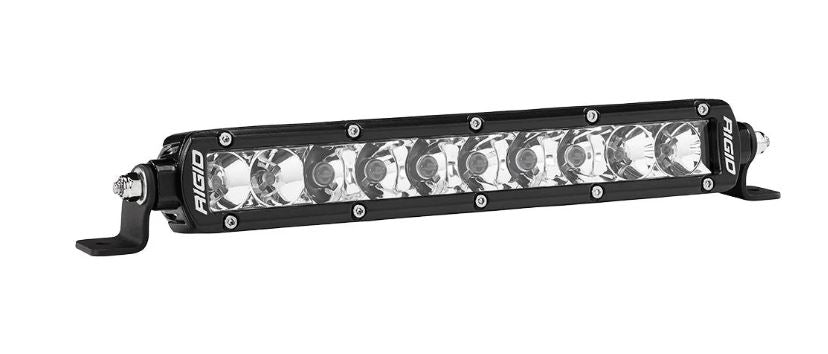

Rigid Lighting SR Series LED Light Bar (MPN: 910313)

High-performance 10 inch LED light bar with superior output and durability.

The Rigid Lighting SR Series LED Light Bar is engineered to deliver exceptional illumination in a compact design. Measuring just 10 inches in length, this light bar features a single row of 10 clear LED bulbs that produce an impressive 7920 raw lumens. With a combination flood and spot beam pattern, it is designed to project light over long distances while maintaining low power consumption, making it suitable for various applications including off-road vehicles, industrial, agricultural, and marine use.

Constructed with a durable black aluminum housing and an impact-resistant polycarbonate lens, the SR Series is built to withstand harsh conditions. It is IP68 rated for dust and water ingress, ensuring reliable performance in challenging environments. The integrated thermal management system and reverse polarity protection enhance its longevity, while the pressure equalizing vent allows for optimal operation across a wide temperature range from -40 to +145 degrees Fahrenheit.

This light bar is easy to install with a plug and play wiring harness included, along with a switch and rear cooling fins for efficient heat dissipation. The Rigid Lighting SR Series LED Light Bar combines advanced LED technology with robust construction, providing a reliable lighting solution that meets the demands of any user.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 910313
• Bulb Type: LED
• Style: Straight
• Length: 10 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 19.3 Degree
• Lumens: 7920 Lumens
• Wattage: 60 Watt
• Width: 3 Inch
• Height: 1.62 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 4.29 Amp
• Bulb Specifications: 10 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Surface Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Harness/ Switch/ Rear Cooling Fins
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2007-2018 Jeep Wrangler JK

Technical Documents

• 11-13836-A_-_E_SR-Series_PRO.pdf
