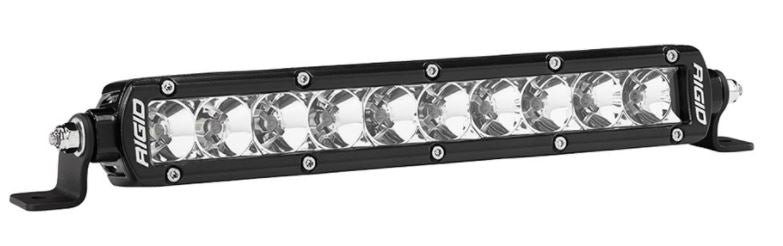

Rigid Lighting SR Series LED Light Bar (MPN: 910113)

High-performance 10 inch LED light bar with advanced optics and durability.

The Rigid Lighting SR Series LED Light Bar is a compact and powerful lighting solution designed for various applications including off-road vehicles, industrial, agricultural, and marine use. Measuring just under 2 inches in height, this 10 inch light bar features a single row of LEDs that deliver an impressive 7920 raw lumens output, making it suitable for projecting light over long distances while maintaining low power consumption. The flood beam pattern ensures a wide spread of light, enhancing visibility in challenging conditions.

Constructed with a durable black aluminum housing and an impact-resistant polycarbonate lens, the SR Series is built to withstand harsh environments. It is IP68 rated for dust and water ingress, ensuring reliable performance in wet conditions. The integrated thermal management system and reverse polarity protection further enhance the longevity and reliability of the light bar, which boasts a lifespan of over 50,000 hours.

The light bar is designed for easy installation with a plug and play wiring harness included, along with a switch and rear cooling fins for optimal heat dissipation. With its robust construction and advanced LED technology, the Rigid Lighting SR Series LED Light Bar is engineered to provide efficient and effective lighting solutions for a variety of demanding applications.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 910113
• Bulb Type: LED
• Style: Straight
• Length: 10 Inch
• Beam Type: Flood Beam
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 17.2 Degree
• Lumens: 7920 Lumens
• Wattage: 61 Watt
• Width: 3 Inch
• Height: 1.62 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 4.21 Amp
• Bulb Specifications: Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Surface Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Harness/ Switch/ Rear Cooling Fins
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2007-2018 Jeep Wrangler JK

Technical Documents

• 11-13836-A_-_E_SR-Series_PRO.pdf
