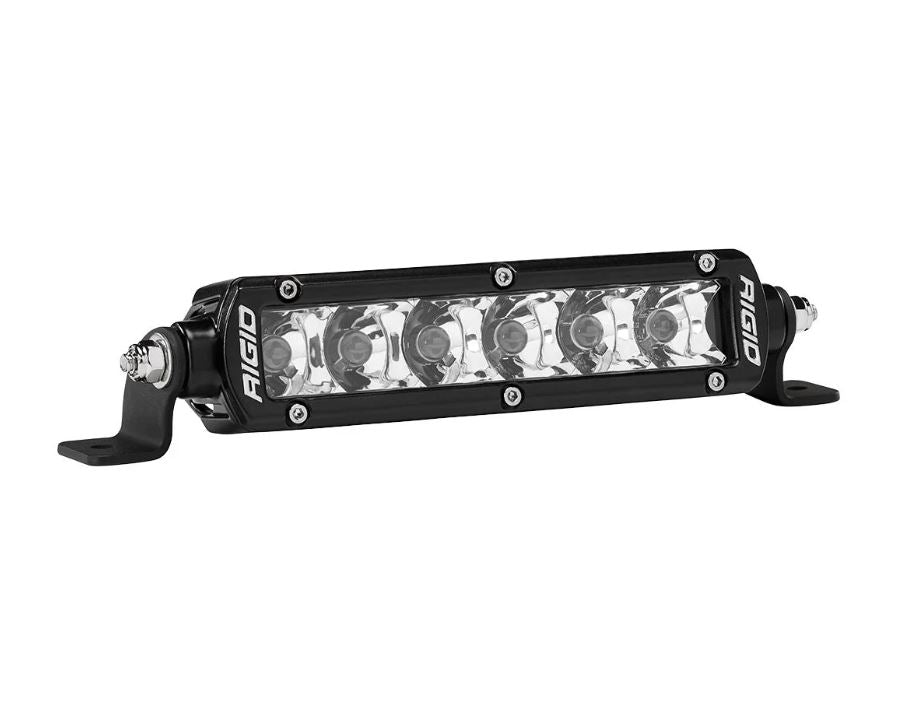

Rigid Lighting SR Series LED Light Bar (MPN: 906213)

High-performance 6 inch LED light bar with superior durability and efficiency.

The Rigid Lighting SR Series LED Light Bar is engineered to deliver exceptional illumination in a compact design. Measuring just 6 inches in length, this light bar features a single row of six clear LED bulbs that produce an impressive 4752 raw lumens, making it suitable for a variety of applications including off-road vehicles, industrial settings, and marine use. The spot beam pattern ensures focused light projection at extended distances while maintaining low power consumption with a 48 watt draw and 3.36 amp rating.

Constructed with a durable black aluminum housing and an impact-resistant polycarbonate lens, the SR Series is built to withstand harsh conditions. It is IP68 rated for dust and water ingress, ensuring reliable performance in challenging environments. The integrated thermal management system and reverse polarity protection enhance the longevity of the light bar, which boasts a lifespan of over 50,000 hours.

This light bar is designed for surface mounting and comes complete with a plug and play wiring harness, switch, and rear cooling fins for optimal heat dissipation. With a beam angle of 16.2 degrees, the SR Series provides precise lighting where it is needed most. The Rigid Lighting SR Series LED Light Bar combines advanced technology with robust construction, making it a dependable choice for demanding lighting needs.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 906213
• Bulb Type: LED
• Style: Straight
• Length: 6 Inch
• Beam Type: Spot Beam
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 16.2 Degree
• Lumens: 4752 Lumens
• Wattage: 48 Watt
• Width: 3 Inch
• Height: 1.62 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 3.36 Amp
• Bulb Specifications: 6 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Surface Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Harness/ Switch/ Rear Cooling Fins
• Estimated Install Time (Hours): 1.5

Technical Documents

• 11-13836-A_-_E_SR-Series_PRO.pdf
