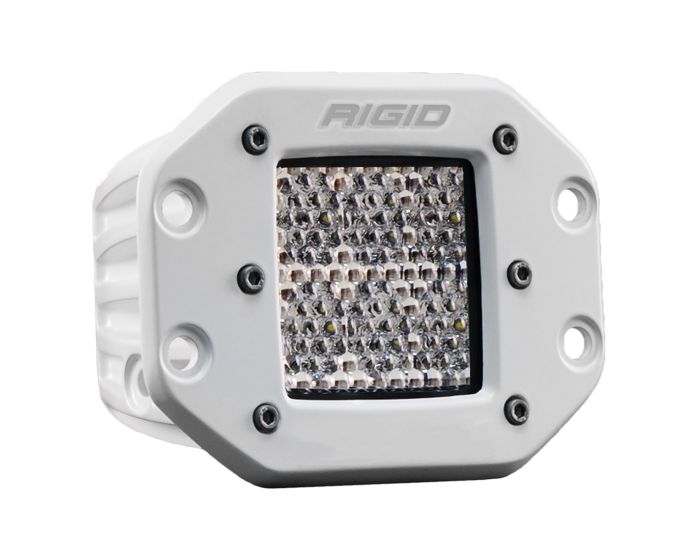

Rigid Lighting Marine D-Series LED Bulb (MPN: 611513)

High-performance LED lighting for marine and off-road applications.

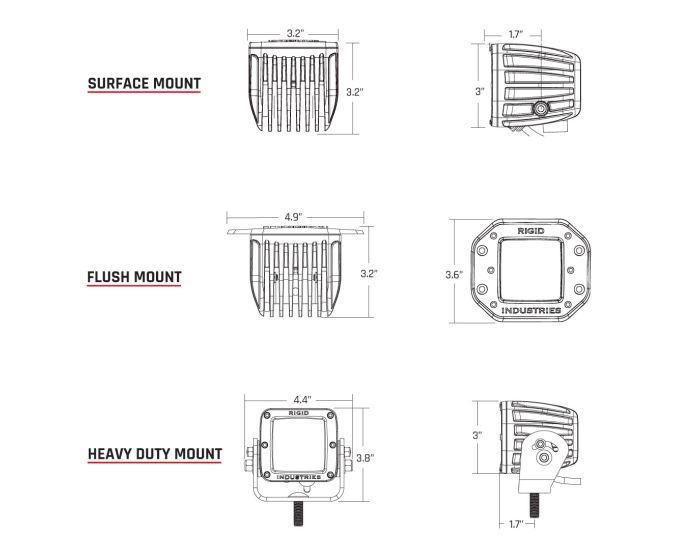

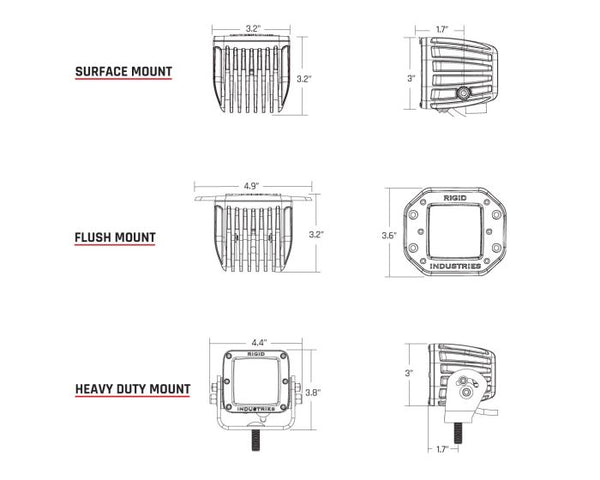

The Rigid Lighting Marine D-Series LED Bulb is engineered for versatility and durability in demanding environments. This compact lighting solution features a rectangular design measuring 4-13/16 inches in length and 3-5/8 inches in height, making it suitable for various mounting applications. With a powerful output of 3168 raw lumens and a diffused flood beam, it provides excellent visibility in low-light conditions, enhancing safety and performance during nighttime operations.

Constructed with a robust powder-coated white housing and an unbreakable clear Lexan lens, the D-Series LED Bulb is designed to withstand harsh marine conditions. It incorporates an integrated thermal management system and is rated IP68 for dust and water ingress, ensuring reliable operation in challenging environments. The unit operates efficiently within a voltage range of 9 to 36 volts and draws 2.14 amps at 12 volts, making it compatible with a wide range of vehicles and applications.

The D-Series LED Bulb is equipped with advanced features such as reverse polarity protection and a pressure equalizing vent, which contribute to its longevity and performance. With a lifespan exceeding 50,000 hours, this lighting solution is built to last, providing dependable illumination for off-road and marine use. The flush mount design allows for seamless integration into various setups, making it a practical choice for those seeking high-quality lighting solutions.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 611513
• Shape: Rectangular
• Beam Type: Flood Beam
• Diameter: Not Applicable
• Height/ Width: 3-5/8 Inch Height X 4-7/8 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Single
• Universality: Semi-Universal
• Depth: 3-3/16 Inch
• Wattage: 30 Watt
• Voltage Rating: 9 To 36 Volt
• Mounting Style: Flush Mount
• Ampere Rating At 12 Volts: 2.14 Amp
• Lumens: 3168 Lumens
• Bulb Specifications: 4 Clear LED Bulbs
• Lens Material: Lexan
• Housing Color: White
• Housing Material: Aluminum
• Includes: With Mounting Hardware/U-Shape Bracket/ Vibration Isolator/ Harness With Switch/ Deutsch Connector
• Estimated Install Time (Hours): 1.5

Technical Documents

• RIGID_SR-Q_D-Series_D-SS_Instructions.pdf
