High-performance 10 inch LED light bar with versatile beam options.

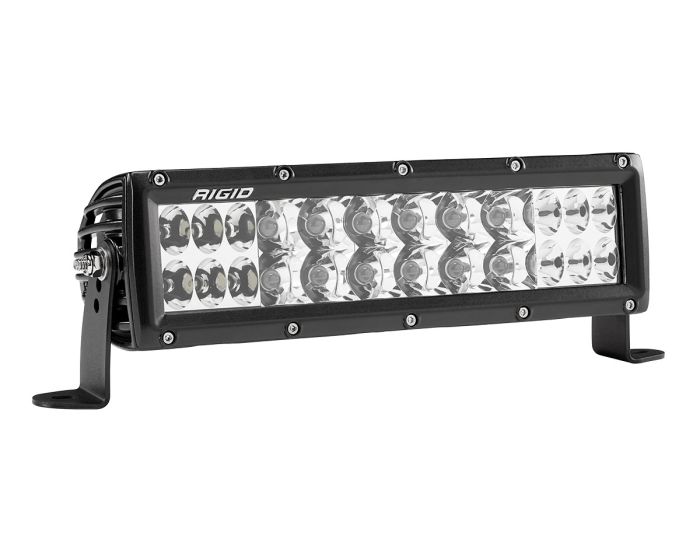

The Rigid Lighting E-Series LED Light Bar is a robust lighting solution designed for various applications including off-road, power sports, marine, and automotive use. Measuring 10 inches in length, this light bar features a powerful combo beam that combines driving and spot capabilities, delivering an impressive 19008 raw lumens. Constructed with a durable black housing and a clear polycarbonate lens, it is built to withstand harsh conditions while providing optimal visibility.
Recent enhancements in LED technology have increased the E-Series PRO's output by up to 111 percent, making it one of the brightest and most efficient light bars available. The integrated thermal management system ensures longevity, while the IP68 rating guarantees protection against dust and water ingress. With features such as reverse polarity protection and a pressure equalizing vent, this light bar is engineered for reliability and performance.
The E-Series is equipped with a complete installation kit, including a wiring harness, switch, Deutsch connector, and mounting hardware. Its versatile design allows for easy surface mounting, making it suitable for a wide range of vehicles and applications. With a lifespan exceeding 50000 hours, the Rigid Lighting E-Series LED Light Bar is a dependable choice for those seeking high-quality illumination.
Features
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Impact Resistant Polycarbonate Lens
- Integrated Thermal Management System
- Reverse Polarity Protection
- IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
- Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
- SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
- Waterproof Connector
Specifications
- Manufacturer: Rigid Lighting
- Manufacturer Part Number: 178313
- Bulb Type: LED
- Style: Straight
- Length: 10 Inch
- Beam Type: Combo Beam Driving And Spot
- Number Of Rows: 2
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Beam Angle (Deg): 27.7 Degree
- Lumens: 19008 Lumens
- Wattage: 174 Watt

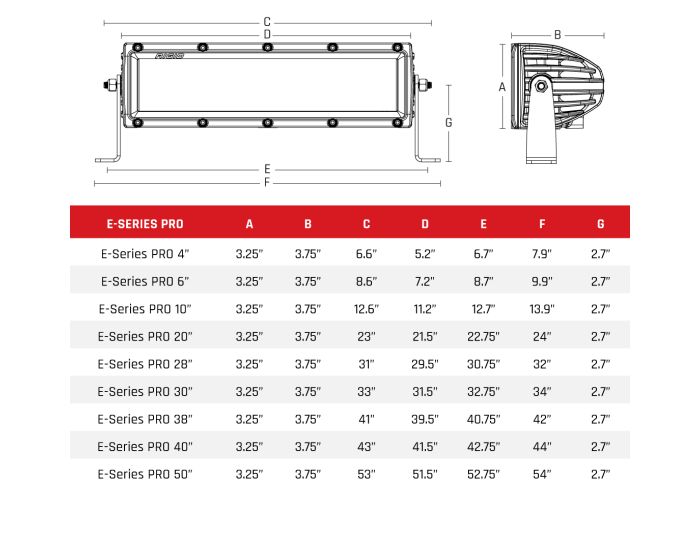

- Width: 3-3/4 Inch
- Height: 3-1/4 Inch
- Voltage Rating: 9 To 36 Volt
- Ampere Rating At 12 Volts: 12.43 Amp
- Bulb Specifications: 20 Clear LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 13.3 Inch
- Mounting Style: Surface Mount
- Connection Type: Deutsch Connector
- Includes: With Wiring Harness/ Switch/ Deutsch Connector/ Mounting Hardware And Pressure Equalizing Vent
- Estimated Install Time (Hours): 1.5
