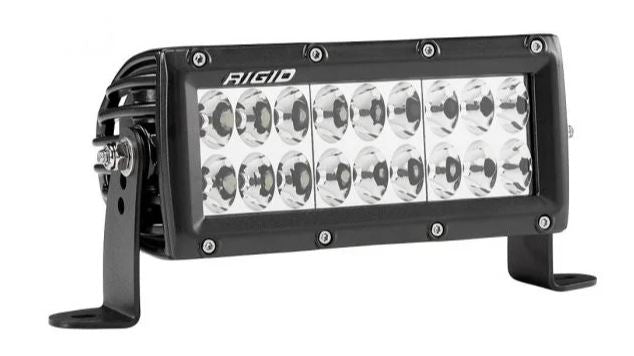

Rigid Lighting E-Series LED Light Bar (MPN: 175613)

High-performance 6 inch LED light bar with advanced features and durability.

The Rigid Lighting E-Series LED Light Bar is a versatile lighting solution designed for various applications including off-road, power sports, marine, and automotive use. With a compact 6 inch length and a powerful output of 14256 raw lumens, this light bar utilizes advanced LED technology to deliver exceptional brightness and efficiency. The driving beam pattern ensures optimal visibility, making it suitable for a range of environments and conditions.

Constructed with a durable black housing and an impact-resistant polycarbonate lens, the E-Series is built to withstand harsh conditions. It features a UV resistant powder coat finish and an integrated thermal management system to enhance longevity and performance. The light bar is IP68 rated for dust and water ingress, ensuring reliable operation in challenging environments.

The E-Series LED Light Bar includes essential components such as a wiring harness, switch, Deutsch connector, and mounting hardware, facilitating straightforward installation. With a lifespan exceeding 50000 hours and robust protection against reverse polarity, shock, and vibration, this light bar is engineered for durability and reliability. The Rigid Lighting E-Series is a top choice for those seeking high-quality lighting solutions.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 175613
• Bulb Type: LED
• Style: Straight
• Length: 6 Inch
• Beam Type: Driving Beam
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 49.5 Degree
• Lumens: 14256 Lumens
• Wattage: 160 Watt
• Width: 3-3/4 Inch
• Height: 3-1/4 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 11.43 Amp
• Bulb Specifications: 12 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 7.9 Inch
• Mounting Style: Surface Mount
• Connection Type: Deutsch Connector
• Includes: With Wiring Harness/ Switch/ Deutsch Connector/ Mounting Hardware And Pressure Equalizing Vent
• Estimated Install Time (Hours): 1.5
