High-performance 30 inch LED light bar with versatile beam options.

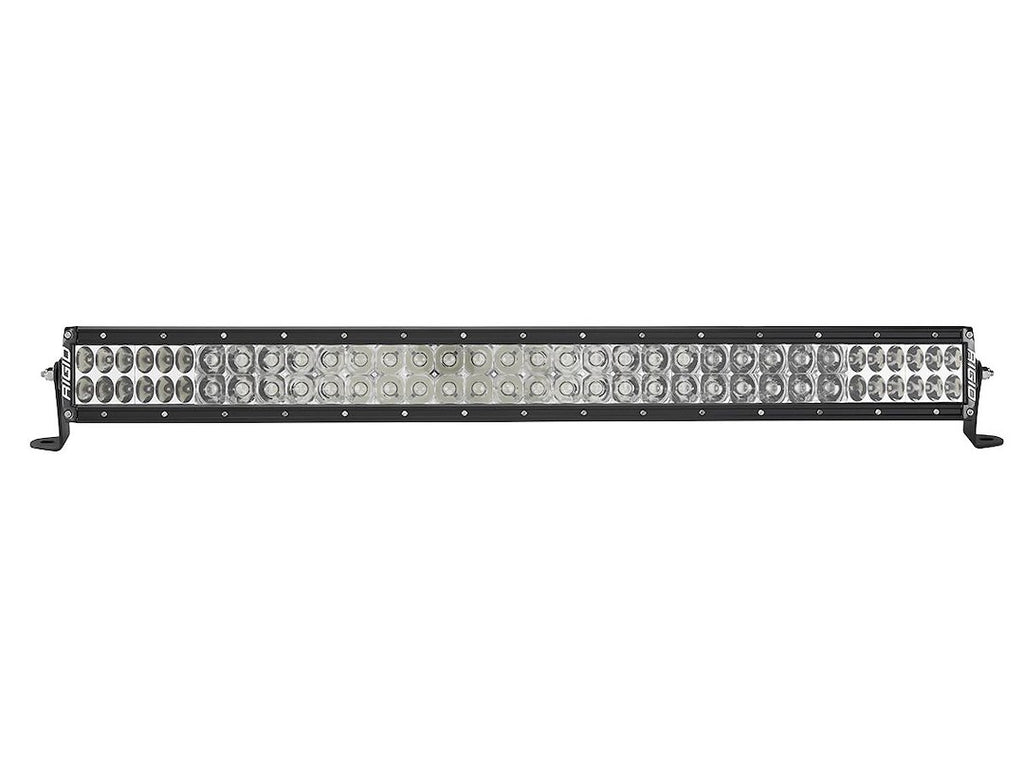

The Rigid Lighting E-Series LED Light Bar is a robust lighting solution designed for various applications including off-road, power sports, marine, and automotive use. Measuring 30 inches in length, this light bar features a combination beam of driving and spot lights, delivering an impressive 37060 raw lumens for superior visibility. Constructed with a durable black aluminum housing and an impact-resistant polycarbonate lens, it is built to withstand harsh conditions while providing reliable performance.
Recent enhancements in LED technology have increased the E-Series PRO's output by up to 111 percent, making it one of the brightest and most efficient light bars available. The integrated thermal management system ensures optimal performance, while the IP68 rating guarantees protection against dust and water ingress. With features such as reverse polarity protection and a pressure equalizing vent, this light bar is engineered for longevity and reliability.
The E-Series is equipped with a complete installation kit, including a wiring harness, switch, open leads, and mounting hardware, facilitating a straightforward setup. Its versatility and high-grade materials make it suitable for a wide range of uses, ensuring that you can own the night with confidence.
Features
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Impact Resistant Polycarbonate Lens
- Integrated Thermal Management System
- Reverse Polarity Protection
- IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
- Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
- SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
- Waterproof Connector
Specifications
- Manufacturer: Rigid Lighting
- Manufacturer Part Number: 132313
- Bulb Type: LED
- Style: Straight
- Length: 30 Inch
- Beam Type: Combo Beam Driving And Spot
- Number Of Rows: 2
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Beam Angle (Deg): 23 Degree
- Lumens: 37060 Lumens
- Wattage: 470 Watt
- Width: 3-3/4 Inch
- Height: 3-1/4 Inch
- Voltage Rating: 9 To 36 Volt
- Ampere Rating At 12 Volts: 34 Amp
- Bulb Specifications: 60 Clear LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 34 Inch
- Mounting Style: Surface Mount
- Connection Type: Hard Wired
- Includes: With Wiring Harness/ Switch/ Open Leads/ Mounting Hardware And Pressure Equalizing Vent
- Estimated Install Time (Hours): 1.5
